Indoor Fiber Jumper Cables
FOCC offers singlemode and multimode, simplex and duplex Indoor Fiber Jumper Cables manufactured to tight internal specifications that exceed industry-accepted standards. Fiber jumper assemblies are used in a variety of carrier networks and private network environments. The key to manufacturing high-performance fiber jumper assemblies is controlling polish radius, apex offset and fiber undercut. FOCC monitors its automated polishing process to exceed industry specifications for insertion and return loss, ensuring a top-quality product.

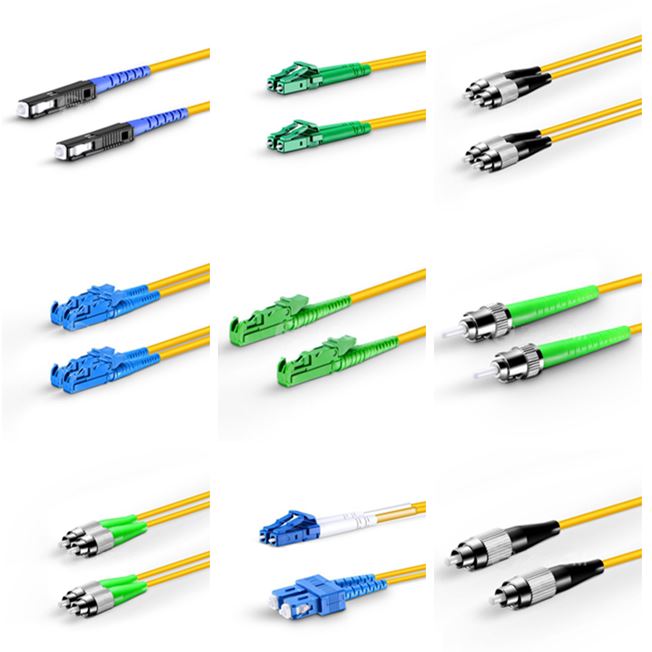

Terminations are designed and tested to Telcordia GR-326 FOCC® FiberDeep® Guarantee: 0.2 dB insertion loss or less, exceeding industry standards Supports industry standard singlemode and multimode connectors Singlemode and multimode and hybrid cables available Each fiber jumper is individually covered with an outer jacket for added protection Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm Riser and Plenum rated jacket options available Available in simplex, dual-round and dual zip-cord configurations Compact jacket design minimizes cable pile up Industry standard terminations include ST, SC, FC, LC (ask a FOCC representative for other connector availability) Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network Environmentally stable, low-insertion loss, minimal back reflection All assemblies are 100% testedTechnical Specifications
Specification Description Core Size and Type Singlemode and multimode Fiber Count Simplex (1-fiber) and duplex (2-fiber) Jacket O.D. 900 μm, 1.6 mm, 2.0 mm, 3.0 mm Cable Types Indoor Riser, Indoor Plenum Connector Types SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC Operating Temperature -40°C to 85°C (-40°F to 185°F) Minimum Performance Specifications for Terminated Singlemode Connectors
Connector Type Ferrule Material Polish Type Ins. Loss Typical (dB) Max Ins. Loss (dB) Min. Ret. Loss (dB) ST Ceramic UPC 0.15 0.20 55.00 SC Ceramic UPC 0.15 0.20 55.00 FC Ceramic UPC 0.15 0.20 55.00 LC Ceramic UPC 0.15 0.20 55.00 SC Ceramic APC 0.15 0.20 65.00 FC Ceramic APC 0.15 0.20 65.00 LC Ceramic APC 0.15 0.20 65.00 Minimum Performance Specifications for Terminated Multimode Connectors
Connector Type Ferrule Material Polish Type Ins. Loss Typical (dB) Max. Ins. Loss (dB) ST Ceramic PC 0.25 ≤0.50 SC Ceramic PC 0.25 ≤0.50 FC Ceramic PC 0.25 ≤0.50 LC Ceramic PC 0.25 ≤0.50 Features & Benefits
