Fiber Tool Kits for Termination, Splicing, Testing & FTTH Installation
Fiber optic tool kits and the individual field tools that go inside them: high precision fiber cleavers, a visual fault locator, a handheld optical power meter, buffer tube and jacket strippers, an optical fiber identifier, a fiber end face detector and connector cleaning supplies. Choose a ready-to-go kit, or build a custom fiber tool kit around the connector types, cable sizes and job tasks your crews actually work on.
Termination · Splicing · Testing · Cleaning
Kit types
SC · LC · FC · ST · MU · MPO/MTP
Connectors
UPC · APC
Polish
250 µm · 900 µm · 2.0 mm · 3.0 mm · FTTH drop
Fiber & cable
What Is Fiber Optic Tool kits?
Fiber Optic Tool kits contains go to equipment. A must for any professional technician. With the correct product selection in portable cases, the technician can do the job correctly, easily and keep the network running efficiently. Having the right test equipment in your kit saves time and money. It also ensures that the fiber network installation has minimal reflectance for faster speeds. We offer standard ready to go kits or we can custom build a tool kit to your specifications. Whether you are conducting a fiber optic test, installing fiber optic connectors or performing a fiber optic fusion splice, these tool kits will make it easier for the technician to do their job the right way. Rugged portable cases help keep those tools and equipment in order and easy to bring to the work area.
Fiber Optic Termination Tool Kits
Kit is ideal and utility for optical fiber cable construction. It is widely used in fiber optical fusion splicing/termination work and maintenance for fiber optic telecommunication. It includes all kinds of the most frequent used tools, which cut kevlar and slit jacket, and most of the hand tools are necessary for optical fiber fusion splicing.
FOCC-Fiber Tool Kits and Field Tools
-
![Handheld Optical Power Meter]()
Handheld Optical Power MeterA compact optical power meter designed for fiber optic installation, maintenance, and troubleshooting. It supports absolute and relative power measurement and uses an InGaAs detector for stable daily -

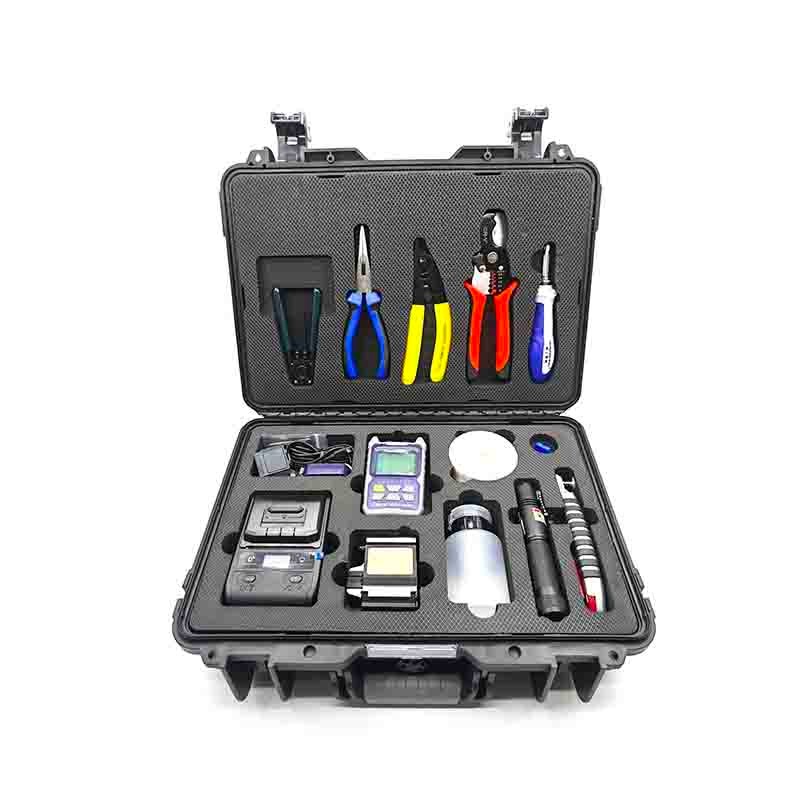

![Complete Fiber Optic Installation & Testing Tool Kit]()
Complete Fiber Optic Installation & Testing Tool KitThis integrated toolkit, designed for field engineers and network contractors, enables full lifecycle execution—including installation, verification, and maintenance—reducing rework rates and -
![Fiber Cleaver Pen For Precision Fiber Cutting in Fie]()
Fiber Cleaver Pen For Precision Fiber Cutting in FieFOCC High-Precision Fiber Cleaver Pen features a carbide or ruby blade with excellent sharpness and wear resistance, achieving a cleaving angle of approximately 0.5°.The tool is designed with a -
![Handheld Optical Fiber Identifier]()
Handheld Optical Fiber IdentifierFOCC Handheld Optical Fiber Identifier Price For Sale & Specifications -
![Fiber Optic Buffer Tube Stripper]()
Fiber Optic Buffer Tube StripperThis Fiber Optic Multi Cable Tube Stripper/Slitter has adjustable blades that you can set for any depth to ensure nick-free jacket entry into fiber optic and coax cable. -
![Fiber Visual Fault Locator]()
Fiber Visual Fault LocatorA VFL (Visual Fault Locator) is a cable continuity tester that locates fibers, verifies cable continuity and polarity on any network. -
![Handheld Fiber End Face Detector]()
Handheld Fiber End Face DetectorThis is a portable fiber end face detector that magnifies the image 200 times to clearly judge the end face condition. -
![LC Fiber Connector Cleaning Cotton Swab]()
LC Fiber Connector Cleaning Cotton SwabIt is a 3-inch ultra-fine cotton swab. After special cutting, the paper shaft is rolled up with a small flat top head with great toughness, which enables it to efficiently remove the attachments on -
![Visual Fault Locator]()
Visual Fault LocatorThe Visual Fault Locator is an efficient and low-cost basic fiber testing tool that provides a visible method of locating fiber faults and identifying fibers in an optical network during and after -
![Sharp Cleaver Blade]()
Sharp Cleaver BladeReplacement Cleaver Blades Our replacement cleaver blades last just as long as the original equipment parts they replace but for half the price. Each cleaver blade is manufactured to exceed the -
![High Precision Cleaver HF-06]()
High Precision Cleaver HF-06Key Features : ●Easy-step operation to complete the cleaving and collection of waste fiber shards. ● Convenient and quick to operate. Either hand-held or on table/worktop surfaces. ● Very easy fiber -
![High Precision Cleaver HF-09]()
High Precision Cleaver HF-09Overview: Fiber Optical Cleaver of HF-09 is a new generation product ,it's extremely light and reliable cleaver for the construction of optical network , Designed for excellent portability, the
What Is Included in a Fiber Optic Tool Kit
A fiber optic tool kit is organised around one workflow: open the cable, expose and clean the fiber, cleave it, join it, then prove the link.
The table below groups the tools by that sequence so you can check a kit against the jobs your technicians do rather than against a part count.
| Stage | Tools | What it does on site |
|---|---|---|
| Cable access | Cable slitter, jacket stripper, buffer tube stripper, Kevlar scissors, cable cutter | Opens the outer jacket and loose tube and cuts the aramid yarn without nicking the fiber underneath. |
| Fiber preparation | Three-hole fiber stripper, FTTH drop cable stripping tool, 0.9 / 2.0 / 3.0 mm fiber optic cable stripper | Removes the 250 µm coating and 900 µm buffer down to bare 125 µm cladding. |
| Cleaving | Fiber cleaver pen, high precision fiber cleaver, replacement cleaver blade | Produces the flat, near-90° end face that fusion splicing and mechanical connectors depend on. |
| Joining | Fusion splicer or field assembly connectors, splice protection sleeves, crimp tool | Joins the prepared fiber by fusion splice, mechanical splice or pre-polished fast connector. |
| Cleaning & inspection | Alcohol dispenser, lint-free wipes, one-click cleaner, LC fiber connector cleaning cotton swab, fiber end face detector | Removes contamination from ferrules and bulkheads and confirms the end face before mating. |
| Test & verification | Visual fault locator, handheld optical power meter, optical fiber identifier | Traces fibers, checks continuity and polarity, and measures insertion loss on the finished link. |
| Handling & storage | Fiber disposal container, tweezers, safety glasses, marker, portable tool case | Keeps cleaved fiber scrap controlled and the kit organised between jobs. |
Compare Fiber Tool Kits and Tools
| Item | Category | Key specification | Fusion splicing | Fast connector / mechanical | Link verification |
|---|---|---|---|---|---|
| Complete Installation & Testing Tool Kit | Complete kit | Install + verify + maintain | Yes | Yes | Yes |
| Fiber Cleaver Pen | Cleaver | Carbide/ruby blade · ≈0.5° cleave | Yes | Yes | — |
| High Precision Cleaver HF-06 | Cleaver | One-step cleave + waste collection | Yes | Yes | — |
| High Precision Cleaver HF-09 | Cleaver | Ultra-light, high portability | Yes | Yes | — |
| Buffer Tube Stripper | Stripper | Adjustable depth · fiber + coax | Yes | Yes | — |
| Visual Fault Locator | Test | Continuity, polarity, fiber tracing | — | — | Yes |
| Handheld Optical Power Meter | Test | InGaAs · absolute + relative power | — | — | Yes |
| Optical Fiber Identifier FOCC3306D | Test | Non-destructive ID + VFL module | — | — | Yes |
| Fiber End Face Detector | Inspection | 200× magnification | Yes | Yes | Yes |
| LC Cleaning Cotton Swab | Consumable | 3 in · flat top head | Yes | Yes | Yes |
The cleavers differ mainly in format and how waste fiber is handled; the testers differ in what they can prove about the link.
How to Choose a Fiber Optic Tool Kit
By the work the crew actually does
A fusion splicing tool kit is built around fiber preparation and a high precision cleaver.
A fiber optic termination tool kit adds the tools and consumables needed to fit connectors on site.
FTTH installation
Drop cable stripping, cleaving and a VFL for the last-mile link into the subscriber premises.
Connector termination
Preparation tools plus pre-polished field assembly connectors for SC, LC, FC or ST.
Fusion splicing
Jacket and buffer removal, high precision cleaving, splice sleeve handling.
Testing & acceptance
Optical power meter, visual fault locator and fiber identifier for continuity and loss.
Cleaning & inspection
Swabs, wipes and an end face detector to keep insertion loss and back reflection down.
Emergency repair
A compact case that can reopen a cable, re-cleave, re-join and prove the repair on the same visit.
By connector type
The connector decides the cleaning accessories, the ferrule size the inspection scope needs to accept, and which field assembly connectors belong in the case. SC, LC, FC, ST, MU and MPO fiber optic connectors all sit on either a 2.5 mm or 1.25 mm ferrule, and SC/APC and SC/UPC polish types are not interchangeable at the cleave angle. If the kit will be used on LC connectors for 0.9, 2.0 and 3.0 mm cable, the swabs and one-click cleaner must be the 1.25 mm variants.
By fiber and cable size
Strippers are cut for specific diameters, so list the cable the crew handles before choosing: 250 µm coated fiber, 900 µm tight buffer, 2.0 mm and 3.0 mm jacketed cable, and flat FTTH drop cable. A kit that only strips 900 µm will stall the first time a technician opens a drop cable at a fiber termination box.
By cleaver type
- Cleaver pen — smallest format, carbide or ruby blade, for quick field cleaves and fast connector work.
- High precision cleaver — bench or hand-held, tighter cleave angle control, with waste fiber collection for splice-grade end faces.
- Ribbon and MPO cleaving — multi-fiber work needs a dedicated MPO MTP fiber cleaver rather than a single-fiber tool.
- Blades are consumables — budget replacement cleaver blades per kit, not per year.
Where These Fiber Tool Kits Are Used
The same kit contents appear across very different jobs.
FTTH and FTTx deployment
Drop cable preparation and SC/APC fast connector or SC/UPC fast connector termination at the subscriber wall plate.
Telecom outside plant maintenance
Reopening aerial, duct and direct-buried cable for repair and re-splicing.
Data centre patching
End face inspection and cleaning on high-density LC and MPO panels before mating.
Campus and in-building cabling
Jacket entry, buffer removal and connector termination on tight-buffered distribution cable.
Emergency restoration
One portable case that can locate the fault, re-terminate and verify the link on the same visit.
Patch cord and pigtail assembly
Bench work using fiber strippers and accessories and fiber optic polishing film.
Custom-Built Fiber Optic Tool Kits
kits are supplied either ready to go or custom built to your specification. A custom fiber tool kit is defined by four things: the task list, the connector and cable types on the network, the case format, and the consumables that need restocking.
Tool list — chosen against the jobs the crew performs, not a fixed piece count.
Cleaver grade — cleaver pen for fast connector work, high precision cleaver for fusion splicing.
Test equipment — visual fault locator, optical power meter, fiber identifier and end face detector, included or omitted.
Case and foam — soft bag or hard carrying case with a foam insert cut to the tool list.
Branding — private label, logo printing and packaging for distributors.
Consumables programme — replacement cleaver blades, swabs, wipes and alcohol supplied as a repeat order.
How the Tools Are Used Together
Insertion loss problems are usually created before any tester is connected. The jacket is opened, the coating is stripped, the fiber is cleaved, and only then is it joined — each step decided the loss of the next one. The two routes for terminating fiber optic cable are a fusion splice or a pre-polished mechanical connector, and both begin with the same preparation tools in the same tool kit.
Before mating, contamination on the ferrule matters more than most technicians expect: a single particle on the core is enough to raise back reflection and scar the end face under pressure. That is why cleaning fiber optic connectors with swabs and lint-free wipes, then confirming the fiber end face under 200× magnification, belongs in the routine rather than in the troubleshooting stage.
For final proof, a visual fault locator shows breaks, tight bends and polarity errors over short spans, while an optical power meter gives the loss number. Long-haul link characterisation and event location still call for an optical time domain reflectometer, which is normally carried separately from the hand tool case.
Fiber Tool Kit FAQ
Q: What tools should be included in a fiber optic installation tool kit?
A: At minimum: a jacket stripper and cable slitter, a buffer tube stripper, a fiber stripper sized for 250 µm and 900 µm, Kevlar scissors, a fiber cleaver, cleaning swabs and wipes, a fiber disposal container and a visual fault locator. Installation and testing kits add an optical power meter and an end face detector.
Q: What is the difference between a termination kit and a splicing kit?
A: A splicing tool kit concentrates on fiber preparation — stripping and cleaving — because a fusion splicer makes the joint. A termination tool kit carries the same preparation tools plus what is needed to fit connectors on site, including field assembly connectors, crimping and cleaning supplies.
Q: Do the kits include a fiber cleaver?
A: Kits can be supplied with a cleaver pen or a high precision cleaver such as the HF-06, HF-08 or HF-09, depending on whether the work is fast connector termination or fusion splicing. Replacement cleaver blades are available separately as consumables.
Q: Can the same tools be used on single mode and multimode fiber?
A: Yes. Strippers and cleavers work on the physical fiber geometry, which is 125 µm cladding for both single mode and multimode. What changes with fiber type is the test equipment wavelength, not the hand tools.
Q: Which connector types do the kits support?
A: SC, LC, FC, ST, MU and MPO/MTP, in UPC and APC polish. Cleaning accessories are ferrule-specific, so specify 2.5 mm, 1.25 mm or MPO when the kit is configured.
Q: Which cable sizes can the strippers handle?
A: Specify the sizes on your network — 250 µm coated fiber, 900 µm tight buffer, 2.0 mm and 3.0 mm jacketed cable, and flat FTTH drop cable — and the stripper set is chosen to match. The buffer tube stripper uses adjustable blades and can also be set for coax.
Q: Does a fiber optic tool kit include a fusion splicer?
A: No. Tool kits cover the hand tools, cleaving, cleaning and basic test equipment. Fusion splicers are supplied separately because of their value and calibration requirements, but the kit contents are built around the splicer workflow.
Q: Can replacement consumables be ordered on their own?
A: Yes. Cleaver blades, cleaning cotton swabs, wipes and alcohol are stocked as individual items so a kit can be restocked rather than replaced.
Q: Can the tool kit be customised?
A: Yes. Standard ready-to-go kits are available, and kits can also be custom built to your specification, including the tool list, the cleaver grade, whether test equipment is included, and the case and foam insert.
Specify your fiber tool kit
Send the connector types, cable sizes and the tasks your technicians perform, and the kit will be quoted against that list — as a standard configuration or custom built.
