MTP/MPO Fiber Cable Assemblies for High-Density Network Deployment

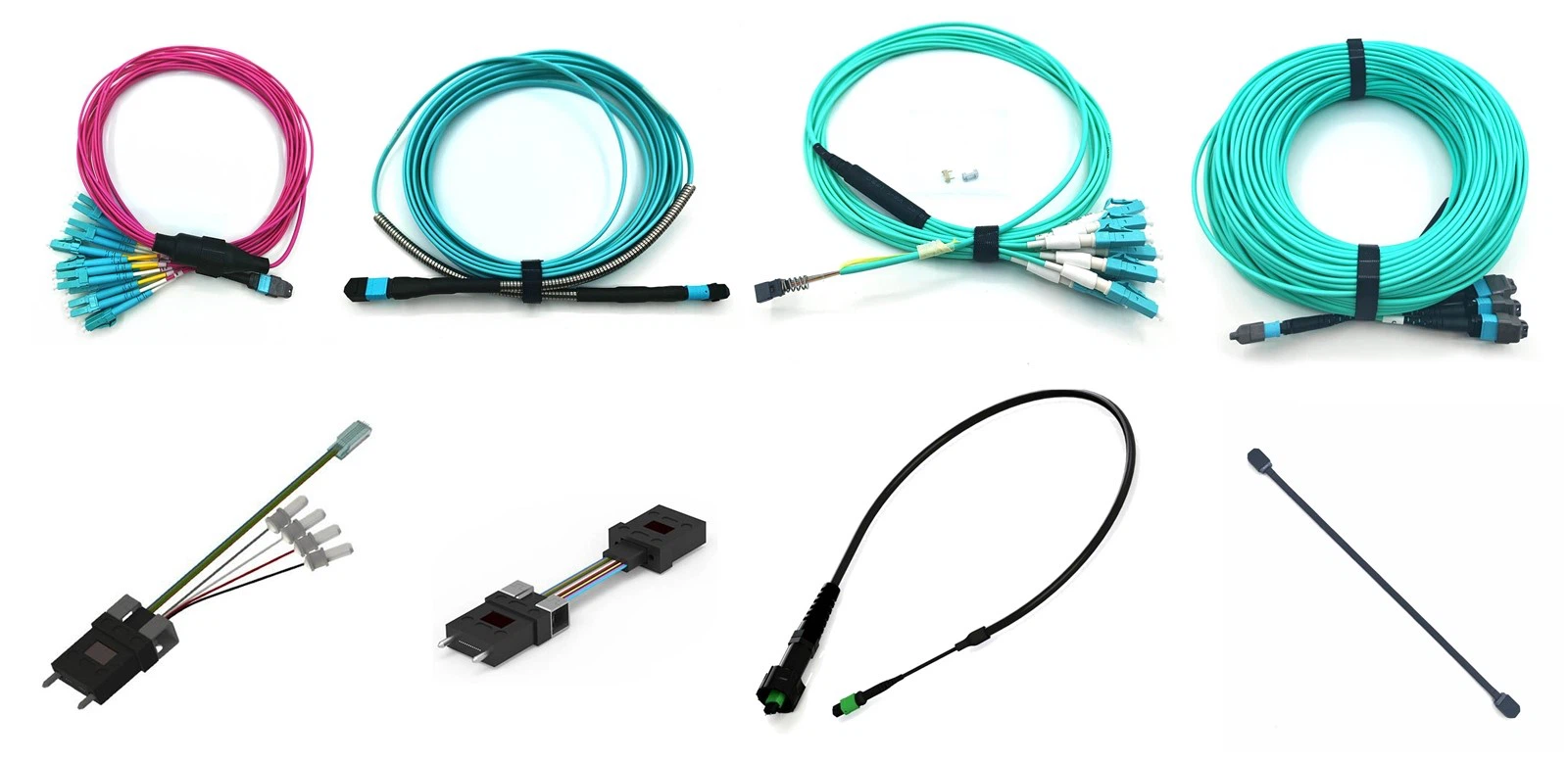

MTP/MPO cable assemblies help data centers and telecom rooms reduce cable congestion, simplify backbone cabling and prepare fiber links for parallel optics. Compared with traditional duplex LC cabling, one MTP/MPO interface can carry multiple fibers in a compact connector, making it suitable for switch-to-switch links, patch panel interconnection, cassette systems, transceiver testing and 40G to 400G/800G migration.
MPO Patch Cords Patch Cable Assemblies
Multi-fiber push on connectors, or MPOs for short, are fiber connectors comprised of multiple optical fibers. While defined as an array connector having more than 2 fibers, MPO Connectors are typically available with 8, 12 or 24 fibers for common data center and LAN applications. MTP® is an acronym for Multi-fiber Termination Push-on and is the standardized terminating end of a multi fiber cable that supports for all practical intents and purposes up to 24 fiber strands per connector.
MPO patch cord (Ribbon fan out Fiber patchcord, Ribbon mliti cable fan out) use MTP optical connector and MPO multi fiber type connectors, each one of the connector are used with ribbon type fiber optic cables which contain multi fiber in one single jacket, so that MPO fiber patch cables greatly save space and are very convenient to use. Based on single ferrule MT technology, the FOCC custom cable assemblies provide up to 72 fiber connections in a single point, reducing the physical space and labor requirement, while providing the same bandwidth capacity of a multi-fiber cable with individual fiber connector terminations per cable.
Typically with MT series like MTP fiber optic connectors and with multi fiber ribbon cables, these FOCC MPO fiber cable assemblies features multi fiber connection in the same single core fiber optic patch cord.
MTP/MPO Trunk Cables
Factory-terminated MTP/MPO-to-MTP/MPO trunks for high-density backbone links between racks, cabinets, patch panels, cassettes and switches.
- 12F, 24F, 48F, 72F, 96F and 144F
- OS2, OM3, OM4 and OM5
- Optional pulling eye and custom labeling
MTP/MPO Harness Cables
MTP/MPO-to-LC/SC/SN/MDC breakout assemblies for connecting parallel fiber trunks to duplex equipment ports and transceiver interfaces.
- MTP/MPO to 4x LC, 6x LC, 8x LC or 12x LC
- 0.9mm, 2.0mm or 3.0mm fanout legs
- Custom branch length and leg numbering
MTP/MPO Loopback Cables
High-density loopback assemblies for optical transceiver testing, switch port validation, production line testing and laboratory diagnostics.
- 12F, 16F, 24F and 48F loopback options
- OM3, OM4, OM5 and OS2 available
- For 40G/100G/400G test scenarios
MTP/MPO Cable Assembly Products
-
![MPO Male Fiber Optic Connector For High-Density Cabling]()
MPO Male Fiber Optic Connector For High-Density CablingA push-pull MPO connector assembly with guide pins, spring mechanism, metal crimp sleeve, ribbed boot, and protective dust cap. The supplied images show an aqua outer housing, black boot components, -
![96F 1U Fixed MPO-LC Fiber Optic Patch Panel For High-Density Rack Cabling]()
96F 1U Fixed MPO-LC Fiber Optic Patch Panel For High-Dens...This 96F 1U fixed MPO-LC fiber optic patch panel is designed for projects that need high fiber capacity in limited rack space. It combines front LC adapter patching, numbered 1-96 port identification -
![1U 24-Port Slide-out Fiber Optic Patch Panel]()
1U 24-Port Slide-out Fiber Optic Patch PanelThis 1U 24-port pull-out fiber optic patch panel is a freestanding, flexibly configurable rack-mount fiber optic cabling platform. It provides 24 adapter mounting positions and can be configured with -
![1U 24-Core Slide-out Duplex LC Pre-loaded Fiber Patch Panel]()
1U 24-Core Slide-out Duplex LC Pre-loaded Fiber Patch PanelThe 1U 24-Core Slide-out Duplex LC Fiber Patch Panel is designed for organized fiber termination, splicing, patching, and cable management in rack-mounted optical network systems. With a compact 1U -
![48F MTP Female PC OM4 24F Loopback Cable]()
48F MTP Female PC OM4 24F Loopback CableThe 48F MTP Female PC OM4 24F Loopback Cable is a high-density multimode fiber loopback assembly designed for optical transceiver testing, switch port validation, laboratory testing platforms, and -
![24 Fiber MTP Female OM4 Loopback Cable For Transceiver And Port Testing]()
24 Fiber MTP Female OM4 Loopback Cable For Transceiver An...The FOCC 24-fiber MTP female OM4 loopback cable is a purpose-built diagnostic tool engineered for high-density parallel optical testing in modern data centers and network environments. Unlike -
![12 Fiber MTP/MTP OM3 Patch Cable For High-Density Fiber Panel Connection]()
12 Fiber MTP/MTP OM3 Patch Cable For High-Density Fiber P...12-Fiber MTP/MTP OM3 High-Density Patch Cable is positioned as a fiber interconnection solution for high-density data centers and telecom backbone networks. It is suitable for building high-speed and -
![MMC-16 To 2×MTP-8 Breakout Cable]()
MMC-16 To 2×MTP-8 Breakout CableThe FOCC MMC-16 to 2×MTP-8 Breakout Cable is a next-generation VSFF (Very Small Form Factor)interconnect designed for high-density 400G/800G systems. -
![MMC-16 Fiber Optic Jumper | VSFF High-Density 16-Fiber Patch Cord For 400G/800G Data Centers]()
MMC-16 Fiber Optic Jumper | VSFF High-Density 16-Fiber Pa...The FOCC MMC-16 Fiber Optic Jumper is an ultra-compact, high-performance cable designed for next-generation 400G/800G optical interconnects. -
![24 Fibers MPO To MPO OM3 Trunk Cable]()
24 Fibers MPO To MPO OM3 Trunk Cable24 Fibers MPO to MPO OM3 Trunk Cable – High-Density Solution for Data Centers and Backbone Networks -
![24 MPO To MPO OM3 Conversion Cable]()
24 MPO To MPO OM3 Conversion CableMPO to MPO female connector OM3 3.0mm LSZH 24 core MPO trunk cable, custom length, custom branch count, 24F MPO (female connector) - MPO (female connector) 3.0mm LSZH patch cord/trunk cable. -
![MPO Push-pull Boot Connector]()
MPO Push-pull Boot ConnectorOur MPO connector boot can be pushed and pulled and has better flexibility.
Custom MTP/MPO Cable Assembly Specifications
The right MTP/MPO assembly depends on transceiver type, fiber count, polarity, connector gender,
cable route, link loss budget and installation environment.
| Parameter | Available Options | Application |
|---|---|---|
| Connector Interface | MTP® / MPO, male / female, pinned / unpinned, UPC / APC | Match connector gender and polish type with the transceiver, cassette or adapter panel. |
| Fiber Count | 8F, 12F, 16F, 24F, 32F, 48F, 72F, 96F, 144F | 12F is widely used for SR4 links; 16F is often used for SR8/DR8 style parallel optics; higher counts are used for backbone trunks. |
| Fiber Mode | OS2 single-mode, OM3, OM4, OM5 multimode | Choose OS2 for long-reach single-mode links and OM3/OM4/OM5 for short-reach multimode data center links. |
| Cable Type | Trunk, harness, breakout, fanout, conversion, loopback, cassette link cable | Select trunk for panel-to-panel backbone, harness for MTP/MPO-to-duplex breakout, and loopback for testing. |
| Polarity | Type A, Type B, Type C, custom polarity mapping | Polarity must align transmitter and receiver lanes across the full channel. |
| Loss Grade | Standard loss, low loss, elite low loss on request | Low-loss assemblies are recommended when the link includes multiple connection points or strict optical budgets. |
| Jacket & Rating | LSZH, OFNR, OFNP, PVC, CPR-rated options on request | Choose jacket type according to local fire code, data center policy and cable pathway requirements. |
| Length & Labeling | Standard lengths or project-specific lengths; custom labels, serial numbers and polarity marks | Accurate labeling reduces installation errors and improves future maintenance. |
| Testing | Insertion loss, return loss, polarity, end-face inspection, optional test report | Factory testing helps reduce field troubleshooting and verifies link readiness before shipment. |
MTP Fiber Cable and MPO Optics Purchasing
When upgrading data centers or building new fiber networks, MTP/MPO cable selection focuses on: fiber count, transmission mode (single-mode/multi-mode), and MPO connector types.
Fiber Count
Market products range from 4 to 72 fibers, with 12 fiber MPO being the most common for 40G/100G Ethernet and small-to-medium data centers.
Transmission Mode
Choose between single-mode (OS2) for long distances (10km+) or multi-mode (OM3/OM4) for shorter distances (100-150 meters) within data centers.
Connector Type
MTP/MPO connectors offer high density and performance. MTP is a premium version of MPO with lower insertion loss and longer life.
Critical Information
Warranty
Typically 1-3 years (don't believe "lifetime warranty" claims)
Delivery
3-7 business days, FOCC custom cable assemblies orders 2-3 weeks
Returns
Standard products returnable within 7 days if original packaging maintained
Price Protection
30-day price protection: refund available if price drops
Product Classification Quick Reference
Understand the different classifications of MTP fiber optic cable and MPO optical cable to make the right choice for your network.
12-Fiber Configuration
Most Common
40G/100G Ethernet Small-to-medium DC
Price: $45-$120
Advantages: Best compatibility, affordable
Limitation: Only supports up to 100G; choose 24-fiber if planning for 400G
24-Fiber Configuration
High Density
100G/400G Networks Medium-to-large DC
Price: $85-$280
Advantages: High density, saves space
Note: Equipment must support 24-fiber interfaces
48/72-Fiber Configuration
Ultra-High Density
Large DC Backbone
Price: $180-$450
Note: Complex installation, professional team recommended
By Transmission Mode
Multimode (OM3/OM4)
Distance
100-150 meters
Price
$50-$200
Scenario: Data center internal interconnection
Advantage: MPO transceivers cheap (1/3 of single-mode cost)
Single-mode (OS2)
Distance
10km+
Price
$65-$250
Scenario: Cross-building, campus networks
Disadvantage: Transceivers 2-3x more expensive
MTP vs MPO
MPO stands for Universal Multi-Core Fiber Push-In Connector Interface. MTP® is the brand name for high-performance MPO connectors. In practice, "MTP fiber optic cable" and "MPO fiber optic cable" are often used interchangeably, but the specific connector type, loss rating, male/female orientation, polishing method, and polarity should be confirmed before ordering.
MPO Cable Assembly
Suitable for high-density fiber links where multiple fibers need to be terminated in one compact connector. MPO assemblies are widely used in data centers, telecom rooms, patch panels and cassette systems.
- Common in 8F, 12F, 16F and 24F interfaces
- Available in single-mode and multimode
- Cost-effective for standard high-density cabling
MTP® Cable Assembly
We choose this connector when high-quality connector performance, better mechanical consistency, or specific low-loss requirements for demanding high-speed links are needed.
- Compatible with MPO-style infrastructure when specifications match
- Recommended for strict loss budgets and high-density channels
- Available for trunk, harness, conversion and loopback designs
By Polarity Type
Type A
Most Common
Straight-through polarity where fiber 1 connects to fiber 1, fiber 2 to fiber 2, etc.
Best for: MTP breakout scenarios
Type B
Reversed
Reversed polarity where fiber 1 connects to fiber 12, fiber 2 to fiber 11, etc.
Best for: Switch-to-switch direct connection
Type C
Pair-flipped
Pair-flipped polarity where fiber pairs are flipped (1↔2, 3↔4, etc.).
Best for: Maximum compatibility
Note: 5-10% more expensive but less error-prone
Male vs Female MTP/MPO
Male MTP/MPO connectors have alignment pins, while female connectors do not. A standard channel usually mates one pinned and one unpinned connector through an adapter. Do not connect two male connectors directly because pin damage may occur.
Custom Fiber Mapping
For cassettes, breakout links or migration projects, FOCC can provide project-specific fiber mapping, leg labels, serial labels and polarity verification before shipment.
Five Steps to Choose the Right Cable
Follow these steps to select the perfect MTP to MTP fiber or MPO to MPO cable for your specific needs.
Bandwidth Requirements
Current 40G, upgrading to 100G within 3 years
Go straight to 12-fiber OM4 or OS2
Planning for 100G or 400G
Consider 24-fiber
Uncertain about future
Conservative recommendation: 12-fiber OM4
Avoid This Pitfall: Choosing OM3 to save $500, then discovering insufficient distance during upgrade, requiring complete re-cabling costing $5,000 more.
Transmission Distance
<100m (between cabinets)
OM3 sufficient, OM4 better
100-300m
OM4 optimal
>500m (cross-building)
Must use single-mode
Large campus with expansion
Single-mode backbone, multimode access
Common Mistake: Thinking single-mode is more "advanced" and using it everywhere, then discovering transceiver costs are 3x higher with actual distance only 50m.
Cabinet Density
Cabinets spacious
12-fiber sufficient
Cabinets already full
24-fiber or higher density saves 30% space
New data center
Plan based on 5-year port growth
ROI Tip: High-density configurations cost 20-30% more initially, but can delay cabinet expansion by 1-2 years with high ROI.
Polarity Management
Standardized switches
Type B most straightforward
Need breakout fiber cable
Type A standard
Team unfamiliar with polarity
Recommend Type C, slightly more expensive but less error-prone
Budget and TCO
Cable cost is only 20-30% of total cost; transceivers, labor, and downtime losses are the major expenses.
| Cost Component | Considerations |
|---|---|
| Cable cost | Baseline |
| Transceivers | Multimode 2-3x cheaper |
| Installation labor | High-density 20-30% more |
| Future expansion | Adequate reserves save second MPO cabling costs |
| Downtime loss | 1-hour downtime in production may exceed entire material cost |
Fiber Cable Selector Tool
Answer a few questions to find the right MTP MTP cable or MPO fiber cables for your needs
1. What is your current and future bandwidth requirement?
Current 40G, no plans for 100G
Current 40G, upgrading to 100G within 3 years
Planning for 100G or 400G now
2. What is the maximum transmission distance?
<100m (between cabinets)
100-300m
>500m (cross-building or campus)
3. What is your cabinet density situation?
Cabinets are spacious
Cabinets are filling up
Cabinets are already full
4. What type of polarity management do you need?
Need breakout cables (Type A)
Standard switch-to-switch (Type B)
Maximum compatibility (Type C)
Your Recommended Cable:
Typical Configuration Recommendations
Find the right configuration based on your organization's size and specific needs.
Small Enterprise
50-100 ports
Solution:
12-fiber OM3 + Type B polarity
Budget:
$3,500-$6,000
Rationale:
Best cost-performance, completely sufficient within 100m
Tip: If upgrading to 100G within 3 years, spend 15% more for OM4
Medium Data Center
200-500 ports
Solution:
Core 24-fiber OM4 + Access 12-fiber OM4
Budget:
$25,000-$45,000
Rationale:
High density saves space, supports future 400G upgrade
Large Data Center
500+ ports
Solution:
Backbone 48/72-fiber OM4/single-mode + 24-fiber branches
Budget:
$150,000+ (FOCC custom cable assembly solution)
Note:
Professional installation team and documentation management required
Cross-Building
Long Distance
Solution:
12/24-fiber OS2 single-mode + outdoor-grade armored
Budget:
$8,000-$20,000
Rationale:
Only single-mode supports >500m
Application Scenarios
Spine-Leaf Architecture (40G/100G)
Solution: 24-fiber OM4 MTP trunk + 12-fiber OM4 access
High-Density Server Access
Solution: 12-fiber MPO-to-4xLC breakout
Advantage: 60% reduction in installation time
Cross-Building Interconnection
Solution: 12-fiber OS2 single-mode + outdoor-grade armored
Building B
Legacy Network Upgrade
Phase 1:
Install MPO patch panels, temporarily use breakout to interface with LC equipment
Phase 2:
Core switch upgrade, activate MPO direct connection
Phase 3:
Gradually replace edge equipment
Cost: 15% more in materials but 80% less downtime
Core Technical Points
Understand the technical specifications that make MTP fiber connector and MPO connectors optical fiber the ideal choice for high-density networks,Further knowledge on fiber optic cable technology.
MT Ferrule Precision
12 or 24 fibers precisely arranged in ceramic ferrule, 250-micron spacing, ±1-micron tolerance. This is key to MTP achieving high density.
Fiber Types
| Type | Core | Distance @ 100G | Price | Transceiver Cost |
|---|---|---|---|---|
| OM3 | 50μm | 100m | Baseline | Low |
| OM4 | 50μm | 150m | +15% | Low |
| OS2 | 9μm | 10km+ | +20% | 2-3x higher |
Polarity Management
Type A
1-to-1 straight-through
Type B
1-to-12 reversed
Type C
Pair-flipped
Important: Wrong polarity = no transmission, but will show connection, making troubleshooting painful.
Loss Budget
Each connection point has 0.35-0.75dB insertion loss; total link loss must stay within allowable range. High-density configurations must be tested.
Typical Loss Budget Calculation
Transmitter Power 0 dBm
Receiver Sensitivity -10 dBm
Cable Loss (100m OM4) -1.5 dB
Connector Loss (4 connections) -1.4 dB
Margin -7.1 dB
Volume Discounts
| Quantity | Discount | Additional Services |
|---|---|---|
| 50-99 | 8-10% | Free test reports |
| 100-199 | 12-15% | Testing + on-site guidance |
| 200-499 | 15-20% | Testing + training + 1-year extended warranty |
| 500+ | Custom quote | Complete solution design + implementation support |
Hidden Costs
Transceivers
Often 3-5x cable cost. Single-mode transceivers are significantly more expensive than multimode.
Cable Tray Modifications
May be needed for high-density configurations. Existing infrastructure may not support the higher density.
Compatibility Testing
Best to test different fiber optic connector types yourself. Mixing components can lead to performance issues.
Recommendation: Purchase small quantities first for testing before committing to large orders.
Service Support Overview
Learn about our comprehensive service and support offerings as a trusted cable assemblies supplier.
Warranty
Standard: 1 year (standard products) / 3 years (premium)
Coverage: Manufacturing defects, excessive insertion loss, physical damage (non-human)
Not covered: Human damage, use beyond specifications
Delivery
Standard: 3-5 business days (in stock), FOCC customized cable assembly 15-20 days
Free shipping: Orders over $500
Rush service: Add 30-50% rush fee
Returns and Exchanges
Return period: Within 7 days of receipt, unopened
Return conditions: Intact packaging, no installation marks
Non-returnable: Custom cable assembly products (non-quality issues), already installed and tested
Technical Support
Hours: Business days 9:00-18:00
Response: Within 4 hours (business days)
Channels: Phone, email, online
FAQ: MTP/MPO Cable Assembly
Common questions from data center engineers, telecom buyers and project integrators.
Q: What is the difference between MTP and MPO?
A: MPO is the generic multi-fiber push-on connector interface. MTP® is a branded MPO-style connector often selected for high-performance applications. Buyers should confirm connector type, loss grade, polarity, gender and polish before ordering.
Q: Which MTP/MPO polarity should I choose?
A: Type A is straight-through, Type B is reversed and Type C is pair-flipped. The correct choice depends on the transceiver lane mapping, cassette design, patch panel configuration and whether the link is direct or breakout.
Q: Should I choose male or female MTP/MPO connectors?
A: Male connectors have alignment pins, while female connectors do not. A correct MTP/MPO channel usually mates one pinned and one unpinned connector through an adapter. Always match the gender to your equipment, cassette or panel specification.
Q: Can MTP/MPO cables support 400G and 800G networks?
A: Yes. MTP/MPO assemblies are widely used in high-speed parallel optics. The correct fiber count and connector type depend on the optical module, such as 400G DR4, 400G SR4, 400G SR8 or 800G SR8/DR8.
Q: What information should I send for a custom MTP/MPO quotation?
A: Please provide cable type, fiber count, fiber mode, connector type, gender, polarity, jacket rating, cable length, fanout length if needed, loss grade, quantity, labeling requirements and any test report requirements.
Q: Can FOCC provide test reports for MTP/MPO cable assemblies?
A: FOCC can support insertion loss, return loss where applicable, polarity verification, end-face inspection and project documentation according to order requirements.
Request a Custom MTP/MPO Cable Assembly Quote
Send your required configuration or project drawing. FOCC can help confirm the right MTP/MPO cable type, fiber count, polarity, gender, jacket and test requirements before production.
- For trunk cables: send fiber count, length, polarity, jacket and pulling eye requirement.
- For harness cables: send MTP/MPO side, breakout connector, fanout length and labeling format.
- For testing: send transceiver type, loopback lane mapping and required report format.
Focc Technology is one of the leading China manufacturers and suppliers providing you with MTP MPO cable assembly. Our factory has applied the most advanced equipment and technology to better serve you. Please be free to buy our MTP MPO cable assembly products with competitive price. The customized service and the quotation consultation are available.
, MPO Fiber Cable , mpo cable , mtp mpo cable , mpo patch cable , MTP Optic Cable Assembly , mpo fiber optic cable assemblies
