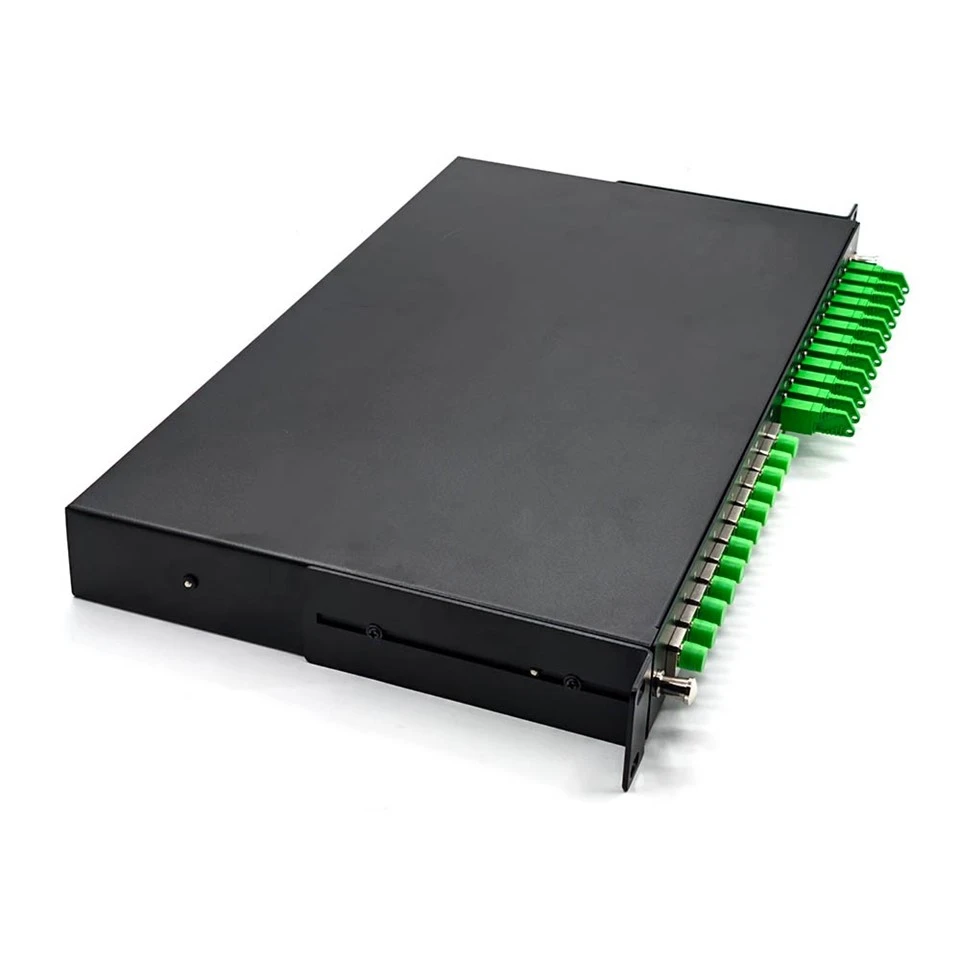

1U 24-Port Slide-out Fiber Optic Patch Panel | Empty Modular Flexible Platform | Supports SC / FC / ST Mixed Cabling
This 1U 24-Port Slide-out Fiber Optic Patch Panel is an empty-type, multifunctional, and fully customizable patching platform designed for rack-mounted fiber optic cabling systems. Its core value does not lie in preconfigured fiber counts or fixed connector types, but in providing a standardized 1U rack mounting space with 24 adapter port positions, enabling users to freely configure fiber optic adapters such as SC, FC, and ST according to different project requirements, and implement either single-type or mixed-interface cabling architectures.
This product is particularly suitable for scenarios requiring flexible planning, phased deployment, or centralized management of multiple fiber link types. Users can independently select appropriate adapters, pigtails, splice trays, and accessories based on on-site link types, equipment interfaces, jumper specifications, and network expansion plans, thereby building a more compatible and scalable fiber optic distribution system.
Core Product Positioning
Flexible Platform | Modular Fiber Distribution Base System
Unlike pre-terminated patch panels with fixed port counts and fixed adapter types, this product emphasizes the concept of "port positions" rather than fixed configurations. It provides a scalable and customizable foundational structure, allowing users to define the connector type and usage mode of each port according to actual project requirements.
It is suitable for the following applications:
- Early-stage projects where interface types are not fully defined and configuration flexibility is required;
- Environments where SC, FC, and ST interfaces coexist within the same infrastructure;
- Projects requiring customized port combinations based on client specifications;
- Scenarios needing centralized management of heterogeneous fiber links within a single 1U rack space;
Networks requiring future expansion or interface modification, demanding higher system adaptability and scalability.
Typical Application Scenarios
Data Center Fiber Link Management
Suitable for fiber patching, termination, and centralized port management within data center racks. Different adapter types can be configured according to the interfaces of various network devices, improving cabling flexibility.
Telecom Equipment Rooms & Operator Access Networks
Applicable for optical cable termination, splicing, and distribution management at the access layer, aggregation layer, or transmission nodes, facilitating maintenance personnel in port labeling and link adjustment.
Enterprise Campus Networks
Ideal for backbone fiber access and inter-building link management in office buildings, campuses, and industrial parks. Interface configurations can be customized based on different building or system requirements.
Security Surveillance & Low-Voltage Engineering
In video surveillance, security transmission, and building automation systems, it can be used for fiber link termination, distribution, and patch management, supporting project-based on-demand configuration.
Network Upgrade & Retrofit Projects
For legacy systems where SC, FC, ST, and other interfaces coexist, this product serves as a unified platform to consolidate interfaces and standardize fiber cabling architecture, improving overall network organization and maintainability.
FOCC™ Manufacturing Highlights & B2B Procurement Value (Direct Factory Model)
Flexible Multi-Connector Mixing & Hybrid Cabling Capability
The 24 standard universal port positions enable full integration of single-mode and multimode links within a single 1U chassis (e.g., SC single-mode adapters in yellow on the left side and SC multimode adapters in aqua on the right side). This design is ideally suited for complex multi-service convergence environments such as campus networks and enterprise infrastructures.
Significant Optimization of Overseas Inventory SKUs & Capital Efficiency
Global distributors and wholesalers no longer need to stock multiple finished patch panel SKUs for LC, SC, FC, and other connector types. Instead, they can centrally procure this standardized 1U metal chassis as a universal base platform, combined with a smaller volume of lightweight adapter components. This enables dynamic assembly based on downstream orders, significantly reducing warehouse footprint and alleviating inventory financing pressure and cash-flow constraints.
Highly Competitive Factory-Direct FOB Cost Structure
As a structural metal assembly product optimized for export logistics, the unit offers excellent stacking efficiency and high volume-to-weight utilization in container shipping. FOCC™ directly passes on the savings from reduced logistics overhead and optimized packaging density to buyers, delivering highly competitive factory-level FOB pricing with strong market positioning advantages.
CapEx-Driven Asset Model with Lifecycle Upgrade Flexibility
The rugged chassis represents a one-time capital expenditure (CapEx) investment. As network bandwidth requirements evolve toward higher transmission rates, field technicians do not need to replace the entire patch panel. Instead, they can simply upgrade or replace the front adapter modules in place, enabling seamless link scalability while significantly reducing long-term operational expenditure (OpEx).
Structured Technical Specifications Table
| Property | Specification | Standards / Remarks |
|---|---|---|
| Factory Delivery | Unloaded | No ad |
| Maximum Port Capacity | 24 Por | When configured with standard LC duplex p |
| Compatible | SC Simplex / FC Simplex / ST Simple | Fully compliant with interna |
| Sliding Me | Industrial-grade heavy-duty stee | Front full extension design wi |
| Housing Material | ≥ 1.2 mm high-quality | Structural reinforcem |
| Surface Tr | Electrostatic powder coa | Mat |
| Internal Cable Management | Integrated lightwei | Strict fiber bend radius control ≥ 20× cable outer diameter |
| Form Factor | Standard 19-inch rack-mount design (1U height) | Fully compatible with telecom-grade server racks, ODF distribution frames, and network cabinets |
FAQ - 1U 24-Port Slide-out Fiber Optic Patch Panel
Q1: Can different connector types be used together in one panel?
A: Yes. The panel supports mixed deployment of SC, FC, ST, and LC adapters within the same chassis, enabling heterogeneous network integration and flexible port planning.
Q2: What is the maximum fiber capacity of this unit?
A: The 24-port configuration supports up to 24 simplex or 48 fibers when LC duplex adapters are used, depending on the selected adapter layout.
Q3: Is this patch panel pre-loaded with adapters or pigtails?
A: No. It is delivered as a fully unloaded chassis. Adapters, pigtails, and splice trays are optional and configured based on project requirements.
