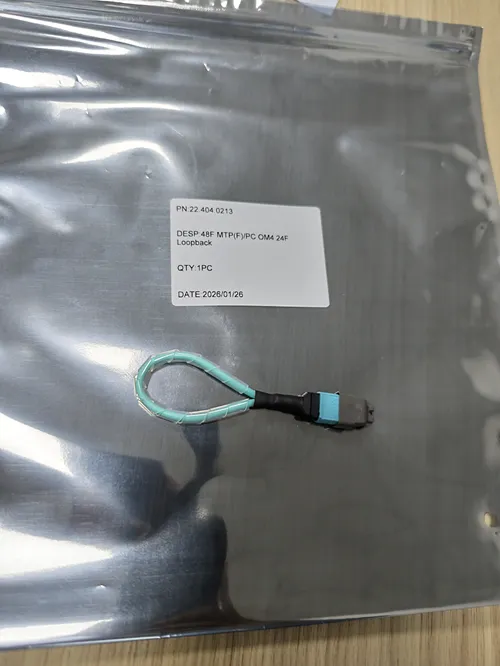

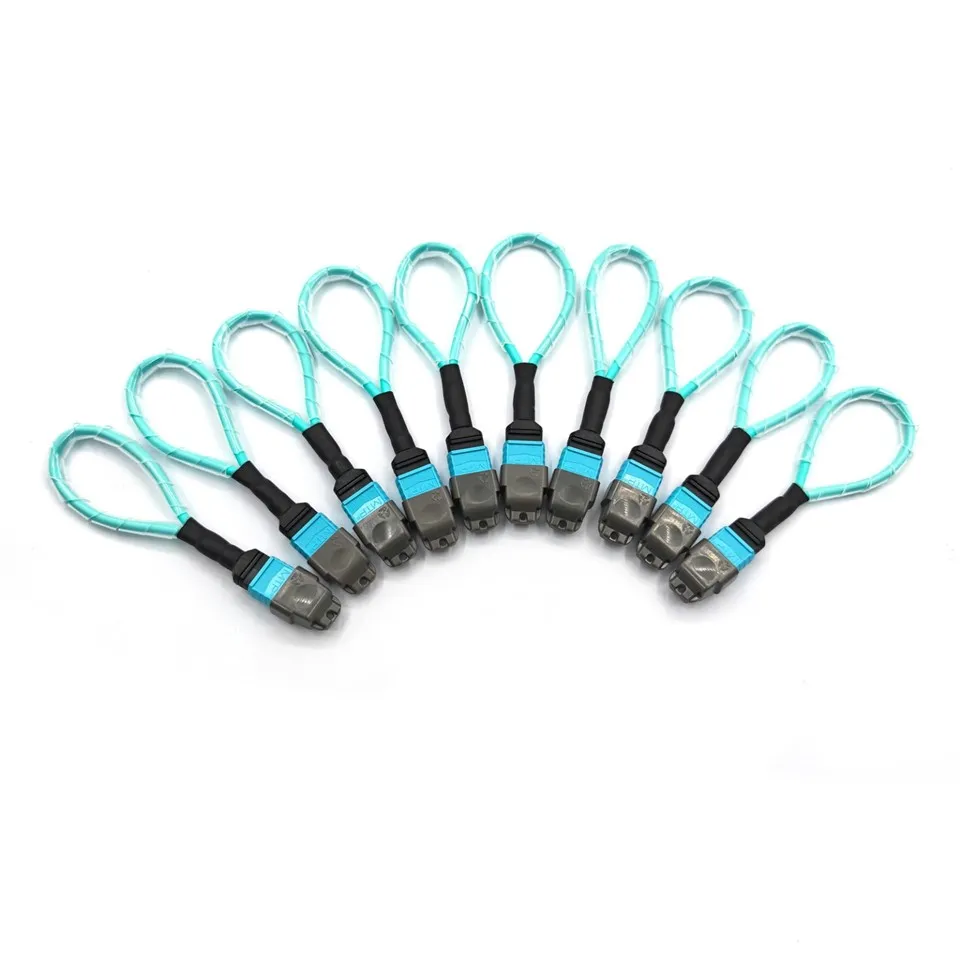

48F MTP Female PC OM4 24F Loopback Cable

Welcome to buy the 48f mtp female pc om4 24f loopback cable with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.

Built with an MTP Female connector, PC polished end face, and OM4 50/125μm multimode fiber, this loopback cable routes optical signals from the transmit channels back to the receive channels inside the assembly. It allows engineers to verify optical port performance, transceiver functionality, line card channels, and multi-fiber interface stability without building a full external fiber link.

Unlike a standard MTP patch cable, this product is not mainly used for connecting two devices. Its core function is to provide a stable, repeatable, and low-loss optical return path for testing. For customers working with 40G, 100G, 200G, 400G, or other high-density multi-channel optical interfaces, it helps reduce the number of external test jumpers, improve testing efficiency, and minimize manual connection errors.

Model Explanation

The "48F" and "24F Loopback" design can be understood as a high-density MTP interface with customized internal channel return mapping. Depending on the customer's equipment interface, polarity scheme, and testing requirements, FOCC can provide 12F, 24F, 48F, or other customized MTP/MPO loopback configurations.

Key Product Advantages

The main value of this 48F MTP Female PC OM4 24F Loopback Cable lies in high-density testing, reduced connection errors, improved testing efficiency, and stable channel consistency.

The MTP multi-fiber interface integrates multiple optical channels into one compact connector, making it much more suitable for high-density port testing than multiple LC duplex jumpers. For optical module manufacturers, switch manufacturers, data center integrators, and laboratory testing teams, this product converts complex Tx/Rx connection work into a standardized test component.

OM4 multimode fiber provides higher effective modal bandwidth and is suitable for 850nm VCSEL-based high-speed multimode links. In short-distance loopback testing, OM4 offers better bandwidth margin and test stability than conventional OM2 or OM3 multimode solutions.

The Female structure is designed for mating with Male MTP/MPO interfaces or test adapters with guide pins. Before ordering, the customer must confirm whether the mating interface is Male or Female. MTP/MPO alignment depends on guide pins; two Female connectors cannot align properly without pins, while two Male connectors cannot mate correctly and may damage the end face.

Typical Application Scenarios

This product is mainly used for loopback testing of high-density optical interfaces.

In switch port validation, engineers can insert the MTP loopback cable into the equipment port so that the optical signal transmitted from the port returns to the receiving side through the internal loopback path. This allows fast verification of whether the port's transmit and receive functions are working correctly.

For 100G SR4, 400G SR8, 800G parallel optics, and other multi-channel optical modules, the loopback cable helps customers complete port functional testing without deploying a full optical link.

In optical transceiver production and burn-in testing, the MTP OM4 Loopback Cable can be used for bit error rate testing, optical power verification, and automated test equipment integration. For ATE platforms, fixed loopback mapping reduces manual plugging operations and improves test consistency.

In data center deployment acceptance, this product can be used for quick inspection of switches, optical modules, line cards, and high-density fiber ports before new cabinets go live. It is not a replacement for formal transmission links; it is a professional testing, diagnostic, and acceptance tool.

Technical Structure

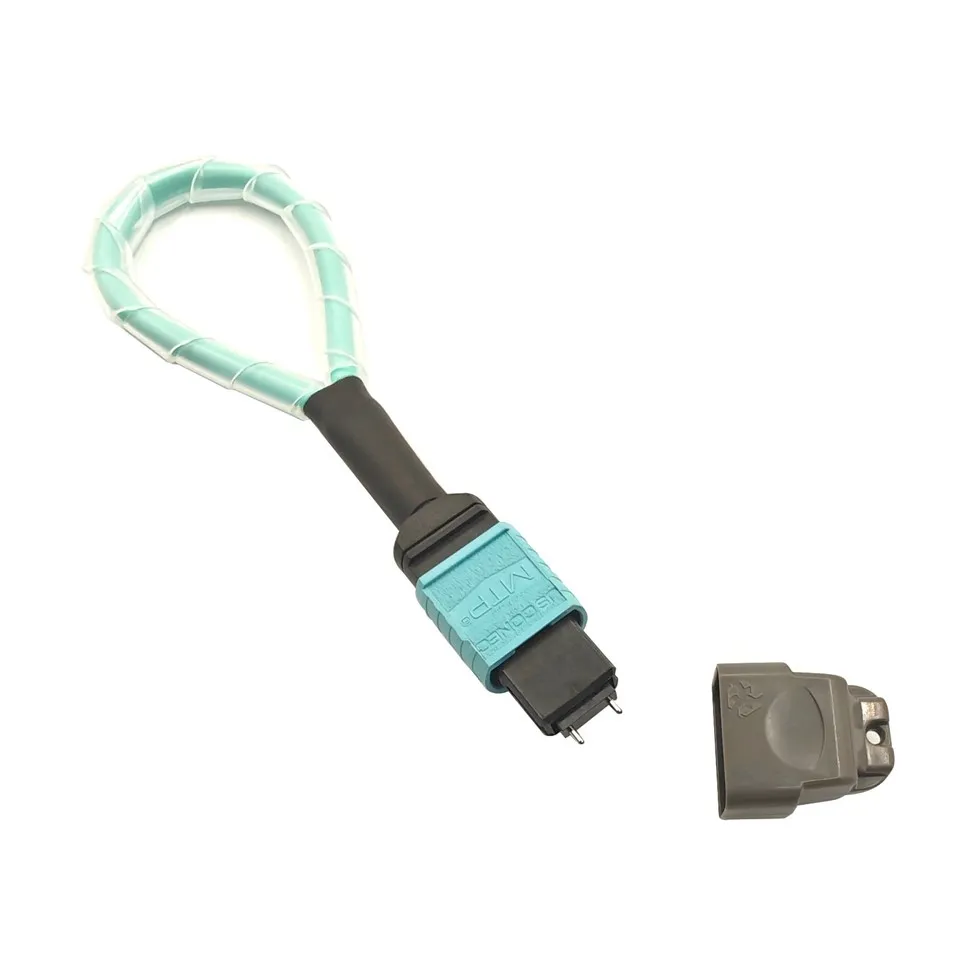

The 48F MTP Female PC OM4 24F Loopback Cable typically consists of an MTP Female multi-fiber connector, precision MT ferrule, OM4 multimode fiber, internal loopback fiber routing, jacket material, crimping structure, and dust caps.

The internal loopback path can be customized according to the customer's required polarity and channel mapping. A common design is to route transmit channels back to corresponding receive channels, such as Tx1 to Rx1 and Tx2 to Rx2. Cross-loopback or grouped loopback mapping can also be produced according to the optical module channel definition.

For a 24F loopback product, the key point is not only the fiber count but whether each channel is returned according to the actual testing logic of the equipment.

Different boot and housing options are available, including short boot, round boot, flat boot, and customized shell structures. For high-density equipment panels, a short boot design helps reduce bending stress. For laboratory environments with frequent insertion and removal, a stronger and easier-to-handle housing structure is recommended.

Recommended Specifications

Why Choose OM4 Instead of OM3?

OM3 can meet some short-distance 10G, 40G, and 100G testing requirements, but OM4 provides higher bandwidth margin and is more suitable for high-speed multi-channel transceiver testing, laboratory validation, and data center upgrade scenarios.

For loopback cables, the physical length is usually short, so transmission distance is not the primary limitation. The real factors affecting test stability are channel consistency, insertion loss, end-face quality, and compatibility with the optical module.

For basic 10G or cost-sensitive testing applications, OM3 can be an economical option. For 100G/400G multimode modules, mass production testing, or long-term testing platforms, OM4 is the recommended configuration.

Quality Control and Testing

For professional buyers, product reliability should not be described only with vague terms such as "high quality." A qualified MTP OM4 loopback cable should have a clear testing and inspection process.

FOCC can perform insertion loss testing for each unit before shipment to verify stable optical transmission through the loopback channels. Multi-fiber products are checked for channel mapping to ensure that the Tx/Rx routing matches the customer's drawing. Connector end faces are inspected to avoid scratches, contamination, black spots, white spots, or other defects that may affect test results.

For high-requirement orders, 3D interferometer inspection can be added to verify MTP ferrule geometry and end-face performance.

The general production process includes cable cutting, component assembly, fiber threading, curing, crimping, polishing, end-face inspection, IL/RL testing, final inspection, packaging, and shipment. After optical testing, the finished product is inspected again to ensure the end face is clean and protected with dust caps.

Difference Between MTP Loopback Cable and Standard MTP Patch Cable

Purchasing Recommendations

When purchasing a 48F MTP Female PC OM4 24F Loopback Cable, it is not enough to confirm only "48F," "OM4," and "Female." The buyer should also confirm the mating interface type, Male/Female compatibility, loopback channel mapping, polarity scheme, test wavelength, insertion loss requirement, and available panel space.

For switch port testing, customers are advised to provide the equipment port definition or module datasheet.

For optical transceiver production testing, customers should provide the Tx/Rx channel numbering and test fixture structure.

For data center acceptance testing, customers should confirm the target transmission rate, module type, and whether serial number labeling or batch management is required.

FOCC can customize 12F, 24F, and 48F MTP/MPO OM3/OM4 loopback cables according to customer port definitions, test equipment, polarity requirements, and packaging standards. Test data can be provided with shipment to support incoming inspection and project documentation.

FAQ

What is the main use of a 48F MTP OM4 24F Loopback Cable?
It is mainly used for Tx/Rx loopback testing of MTP/MPO high-density ports, optical transceivers, and switch interfaces.

What does MTP Female mean?
MTP Female means the connector does not have guide pins. It is normally mated with a Male MTP/MPO connector or interface with guide pins to ensure accurate MT ferrule alignment.

Can this product be used for 400G testing?
Yes. It can be used for multimode parallel optical interface loopback testing, but the module type, channel count, and Tx/Rx mapping must be confirmed before production.

Which is better for loopback testing, OM3 or OM4?
OM4 is better for high-speed, multi-channel, and long-term testing platforms because it provides higher bandwidth margin. OM3 is more suitable for cost-sensitive basic testing applications.

Can the loopback mapping be customized?
Yes. FOCC can customize straight loopback, crossed loopback, grouped loopback, or specified channel loopback according to the customer's drawing. For best results, customers should provide a port definition table before ordering.
