Push-Pull MPO Connector Built for Dense Fiber Connections
Push-pull handling
The aqua housing is marked with "PULL" and "TO REMOVE", supporting clear handling during insertion and removal in dense panels, cassette modules, and patching areas.
Male guide-pin configuration
The assembled product and drawing show guide pins at the ferrule side, making this page suitable for an MPO male connector option. Female or alternate pin options should be confirmed before ordering.
Complete rear assembly

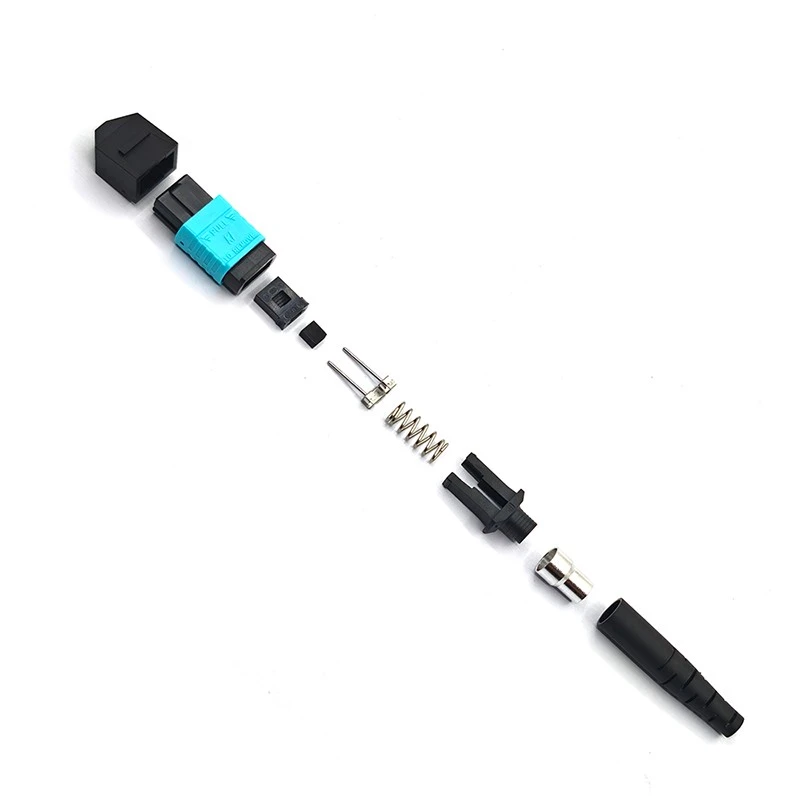

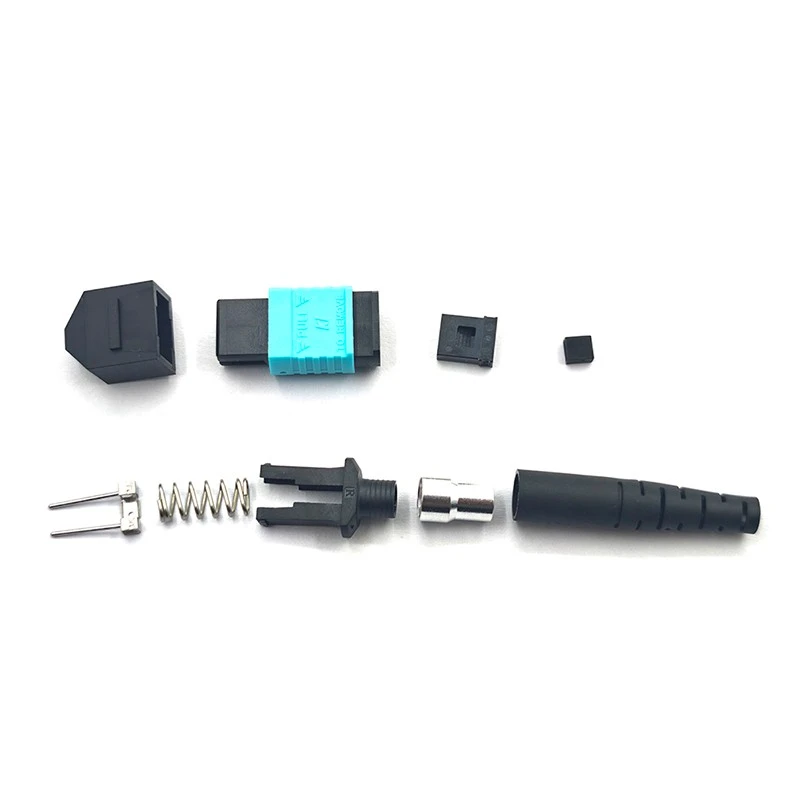

The exploded photos show a black rear boot, metal crimp sleeve, spring, latch body, and small internal parts, which are important for stable cable retention and repeated installation handling.
Protective dust cap
Black end caps are shown with the connector, helping protect the ferrule face from dust during storage, assembly transfer, and shipment.
Drawing-supported dimensions
The supplied drawings include body, boot, ferrule, and pin-component dimensions, so the page can give real dimensional references without inventing optical performance claims.
Bulk-ready presentation

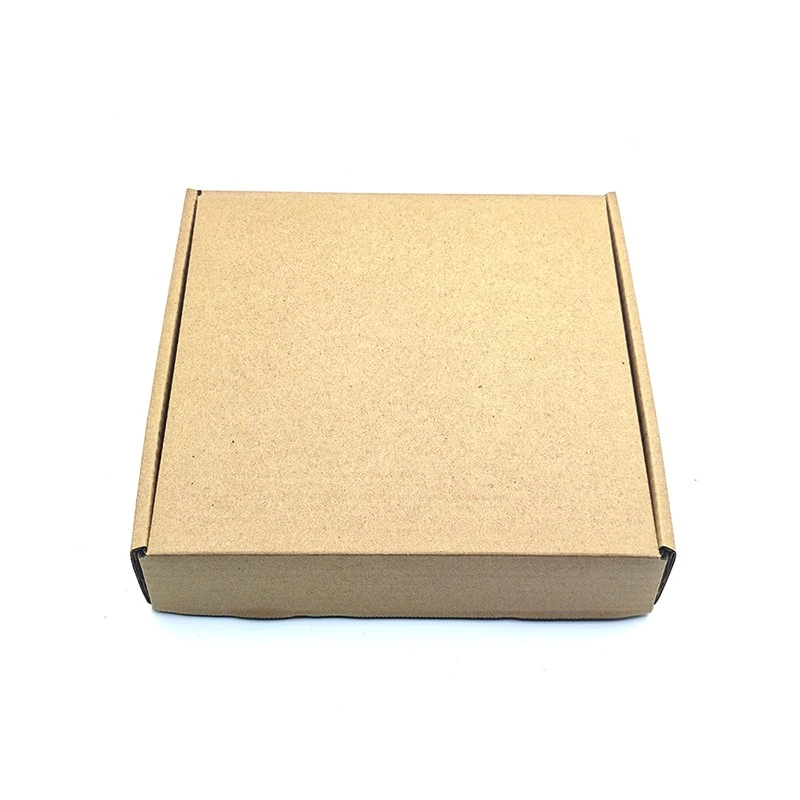

The included kraft box image supports packaging discussion for sample or batch delivery. Quantity per box and labeling should be specified with the final order requirement.
Inside the Connector: Housing, Pins, Spring, Crimp Sleeve, and Boot
For MPO connector sourcing, small details matter: latch operation, rear boot fit, spring response, pin configuration, and the way the cable is retained after crimping. The supplied exploded images show these parts clearly enough to support a practical product page and an inquiry checklist.
| Front protection and ferrule area
Dust cap, front connector body, ferrule area, and visible guide pins are shown in the product photos and drawings. |
| Internal mechanical parts
The photos show a spring and latch-related components, supporting a push-pull connector action for installation and removal. |
| Rear cable support
A metal crimp sleeve and black ribbed boot are included in the assembly view, helping describe cable retention and bend support. |
MPO Connector Specifications
| Product name | MPO male fiber optic connector / MPO connector assembly |
|---|---|
| Connector configuration shown | Male MPO connector with visible guide pins; front dust cap and push-pull outer housing included |
| Housing color shown | Aqua / light blue push-pull housing with black surrounding components |
| Boot color and style | Black ribbed rear boot; supplied drawing shows approx. 33 mm boot length |
| Overall assembly length | Approx. 59 mm shown in supplied assembly drawing |
| Ferrule drawing labels | Ferrule and boot are labeled in the drawing; ferrule-related dimensions shown include 8.0 mm, 6.0 mm, 7.0 mm, 6.4 mm, and 2.45 mm |
| Ferrule face details shown | Drawing indicates 12 x diameter 1 holes and 2 x diameter 2 guide-pin holes |
| Guide-pin component dimensions | 2.5 mm, 6.9 mm, 12.5 mm, and 4.6 mm spacing are visible in the supplied pin-component drawing; pin diameter D is marked but no value is provided |
| Pin-component option shown | SL, SM, ML, and MM options appear in the drawing; MM is marked |
| Visible components | Dust cap, push-pull housing, ferrule area, guide pins, spring, latch body, metal crimp sleeve, and rear boot |
| Packaging shown | Plain kraft paper box image supplied; inner quantity, label, and carton details to be confirmed per order |
Reliable MPO Connector Structure for Professional Fiber Cable Assembly
Built for high-density fiber optic applications, this MPO connector provides the mechanical accuracy and assembly stability required for professional cable manufacturing. The ferrule, guide pins, spring mechanism, crimp sleeve, and protective boot are designed to work together, helping customers achieve consistent connection quality and dependable installation performance.
Stable multi-fiber connection
The MPO ferrule and guide-pin structure support accurate fiber alignment, making the connector suitable for multi-fiber patch cords, trunk cables, cassette modules, and data center cabling systems.
Installation-friendly housing
The push-pull housing is easy to identify and operate, helping technicians connect and remove the cable assembly efficiently in dense optical distribution environments.
Durable rear assembly
The rear boot, crimp sleeve, and spring-supported structure provide secure cable-end protection, helping the finished assembly withstand handling, routing, and daily network maintenance.
 |
 |
Reliable MPO Connectivity for High-Density Fiber Networks
FOCC MPO connectors are built for multi-fiber cabling environments where stable alignment, compact installation, and dependable connection performance are essential. They are widely used in data centers, telecom networks, optical distribution systems, and customized fiber cable assemblies.
Used in MPO trunk cables, patch cords, and cross-connect systems to support fast, organized, and space-saving fiber deployment inside data center cabinets.
Supports stable optical connection for telecom rooms, fiber distribution systems, backbone networks, and large-scale communication infrastructure.
Works with patch panels, cassette modules, distribution frames, and pre-terminated cabling systems that require consistent MPO connection quality.
Suitable for OEM and project-based cable assemblies, including MPO patch cords, multi-fiber trunk cables, and customized optical connectivity solutions.
What to confirm before placing an order
The supplied images confirm the physical structure, but the final commercial product page should still collect the optical and assembly requirements needed for accurate production.
|
Connector and ferrule configuration Confirm male or female connector, fiber count, ferrule type, and whether the MM option shown in the drawing matches your project. |
|
Optical performance Specify the required insertion loss, return loss, polishing type, and inspection standard if the connector will be supplied as a finished cable assembly. |
|
Cable and boot requirement Confirm cable outer diameter, boot style, boot length, bend control requirement, and whether color coding is needed for the housing or boot. |
|
Packaging and labeling Confirm sample quantity, bulk packing quantity, labels, barcodes, and outer carton requirements before shipment. |
Common questions for MPO connector sourcing
Is this an MPO male connector?
The supplied product photos and drawings show guide pins at the ferrule side, so the pictured configuration is described as an MPO male connector. If you need a female version, confirm the final configuration before ordering.
Does the page confirm OM3, OM4, or a specific optical grade?
The housing color appears aqua and the drawing marks MM, but the files do not provide a complete optical datasheet. OM3, OM4, insertion loss, return loss, and polish type should be confirmed with the final specification.
What dimensions are available from the supplied files?
The assembly drawing shows approximately 59 mm overall connector length and approximately 33 mm boot length. The ferrule drawing includes dimensions such as 8.0 mm, 6.0 mm, 7.0 mm, 6.4 mm, and 2.45 mm, plus 12 x diameter 1 holes and 2 x diameter 2 guide-pin holes.
Can this connector be supplied as part of a cable assembly?
The exploded photos show the rear boot, metal crimp sleeve, and spring-related parts, which are relevant to cable assembly. The final cable type, cable diameter, polarity, fiber count, and performance test requirement should be specified in the quote request.
