MPO Connector Family - Multifiber Push-On
A Complete High-Density Fiber Optic Connectivity Solution
MPO jumper | Features and Benefits Ultra-small and durable fibers, ideal for a variety of installation environments: • Reliable high-density, high-performance interconnections ○○Increases fiber density on fiber shelves and faceplates ○○Improves and simplifies fiber routing ○○Decreases fiber management space • Telcordia GR-1435-CORE tested • ANSI/TIA/EIA-604-5-199 FOCIS 5 compliant | • Quick and easy connection with push-on/pull-off latching mechanism • Low insertion loss and reflectance • High-speed application support • Solution-based engineering support to meet all fiber routing requirements ○○Assistance for unique designs and configurations • OEM solutions |
| Applications OFS offers an extensive line of high-density MPO multifiber connector products, Reliable high-density interconnections for: • Equipment Interconnections • Telecommunications networks • Broadband/CATV networks • Data communications networks, including high-bandwidth equipment • Interconnections for parallel optical transmitters and receivers | Product Description OFS offers an extensive line of high-density MPO multifiber connector products, including jumpers, fanouts, pigtails and connectorized cable. When you need a high-performance fiber optic connectivity solution, look to the OFS family of products featuring the MPO Connector. Low loss single-mode MPO connectors deliver the performance and reliability needed in today抯 demanding high-speed broadband and data networks. Multimode LaserWave? MPO jumpers and fanouts are designed to support high-speed, short-reach, data center applications. The MPO Connector, with its familiar push-on/pull-off insertion release mechanism, provides consistent and repeatable interconnections with up to 48 fibers in a 0.7?x 0.4?minimum footprint. The MPO product family is available with 8, 12, 24 and 48 fiber connectors featuring bare ribbon, tight-buffered ribbon and cordage, and includes standard adapters. Alternative fiber counts are available upon request. |

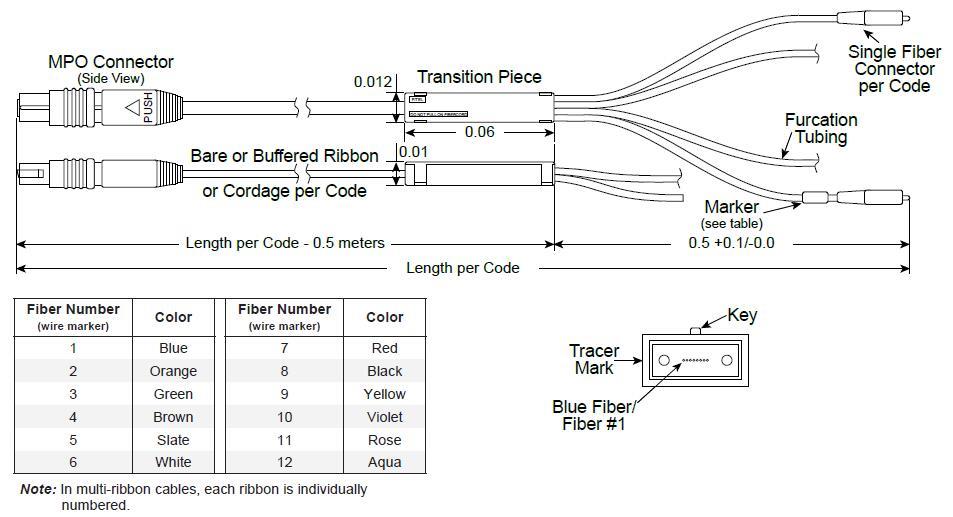

MPO Jumpers & Pigtails
| MPO jumpers and pigtails provide high-density connections in a small footprint. Low loss single-mode jumpers deliver superior loss performance for demanding, high-speed applications. Low-Loss MPO 8-Fiber Jumper MPO jumpers and pigtails provide high-density connections in a small footprint. Low loss single-mode jumpers deliver superior loss performance for demanding, high-speed applications. |

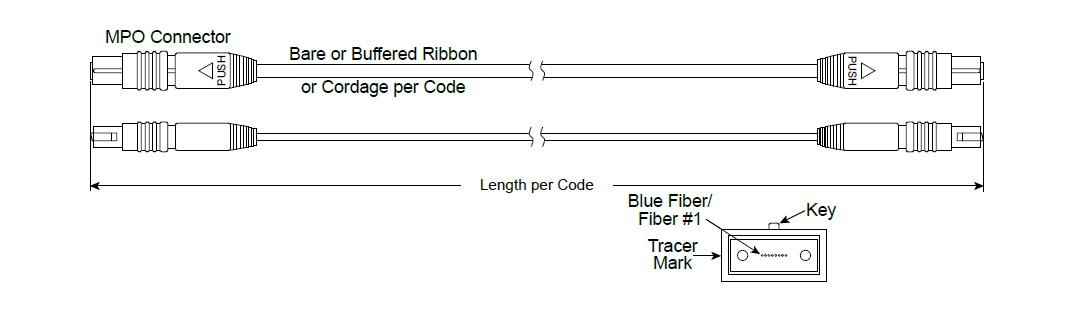

MPO Jumper Specifications | ||||
| Connector Type | Ferrule/Polish | Loss (Typical) | Loss (Max) | Return Loss (Min) |
| MPO | Single-Mode 8-Fiber APC | 0.16 dB | 0.35 dB | 55 dB |
| MPO | Multimode PC | 0.10 dB | 0.35 dB | 20 dB |
MPO Adapters
FOCC offers standard MPO Adapters, packaged individually or
in bulk quantities of 100.
 |  |

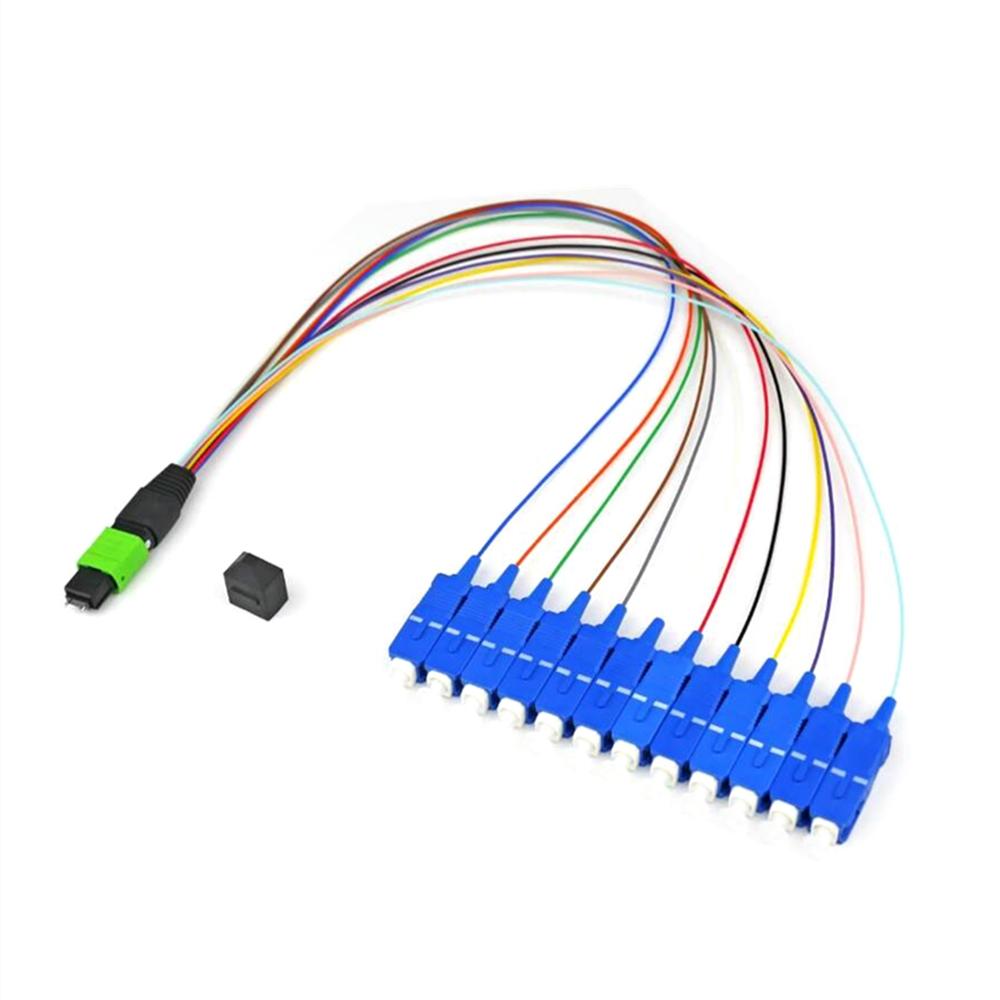

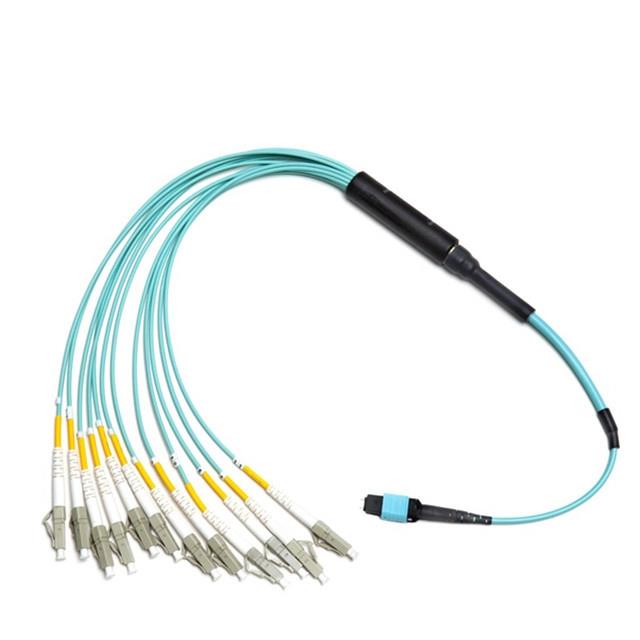

MPO Fanouts
FOCC MPO fanouts provide dependable, high-quality transitions |  |
MPO Fanout Specifications
| Connector Type | Ferrule/Polish | Loss (Typical) | Loss (Max) | Return Loss (Min) |
| MPO | Single-Mode APC | 0.16 dB | 0.35 dB | 55 dB |
| Single Fiber | Single-Mode UPC | 0.15 dB | 0.30 dB | 55 dB |
| Single Fiber | Single-Mode APC | 0.15 dB | 0.30 dB | 65 dB |
If you would like to order the above products, please contact or browse the FOCC. We can provide not only standard cables but also custom cables according to your requirements.
