Product Description

The Fiber Cleaver Pen is a compact and portable fiber cutting tool designed for quick and precise fiber preparation in field environments. Its lightweight pen-style structure makes it easy to carry and convenient for technicians working in FTTH installation, telecom maintenance, and onsite fiber testing.

This tool is suitable for cutting optical fibers during installation, testing, and maintenance tasks. It is widely used in field operations, as well as in laboratories and R&D environments where flexible and efficient fiber handling is required.

The cleaver is equipped with a precision blade system, available in cone or wedge-shaped configurations. The blade is manufactured from high-quality silicon carbide or tungsten steel, ensuring stable cutting performance and consistent fiber end-face quality.

Key Features of the Fiber Cleaver Pen

1. Precision Cleaving Blade System

Equipped with a high-accuracy blade to ensure clean and consistent fiber end faces, reducing splice loss.

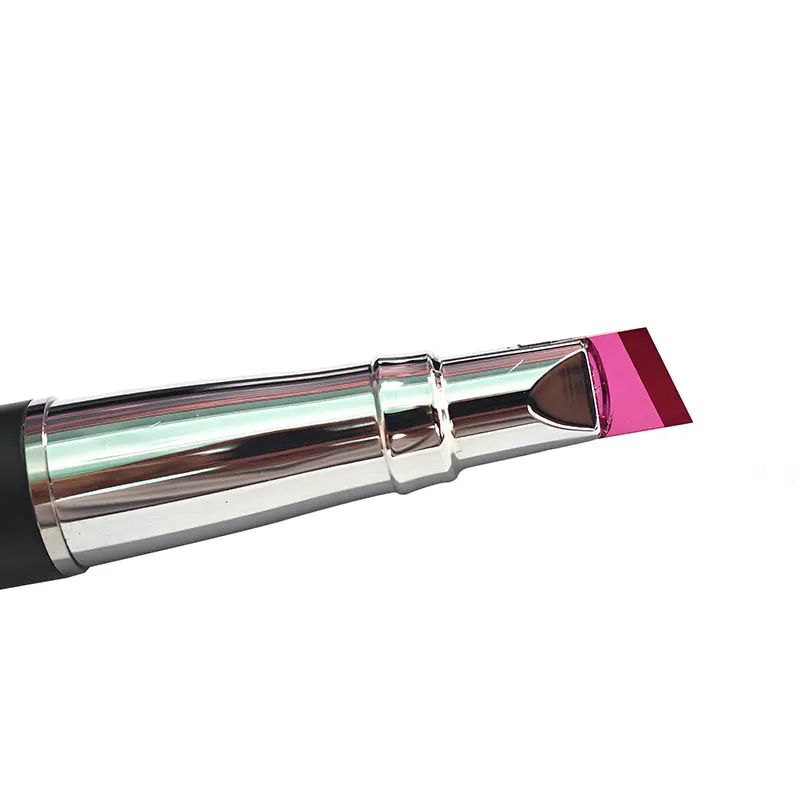

2. Angled Metal Cleaving Head

The slanted metal head design improves control and visibility during cutting, especially in tight installation environments.

3. Pen-Style Ergonomic Design

Designed like a writing pen, offering natural grip and better handling for technicians during repetitive operations.

4. Portable for Field Work

Compact size allows easy storage in tool kits, ideal for FTTH deployment and onsite maintenance.

5. Stable Cutting Performance

Provides consistent cleaving results, supporting reliable splicing and connector termination.

6. Suitable for Fiber Preparation Workflow

Can be used as part of fiber preparation before fusion splicing or mechanical connection.

Fiber Cleaver Pen for Precision Fiber Cutting in Field Applications

In fiber optic work, cutting precision is not limited to controlled environments. Many operations are performed onsite, where space is limited, tools are mobile, and efficiency is critical. A portable Fiber Cleaver Pen allows technicians to perform reliable fiber cutting in real-world field conditions without relying on bulky equipment.

1. FTTH Installation

During FTTH deployment, technicians often need to cut fibers quickly while working in corridors, distribution boxes, or customer premises. A pen-style fiber cleaver provides a compact solution that is easy to carry and operate, improving installation efficiency.

2. Fiber Splicing Preparation

Before fusion splicing, fiber end-face quality is critical. This Fiber Cleaver Pen supports quick cutting preparation in field conditions, helping reduce splice loss caused by uneven fiber ends.

3. Telecom Maintenance and Repair

In telecom networks, maintenance teams frequently perform fiber cutting during repair or replacement work. The portable design allows technicians to work efficiently inside cabinets, ODF systems, and outdoor enclosures.

4. Data Center and Structured Cabling

In high-density environments such as data centers, space is limited and tool access is restricted. A compact cleaver pen offers greater flexibility when handling fiber routing and preparation tasks.

5. Laboratory and R&D Use

For research and development environments, where flexible and repeated fiber handling is required, a pen-style cleaver provides a convenient alternative to larger cutting tools.

Cutting Precision and Tolerances

Cleaving Angle Accuracy:
High-precision fiber cleavers typically achieve a cleaving angle within 0.5°. This level of accuracy is controlled by blade geometry and applied force during operation. For high-quality results, the fiber end-face perpendicularity should be maintained within ±0.5°.

Repeat Positioning Accuracy:
Desktop cleavers usually adopt linear guide rails and spring-loaded mechanisms, enabling repeat positioning accuracy at the level of tens of micrometers or higher. This ensures consistent cleaving positions for each fiber.
Manual pen-style cleavers rely more on operator handling, so repeatability is relatively lower. However, the use of mechanical limiters or guiding molds can significantly reduce positioning deviations.

End-Face Quality:
A high-quality cleaved fiber end should be smooth, flat, and free from burrs or cracks. Surface roughness (Ra) can be referenced against mirror-polishing standards, typically Ra ≤ 0.05 μm.
Blade material also impacts performance: ruby blades generally provide the best end-face quality, followed by tungsten steel blades.

Cleaving Length Tolerance:
The exposed fiber length (cleaving length) must meet connector polishing or splicing requirements. For single-core fibers, it is typically controlled within 8–20 mm.
For applications requiring higher precision, adjustable mechanisms or scale markings can be integrated into the tool base.

Compatible Fiber Types

This type of cleaving tool is primarily designed for silica optical fibers, including single-core and multi-core fibers, as well as various coatings such as tight-buffered and loose-tube fibers. It is generally suitable for fiber diameters ranging from 0.25 mm to 3.0 mm.

For other fiber materials, special considerations apply:

Carbon Fiber / Glass Fiber:
These materials are commonly used in composite structures and feature larger diameters and higher strength. Standard fiber cleavers are not suitable. It is recommended to use specialized tools such as ultrasonic cutting blades or precision grinding machines to prevent cracking, burr formation, or delamination.

Plastic Optical Fiber (POF):
Plastic optical fibers can be cleaved using tools with lower blade sharpness or controlled cutting processes adapted to their material properties.

In general, fiber cleaver pens should be used strictly for optical fibers or flexible fiber materials as specified. For multi-purpose applications, more wear-resistant blade materials (such as diamond-coated blades) and optimized cutting parameters may be considered. However, usage limitations and associated risks should be clearly communicated to users.

Safety and Maintenance Guidelines

Pre-Use Inspection:Before use, ensure the blade is intact and securely fixed. Check that the cutting groove and clamping area are clean and free from debris. The fiber should be placed straight and without tension.

Personal Protection:Wear safety glasses during operation to prevent injury from fine fiber fragments. Avoid direct contact with the blade.

Cutting Operation:Apply steady and controlled force when cleaving the fiber along the blade direction. Avoid hand shaking or uneven pressure. Ensure the fiber is properly aligned and not inserted at an angle.

Fiber Scrap Collection:After cutting, immediately collect and dispose of fiber scraps. Keep the work surface and collection container clean, and regularly empty accumulated fiber debris.

Storage and Transportation:Store the tool with a protective cap or in its case. Keep it in a dry environment and avoid mechanical impact. For models with built-in lighting or batteries, avoid high-temperature environments to prevent battery leakage.

Routine Maintenance:After several hundred to several thousand uses, inspect blade sharpness. If cutting quality declines, replace the blade promptly. Clean the fiber holder and cutting groove using a lint-free cloth or compressed air.
Do not use abrasive materials or corrosive solvents, as they may damage the blade.
