Product Overview
This handheld optical power meter is designed for fiber optic network installation, maintenance, inspection, and troubleshooting. It helps technicians quickly measure optical signal strength and evaluate link condition during construction, routine service, and repair work.
The device supports both absolute power measurement and relative power measurement, allowing users to read direct optical power values or compare link loss in a more practical way. With LCD display, backlight, auto-off, and user calibration functions, it is suitable for indoor racks, weak-light environments, and outdoor engineering tasks.
Key Features
Wide wavelength coverage: Supports 800-1700nm operating range with common calibrated wavelengths at 850, 980, 1300, 1310, 1490, and 1550nm.
Absolute and relative power measurement: Reads direct optical power values in dBm and supports relative dB measurement for fiber link loss checking.
InGaAs detector for stable measurement: Suitable for fiber communication maintenance, installation acceptance, and routine engineering work.
Backlit LCD display: Displays dB, dBm, mW, uW, and nW related testing information for easy viewing in darker environments.
Portable body with long battery life: Runs on 3 AA batteries and supports 10-minute auto-off for lower power consumption during field use.
Technical Specifications
| Product Name | Handheld Optical Power Meter |
|---|---|
| Operating Wavelength Range | 800-1700nm |
| Calibrated Wavelengths | 850 / 980 / 1300 / 1310 / 1490 / 1550nm |
| Detector Type | InGaAs |
| Version A Range | -70 to +6dBm |
| Version C Range | -50 to +26dBm |
| Current Product Version | C version high power range |
| Uncertainty | ±0.25dB |
| Resolution | 0.01dB |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Auto-Off Time | 10 minutes |
| Operating Time | ≥130 hours |
| Power Supply | 3 x AA 1.5V batteries |
| Weight | 160g |
| Dimensions | 152 x 74 x 26mm |
FAQ
1. What is this handheld optical power meter mainly used for?
It is mainly used for fiber optic installation, maintenance, routine inspection, troubleshooting, FTTH service work, and basic laboratory measurement where quick optical signal checking is needed.
2. Which wavelengths does this product support?
It supports an operating wavelength range of 800-1700nm with common calibrated wavelengths at 850nm, 980nm, 1300nm, 1310nm, 1490nm, and 1550nm.
3. Does it support both absolute and relative power measurement?
Yes. It can measure direct optical power values in absolute mode and compare optical loss in relative mode.
4. Which version is shown in the current product materials?

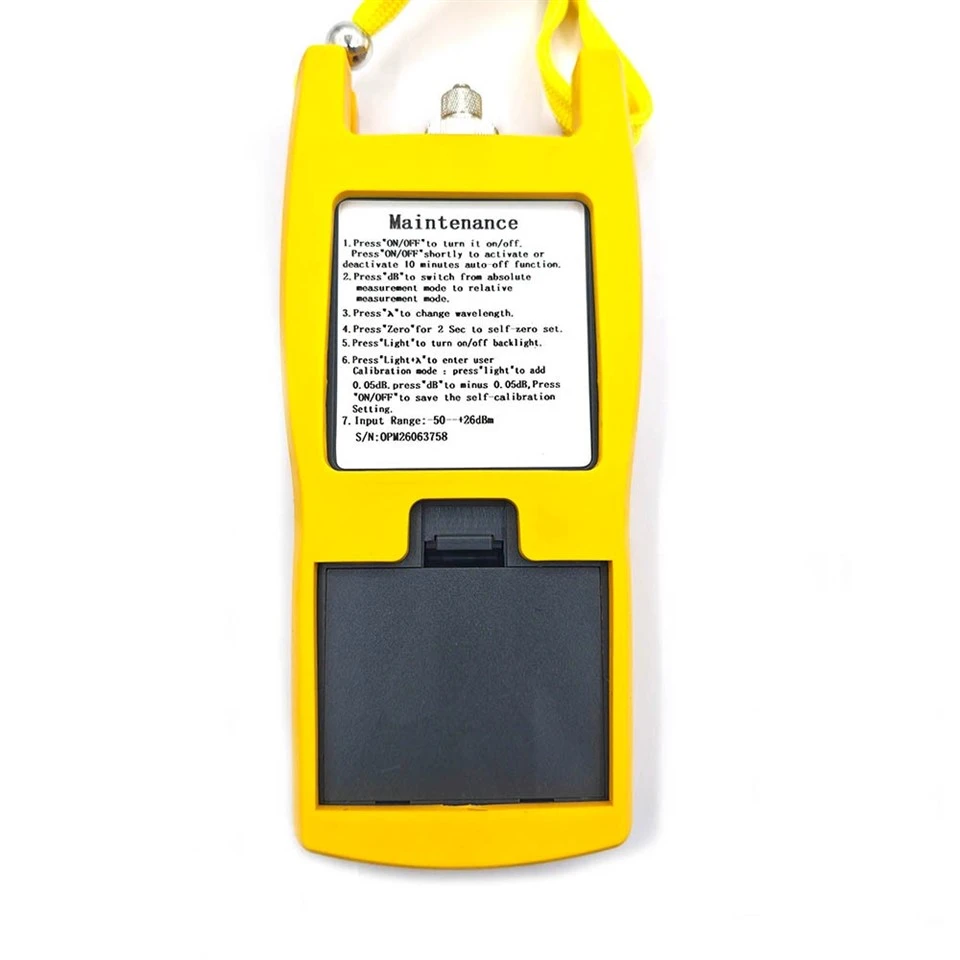

The current photos and back label indicate the C version, with an input range of -50 to +26dBm. The manual also mentions an A version with a -70 to +6dBm range.
5. What battery type does it use and how long can it work?
It uses 3 AA 1.5V batteries and supports operating time of 130 hours or more under the provided specification.
6. Does the screen have a backlight?
Yes. The LIGHT key turns the backlight on or off, which is useful in dim maintenance environments.
7. What accessories are included in the package?

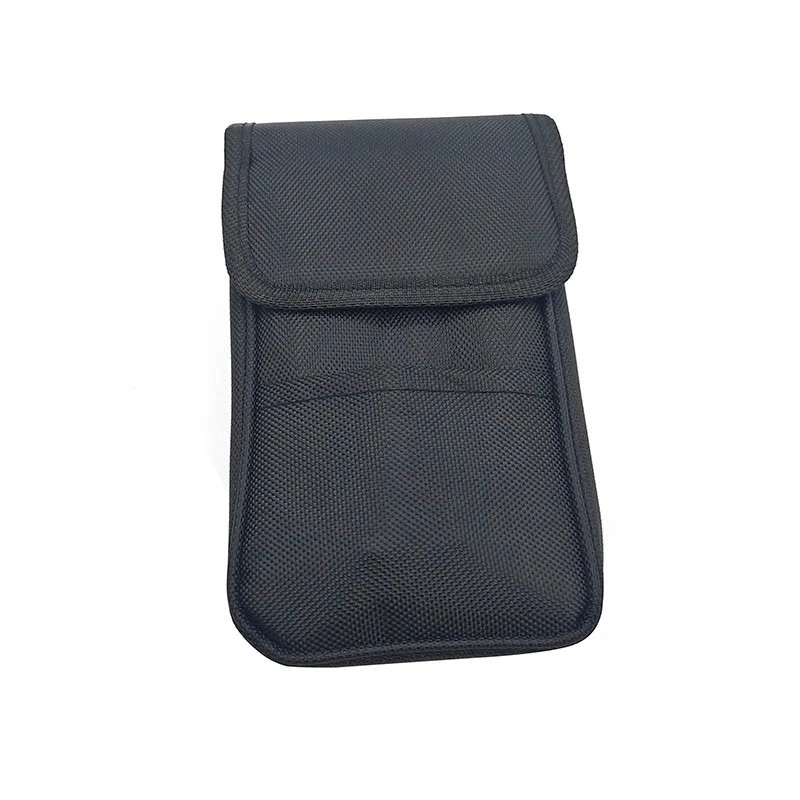

According to the manual, the standard package includes the handheld power meter, manual, protective holster, three AA batteries, and one cotton swab.
