GYXTW G652D Fiber Optic Cable Overview
GYXTW G652D fiber optic cable is an outdoor uni-tube armored fiber optic cable designed for duct, conduit and aerial installation networks. The 250μm fiber is positioned in a loose tube made of high modulus plastic, and the tube is filled with a water-resistant filling compound.
The loose tube is wrapped with PSP longitudinally. Between the PSP and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, and the cable is completed with a polyethylene (PE) sheath.
FOCC supplies GYXTW single mode fiber optic cable and GYXTW fiber cable factory solutions for telecom operators, network contractors, distributors and project buyers requiring reliable outdoor fiber deployment.

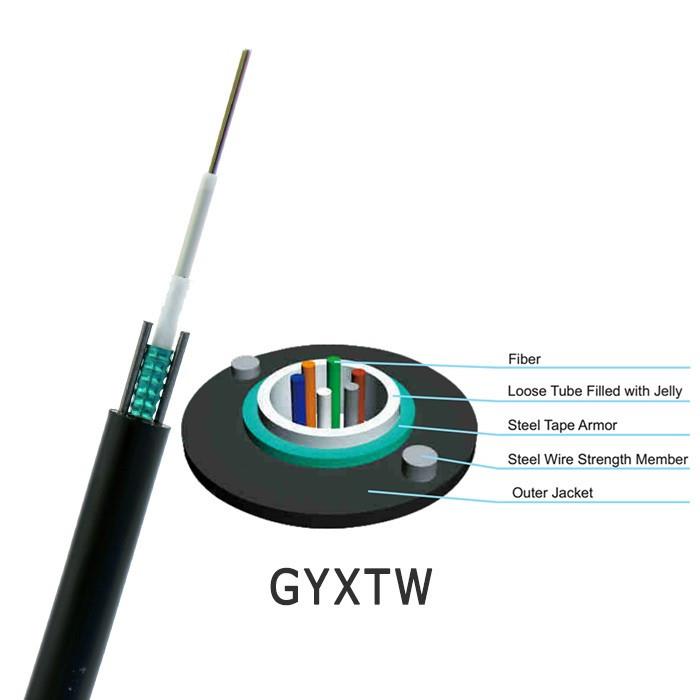

GYXTW Cable Structure
The GYXTW fiber optic cable adopts a compact armored uni-tube design for outdoor environments. The structure helps improve moisture-proof performance, crush resistance and installation stability.
- 250μm optical fibers positioned in a loose tube
- Loose tube made of high modulus plastic
- Water-resistant filling compound inside the tube
- PSP longitudinal armor for moisture-proof protection
- Two parallel steel wires for tensile strength
- Black polyethylene PE outer sheath
Key Features of GYXTW Fiber Cable
Good Mechanical and Temperature Performance
Designed for outdoor environments with stable performance under storage and operating temperature from -40℃ to +70℃.
Hydrolysis Resistant Loose Tube
High strength loose tube helps protect optical fibers and supports long-term cable reliability.
Critical Fiber Protection
Special tube filling compound provides protection for optical fibers and helps maintain stable transmission.
Crush Resistance and Flexibility
The armored structure provides mechanical protection while maintaining installation flexibility.
PSP Moisture-Proof Protection
PSP steel tape armor enhances moisture-proof performance for outdoor duct and aerial applications.
Two Parallel Steel Wires
Two parallel steel wires ensure tensile strength during installation and cable pulling.
Small Diameter and Light Weight
The compact uni-tube design supports easier handling and more friendly installation.
Factory Supply and Customization
FOCC supports customized orders, quotation requests and project-based supply for GYXTW fiber cable.
Applications of GYXTW Armored Fiber Optic Cable
GYXTW armored fiber optic cable is usable in duct and aerial applications.
It is suitable for long distance communication and local area network communication projects.
Duct Fiber Optic Cable Installation
Aerial Telecommunication Cable Deployment
Conduit Fiber Cable Application
Long Distance Communication
Local Area Network Backbone
CATV and Broadband Access Networks
Fiber Parameter
|
|
Items |
Unit |
Specification |
|
|
G.652D |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
1550nm |
μm |
10.4±0.5 |
||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.36 |
|
1550nm |
dB/km |
≤0.24 |
||
Cable Parameters
|
Items |
Specifications |
|
|
Fiber Count |
2~24 |
|
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
|
Color |
Blue, Orange, Green, Brown, Gray, White |
|
|
Loose Tube |
Dimension |
2.10mm±0.05mm |
|
Material |
PBT |
|
|
Color |
Natural |
|
|
Strength Member |
Diameter |
1.0mm |
|
Material |
Steel |
|
|
Outer Jacket |
Dimension |
8.0mm±0.1mm |
|
Material |
PE |
|
|
Color |
Black |
|
Mechanical and Environmental Characteristics
|
Items |
Unite |
Specifications |
|
Tensio (Long Term) |
N |
600 |
|
Tension (Short Term) |
N |
1500 |
|
Crush (Long Term) |
N/10cm |
300 |
|
Crush (Short Term) |
N/10cm |
1000 |
|
Min. Bend Radius (Dynamic) |
mm |
20D |
|
Min. Bend Radius (Static) |
mm |
10D |
|
Installation Temperature |
℃ |
-20~+60 |
|
Operating Temperature |
℃ |
-40~+70 |
|
Storage Temperature |
℃ |
-40~+70 |
Technical Parameter
|
Fiber Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
2~12 |
10.6 |
124 |
1000/3000 |
1000/3000 |
10D/20D |
|
14~24 |
12.0 |
147 |
1000/3000 |
1000/3000 |
10D/20D |
Transmission Characteristics
| Items | Wavelength / Condition | G.652 | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|---|
| Max Attenuation dB/km +20℃ | 850 nm | - | - | 3.0 | 3.3 |
| Max Attenuation dB/km +20℃ | 1300 nm | - | - | 1.0 | 1.0 |
| Max Attenuation dB/km +20℃ | 1310 nm | 0.36 | 0.4 | - | - |
| Max Attenuation dB/km +20℃ | 1550 nm | 0.24 | 0.23 | - | - |
| Cable Cut-off Wavelength nm | - | ≤1260 | ≤1450 | - | - |
Structure and Technical Specifications
| increasad by 2fibers | fiber count | Tube Size(mm) | Standard Thickness of Sheath(mm) | cable diameter(mm) | cable weight(kg/km) | strength long/short term(N) | crush resistabce long/short term(N/100mm) |
| GYXTW-2~12Xn | 2~12 | 2.0/3.0 | 3.0 | 11.0 | 132 | 600/1500 | 1000/3000 |
Note:Suffix Xn denotes fiber type and see details in FOCC's cable coding illustration
Fiber coloure Identification of loose tube with FOCC
The fibers in cables can be identified by standard colour identification in compliance with YD/T901-2001 Standard.
Standard Colour Identification Notes
- When the fiber count of one loose tube is less than 12, the fibers are identified from the No.1 colour in sequence.
- In standard colour identification, the No.6 white colour could be replaced by natural colour, which is called standard colour identification W.
- The loose tubes in cable can be identified by pan-chromatograph.
GYXTW Fiber Cable Factory Supply
FOCC supplies GYXTW fiber cable for outdoor telecom projects, network construction, broadband access, LAN backbone and long distance communication. As a fiber optic cable factory and supplier, FOCC supports customized orders, project quotation and cable configuration based on customer requirements.
- 2~24 core GYXTW fiber optic cable supply
- G.652D single mode fiber option
- Outdoor duct and aerial installation support
- Customized cable marking and packaging available
- Project quotation support for contractors and distributors
FAQ
Q: What is GYXTW fiber optic cable?
A: GYXTW is a uni-tube armored outdoor fiber optic cable. It uses optical fibers placed in a loose tube, protected by water-resistant filling compound, PSP steel tape armor, two parallel steel wires and a PE outer sheath.
Q: Is this GYXTW cable available with G.652D single mode fiber?
A: Yes. FOCC supplies GYXTW G652D fiber optic cable for outdoor duct, conduit and aerial communication networks.
Q: What applications is GYXTW single mode fiber optic cable suitable for?
A: It is suitable for duct, aerial and conduit applications, as well as long distance communication and local area network communication projects.
Q: What is the structure of GYXTW armored fiber cable?
A: The structure includes optical fibers, a central loose tube, water-resistant filling compound, PSP longitudinal armor, two parallel steel wire strength members and a black PE outer sheath.
Q: Can FOCC provide customized GYXTW fiber cable?
A: Yes. FOCC supports customized orders, project quotation, cable marking and packaging according to customer requirements.
Need GYXTW G652D Fiber Optic Cable for Your Project?
Send your fiber count, cable length, application environment and packaging requirements.
FOCC will provide a suitable quotation for your outdoor duct or
