Unitube Light-armored Fiber Ribbon Cable GYDXTW

 GYDXTW  central tube Optical Fiber Ribbon Cable

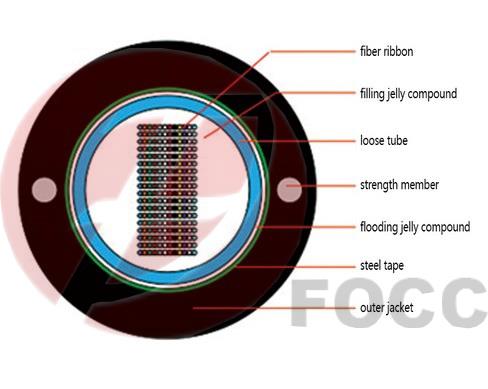

GYDXTW Fiber  optic cable is an outdoor communication optical cable of metal strength menmber of the central tube jelly-filled structure with embedding steel-polyethylene laminated shenth, consisting of the central loose tube, two parallel steel wire strength members, and sheath. The fiber ribbons are positioned in the loose tube. The tube is made of high modulus plastics (PBT) and filled with water resistant filling gel. The corrugated steel tape is longitudinally applied over the loose tube, and combined with a durable polyethylene (PE) sheath. Two parallel steel wires are embedded in two sides of PE sheath.

  Features and benefits:

• Mature ribbon technology provides good transmission performance

• Accurate fiber excess length control ensures excellent mechanical and temperature performance

• Special filling compound filled loose tubes provide perfect optical fiber protection

• All section water blocking and longitudinally corrugated steel tape armor provide good performance of moisture-proof and water block

• Two parallel steel wires provide desirable tensile strength and crush resistance

• Easy identification, branching & maintenance save splicing time and reduce project cost

• Suitable for Access network (especially in FTTC and FTTB applications), interoffice connection and CATV network

• Strict craft and raw material control enable lifespan over 25 years

  Performance:

  Applications: Suitable for long-distance communication and indoor communication Way of laying: overhead, pipeline Operating temperature: -30 ~ + 70 °C




• Optical Characteristics:

• 		G.652	G.655	50/125μm	62.5/125μm
  Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
  	@1300nm			≤1.0dB/km	≤1.0dB/km
  	@1310nm	≤0.36dB/km	≤0.40dB/km
  	@1550nm	≤0.22dB/km	≤0.23dB/km
  Bandwidth(Class A)	@850nm			≥500MHz·km	≥200MHz·km
  	@1300nm			≥1000MHz·km	≥600MHz·km
  Numerical Aperture				0.200±0.015NA	0.275±0.15NA
  Cable Cut-off Wave length		≤1260nm	≤1480nm

•  Structure and Technical Specifications

• increasad by 2fibers	Optical fiber with some	cable diameter(mm)	cable weight(kg/km)	strength long/short term(N)	crush resistabce long/short term(N/100mm)
  GYDXTW-12~24Xn	12	11.7	151	600/2000	300/1000
  GYDXTW-36~48Xn	12	13.1	182	600/2000	300/1000
  GYDXTW-60~72Xn	12	13.8	201	600/2000	300/1000
  GYDXTW-84~96Xn	12	14.4	215	600/2000	300/1000
  GYDXTW-108Xn	12	14.8	227	600/2000	300/1000
  GYDXTW-120~144Xn	12	15.7	251	600/2000	300/1000
  GYDXTW-156~168Xn	12	16.2	262	600/2000	300/1000
  GYDXTW-180~216Xn	12	17.8	316	600/3000	300/1000
  GYDXTW-240~288Xn	24	18.8	347	600/3000	300/1000
  GYDXTW-312~432Xn	24	21	419	600/3000	300/1000

• Note:1.suffix Xn denotes fiber type and see details in FOCC's cable coding illustration

•          2.the colour arrangement of fiber and tube is specified in the colour identification table.

Fiber coloure Identification of loose tube with FOCC

the fibers in cables can be identified by standard colour identification in compliance with YD/T901-2001 Standard.

Standard colour Identification

Note: A. when the fiber count of one loose tube is less than 12, the fibers are identified form the NO.1 colour on a stream.

         B.in standard colour identification, the NO.6 white colour could be replaced by nature colour,which called standard colour identification W.

The coloure Identification of loose tubes in cable

the loose rubes in cable  can be identified by pan-chromatograph

Pilot chromatograph

Pan-chromatograph

Application:

Long distance and local area network (LAN) communication.
Aerial & conduit / duct application.
