Technical Description:
FOCC provide OM4 Fiber Optic Patch Cord with Duplex LC/UPC to ST/PC connector and laser-optimizedmulti-mode fiber in fiber category OM4 (fiber type G50/125µm), with aqua color.
FOCC LC-SC OM4 Duplex Fiber Optic Patch Cords have a flame-retardant LSZH jacket. multi-mode OM4 LC-ST Duplex Fiber Optic Patch Cords are designed for the transmission of 850nm signals and are suitable forthe connection with patch panel ports or of optical transceivers with each other for example.
Features:
● Suitable for SMF or MMF Cable;
● 100% Tested and Individual Package;
● Quality design for Indoor Use;
● Low insertion and high return loss;
● Different cores are optional.

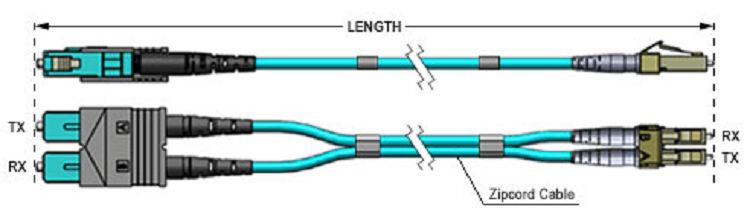

Mechanical Drawing:
| Highest Quality Components For lossless transmissions exclusively branded fibers from well-known manufacturers such as Corning,Fujikura or YOFC are used in the production process of FOCC LC-SC Duplex OM4 Fiber Optic Patch Cords. Allinstalled connectors are manufactured by brand manufacturers such as Amphenol, Diamond, Nissin Kasei or Reichle & De-Massariwith highly reliable BlueOptics Zirconia ceramic ferrule and achieve a lifetime of up to 1500 mating cycles. |
Error-free Transmission LC-SC OM4 Duplex Fiber Optic Patch Cords meet the Telcordia Requirements GR-326-Core4.4. |
FOCC multi-mode OM4 LC-ST Duplex Fiber Optic Patch Cords have an attenuation value of2.5 dB per kilometer, a low input loss and a high return loss. A Further optimization of the return loss by adjusting thepolish (UPC or 8° APC) is also possible. multi-mode OM4 LC-ST Duplex Fiber Optic Patch Cords areavailable in 0.5, 1, 2, 3, 5, 7.5, 10, 15, 20, 30 or 50 meter length. Custom lengths are also available on request. |
Application:
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Specification:
| Connector | LC/ST | Jacket OD | 2.0 mm |
| Fiber Mode | OM4 | Jacket Color | Aqua |
| Polish | UPC/UPC | Wavelength | 850/1310nm |
| Fiber Type | Duplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 50/125 |
Fiber Parameter:
|
Items |
Unit |
Specification |
|
Cladding Non-Circularity |
% |
≤2.0 |
|
Coating Diameter |
μm |
245±10 |
|
Cladding-Coating Concentricity Error |
μm |
≤1.0 |
|
Core Diameter |
μm |
62.5±2.5 |
|
Cladding Diameter |
μm |
125±1.0 |
Our advantage:
FOCC provides dedicated service from one to one from the beginning of the order, and provides strong technical team support to provide satisfactory answers for your connector solutions. We guarantee that the quality of all products is high-quality products, and we promise to replace all of them for free if quality problems occur.
