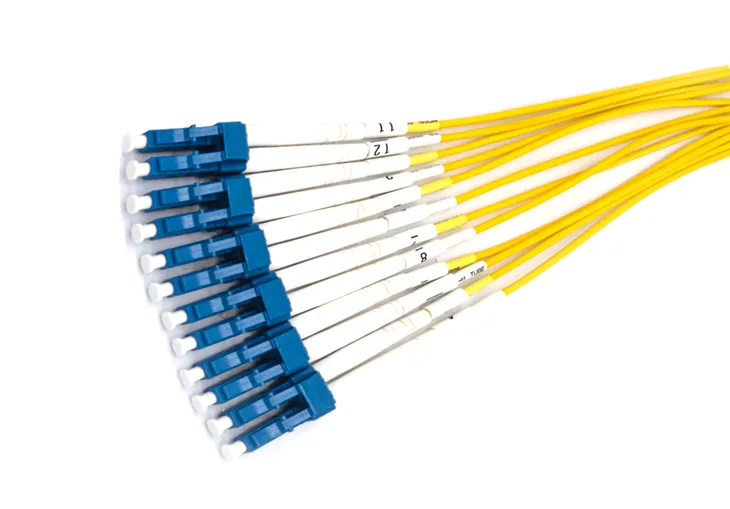

This is a 12-fiber MTP to LC breakout cable: one MTP-12 APC female connector on one end fans out to six LC UPC duplex connectors on the other. It converts a single high-density MTP/MPO backbone port into individual LC connections at a patch panel or transceiver, so you can migrate a standard duplex environment to parallel-optic cabling without adding separate fiber runs.
It is a breakout assembly - also called a harness or fan-out cable. That is different from an MTP trunk cable, which is terminated with MTP/MPO connectors on both ends and carries the backbone link between two high-density points. If you need MTP-to-MTP instead of MTP-to-LC, use the trunk version.
Key features
Factory-terminated MTP-12.
Terminated with precision MTP/MPO connectors for accurate fiber alignment and low loss.
100% IL/RL tested.
Every assembly is measured and shipped with its insertion-loss and return-loss report.
Low-loss options.
Elite grade rated at 0.35 dB max insertion loss per fiber.
Selectable polarity.
Type A, B or C wiring to match your link method.
Bend-optimized OS2 fiber.
9/125 single mode for long-distance 1310/1550 nm links.
Optional pulling eye.
Protects the MTP end when pulling through dense pathways.
Fiber and optical performance
Default fiber is OS2 single mode. The same assembly is available in OM3 and OM4 laser-optimized multimode for shorter-reach 850 nm links.
Fiber performance by grade
| Item | OS2 Single-mode 9/125 µm |
OM3 Multimode 50/125 µm |
OM4 Multimode 50/125 µm |
|---|---|---|---|
| Wavelength (nm) | 1310 / 1550 | 850 / 1300 | 850 / 1300 |
| Attenuation (dB/km) | 0.4 / 0.3 | 3.0 / 1.0 | 3.0 / 1.0 |
| Effective modal bandwidth (MHz·km) | N/A | ≥2000 @850 | ≥4700 @850 |
Connector insertion loss & return loss
Per IEC 61300-3-4 (IL) and IEC 61300-3-6 (RL)
| Connector type | Insertion Loss (IL) | Return Loss (RL) | Operating temp. |
|---|---|---|---|
| Single-mode MTP Elite | 0.10 dB typ. (all fibers) / 0.35 dB max (single fiber) | >60 dB (8° APC) | −40°C to 75°C |
| Single-mode MTP Standard | 0.25 dB typ. (all fibers) / 0.75 dB max (single fiber) | >60 dB (8° APC) | −40°C to 75°C |
| Multimode MTP Standard | 0.25 dB typ. (all fibers) / 0.75 dB max (single fiber) | >20 dB (0° flat) | −40°C to 75°C |
Multimode RL tested with the encircled-flux launch condition on 50 µm fiber at 850 nm per IEC 61280-4-1.
Mechanical and environmental
| Parameter | 8-fiber | 12-fiber |
|---|---|---|
| Min. bend radius (installation) | 5.0 mm | 5.0 mm |
| Min. bend radius (long term) | 2.5 mm | 2.5 mm |
| Max. tensile (installation) | 200 N | 200 N |
| Max. tensile (long term) | 80 N | 80 N |
| Cable outer diameter | 2.5 × 4.1 mm | 2.5 × 5.2 mm |
| Weight | 13.0 kg/km | 16.0 kg/km |
| Operating temperature | −20°C to +60°C | |
Assembly Structure Illustration:
Polarity and wire map
Polarity defines how fibers map from the MTP end to the LC end.
- Type A (straight): key-up to key-down, position 1 → 1 through 12 → 12.
- Type B (reversed): key-up to key-up, position 1 → 12; the most common choice for MTP-to-LC breakout in duplex transceiver links.
- Type C (pairs-flipped): adjacent fiber pairs are swapped at one end.
Applications and compatibility
MTP/MPO backbone to LC patch panels in high-density data center cabling.
Switch-to-patch-panel and equipment-room single-mode connections.
Migration from duplex links toward parallel optics such as 40G QSFP-SR4 and 100G QSFP28-SR4 architectures.
Mates through MTP/MPO adapters at the panel or cassette.
- The cable itself does not set the link speed or reach. Actual data rate and distance depend on the transceivers, fiber grade, connector loss and total link budget - size the assembly to match those.
Available configurations
The 12-fiber OS2 build is offered across fiber counts and connectors - for example an 8-fiber MTP to LC breakout and a 24-fiber MTP to LC OM3 breakout. An MPO female to LC UPC OS2 variant is also available if your ports use the MPO designation.
| Option | Choices |
|---|---|
| Fiber count | 8 / 12 / 24 |
| Connector A | MTP/MPO 8, 12 or 24 |
| Connector B | LC duplex / LC simplex / SC / FC / ST |
| Gender | Female / Male |
| Polish | APC / UPC |
| Polarity | Type A / B / C |
| Fiber | OS2 / OM3 / OM4 |
| Jacket | LSZH / OFNR / OFNP |
Housing introduction
Create a comprehensive solution for efficient human theft manag
Quality and testing
Assemblies are made to order and 100% tested. Each unit is packaged individually in a static-free bag with its test results included. Standard checks:
- End-face inspection
- Insertion-loss and return-loss measurement
- Polarity and wire-map verification
- Visual inspection before packing
Standards and compliance
- IEC 61300-3-4 - insertion-loss measurement
- IEC 61300-3-6 - return-loss measurement
- IEC 61280-4-1 - encircled-flux launch (multimode)
- RoHS / REACH material compliance
Recommended buffer fiber and color-coded connectors
|
Cable Type |
Single-mode MTP® Elite® |
Single-mode MTP® Standard |
Multimode MTP® Elite® |
Multimode MTP® Standard |
|
Bare Ribbon |
Mustard Color |
Green Color |
Aqua Color |
Beige Color |
|
Flat ribbon Cordage |
||||
|
Cable Ø 2.0mm |
||||
|
Cable Ø 3.0mm |
||||
|
Cable Ø 3.6mm |
||||
|
Cable Ø 4.5mm |
||||
|
Cable Ø 5.0mm |
||||
|
Cable Ø 5.5mm |
Ordering information
Each unit ships in an individual static-free bag with test report. Build a part number in this order:
- Fiber Count – Connector A – Gender – Polish – Connector B – Polarity – Fiber – Jacket – Length
Example: 12F – MTP – F – APC – 6×LC Duplex – TypeB – OS2 – LSZH – 3m
Length options
| Item | Range |
|---|---|
| Overall cable length | 1–80 m (custom) |
| Fan-out leg length | 0.3 m / 0.5 m / 1 m / 2 m, or custom on request |
| Fan-out leg tubing | 900 µm / 2.0 mm / 3.0 mm |
Delivery in 7–15 business days. MOQ 1 piece. Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram.
