Product description
MPO/MTP connectors place multiple fiber channels on one rectangular ferrule. A small particle on that ferrule can affect more than one channel, increase insertion loss, create unstable test results or transfer contamination to the mating connector. Cleaning therefore needs a tool that covers the multi-fiber end face evenly and can be used consistently in a high-density rack.

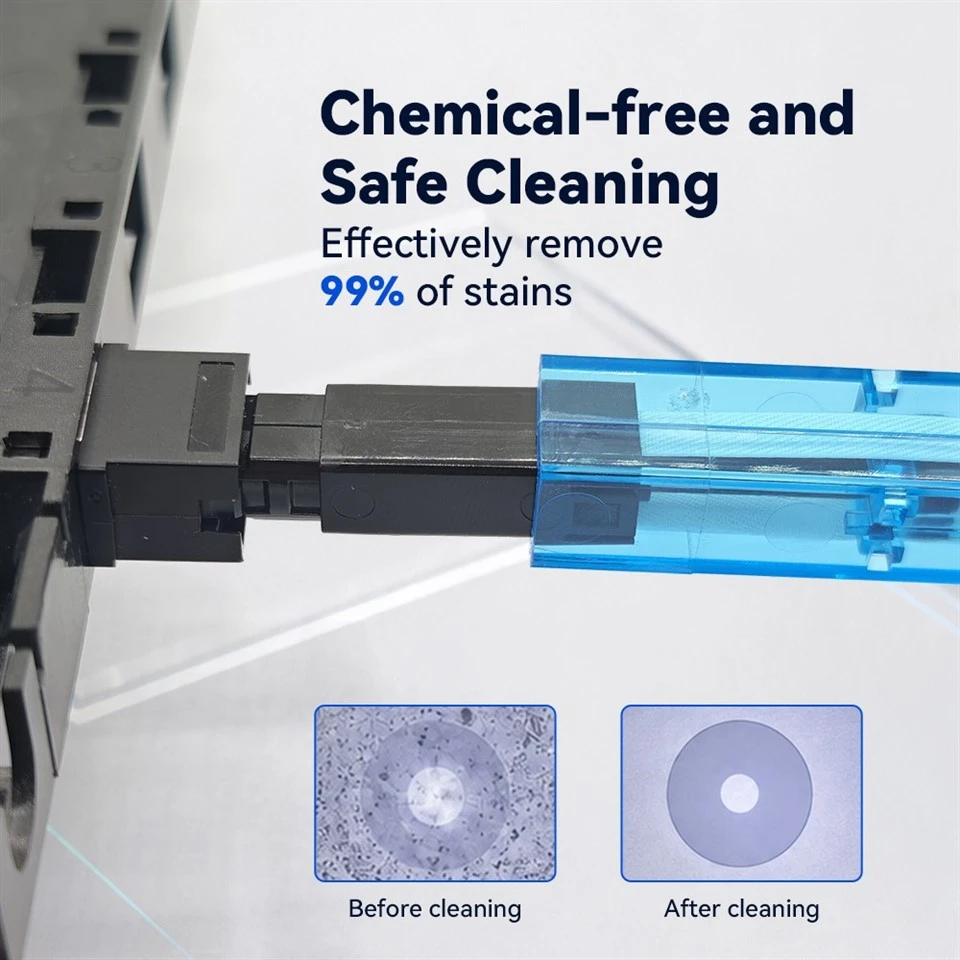

The FOCC MPO/MTP Fiber Optic Connector Cleaning Pen provides a controlled dry-cleaning step before connector mating and optical measurement. The operator aligns the guide cover with the connector, applies a light push, and moves the cleaning surface across the ferrule. The internal tape mechanism advances the cleaning material so the next operation uses a fresh section instead of a previously loaded area. The transparent body lets the operator view the tape condition, while the protective cap helps keep the cleaning head covered between uses.
The anti-static resin body is intended to reduce the risk of attracting loose particles after cleaning. The pen format is small enough for a technician's tool case and practical for moves, adds, changes, acceptance testing, repair work and routine cleaning of MPO/MTP panels. For critical links, the cleaner should be used with an MPO/MTP inspection scope or end-face detector and the end face should be re-inspected before mating.
Main product benefits
- Dedicated multi-fiber coverage:The cleaning head is designed around the rectangular MPO/MTP ferrule rather than a single-fiber LC, SC or FC interface. This helps the operator clean the fiber array in one guided operation.

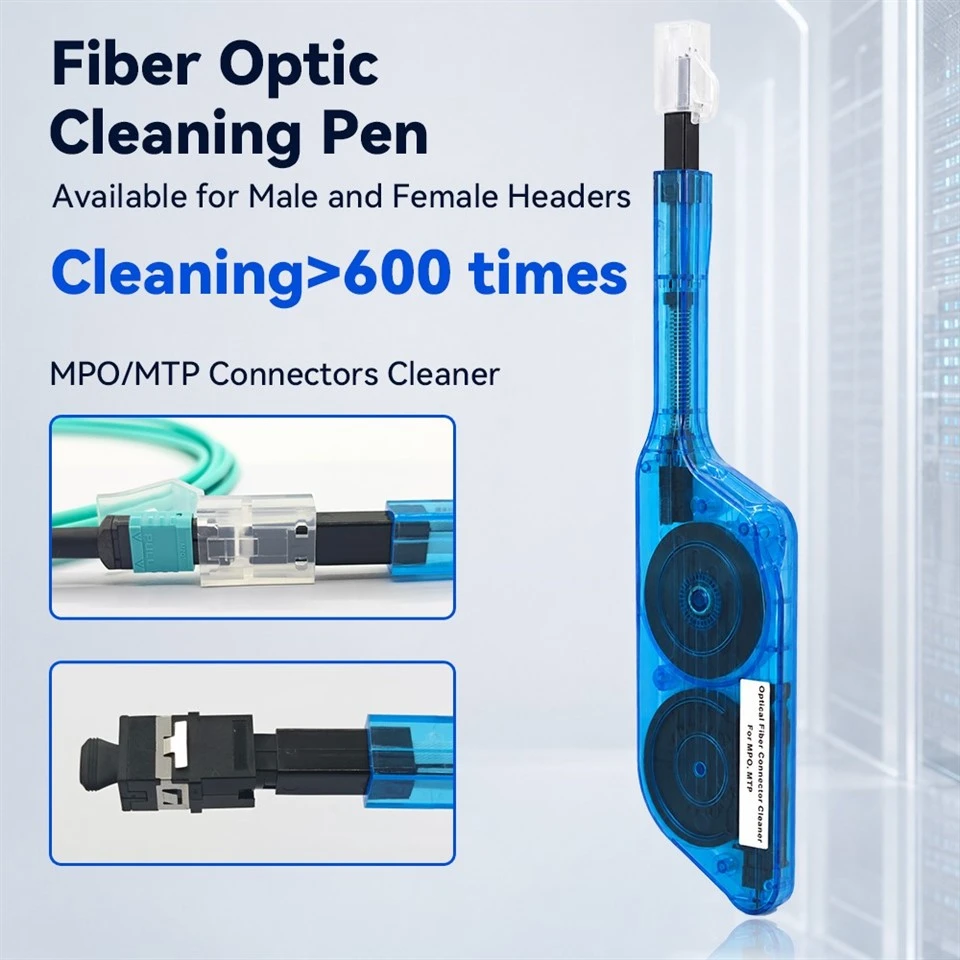

- Support for male and female connector work:The image set identifies both male and female headers. This makes the tool suitable for connector assemblies, trunk links, cassettes, patch panels and transceiver-side maintenance when the selected head matches the connector geometry.

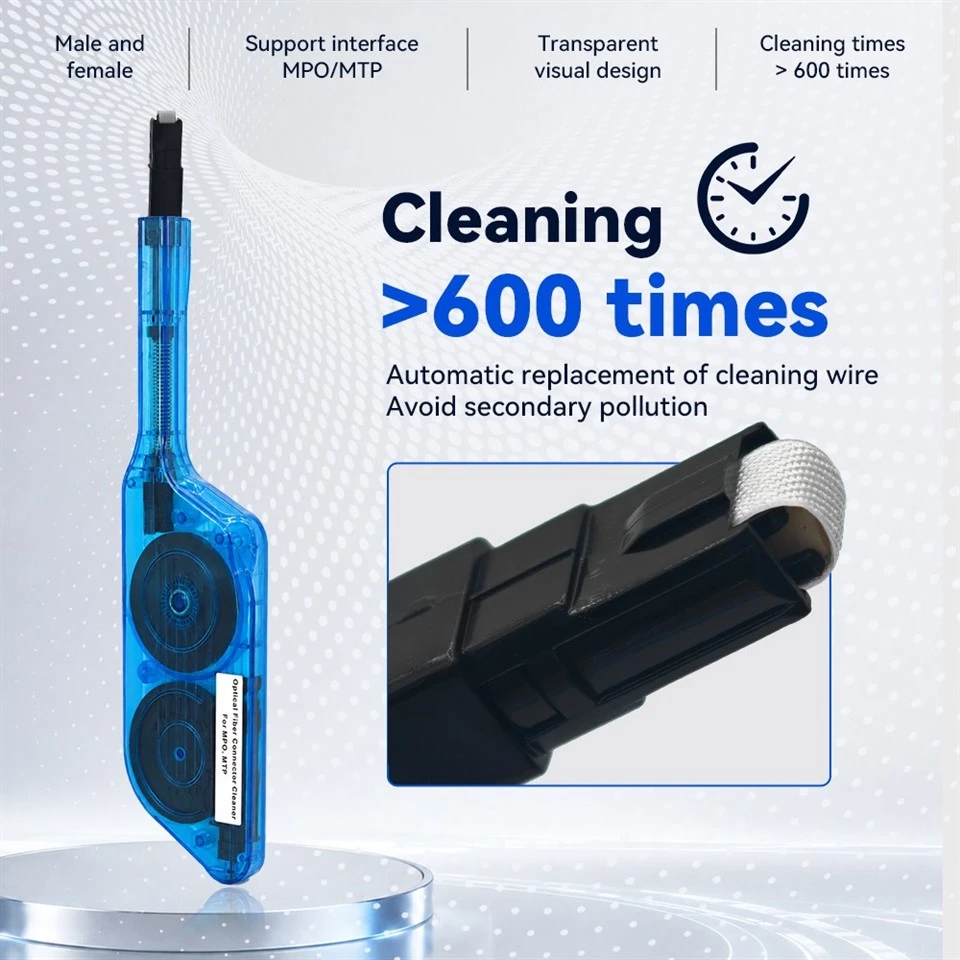

- Fresh tape for repeated operations:The internal reel and automatic tape advance reduce the chance of reusing a loaded cleaning area. This supports a repeatable workflow when a technician must clean a row of high-density ports.
- Anti-static housing:The anti-static resin housing is intended to reduce static-related attraction of airborne dust after cleaning. It does not replace end-face inspection or a clean handling procedure.
- No liquid handling in routine dry cleaning:The pen is positioned as a dry mechanical cleaner, so the technician does not need to carry or dispense cleaning fluid for the normal operation. For oil, salt residue or stubborn film, use the cleaning method approved for the connector and re-inspect the end face rather than forcing the pen repeatedly.

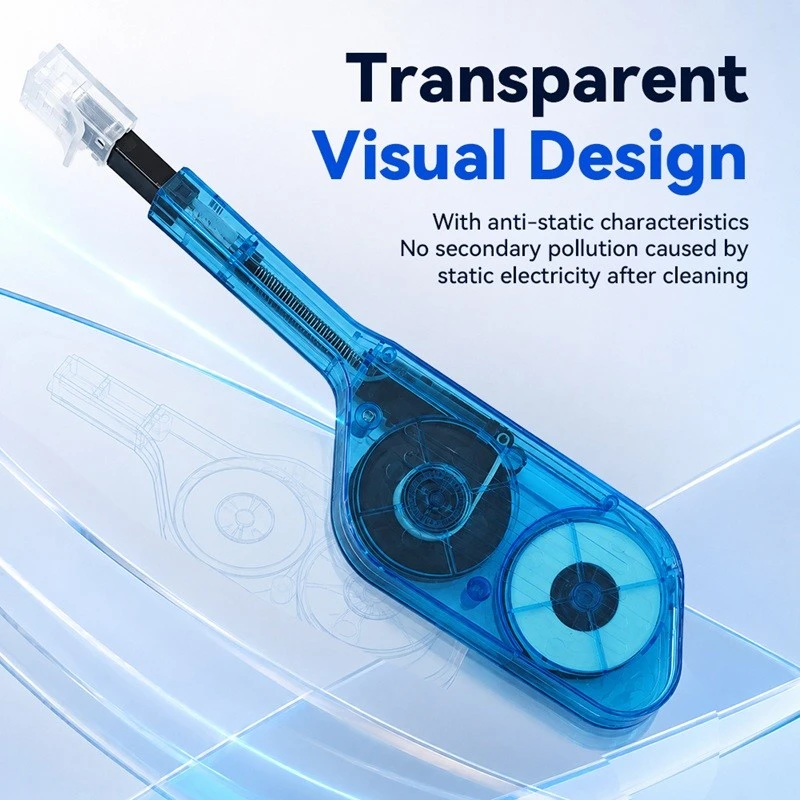

- Transparent visual design:The transparent body and window allow the operator to see the tape path and its condition. This helps identify when the tape is loaded or the consumable needs replacement.

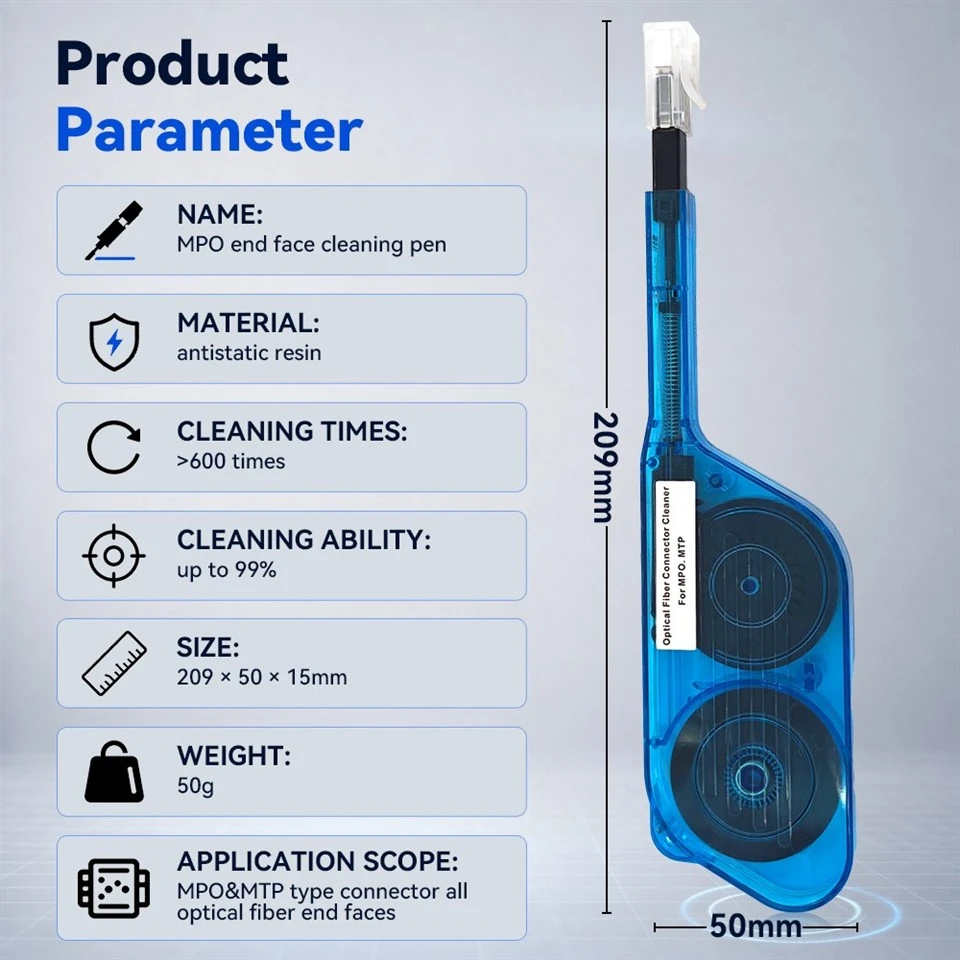

- Compact field format:The approximately 209 × 50 × 15 mm body and approximately 50 g weight make the tool easy to keep in a fiber optic installation kit, test case or maintenance pouch.
Product structure and function
| Visible Component | Function |
|---|---|
| Protective cap | Covers the cleaning head during storage and transport |
| Guide cover | Helps align the cleaning head with the MPO/MTP connector interface |
| Cleaning head | Contacts the multi-fiber end face and transfers contamination to the tape |
| Anti-static resin housing | Provides the compact body and anti-static product positioning stated in the images |
| Cleaning-tape reel | Stores the unused and used sections of cleaning material |
| Automatic tape advance mechanism | Presents a new cleaning section after operation; exact mechanism to be confirmed |
| Transparent window/body | Allows a quick visual check of the tape condition |
| Grip body | Gives the technician a stable surface for the light-push operation |
Recommended operating procedure
1. Keep the work area clean and cap any connectors that are not being serviced.
2. Inspect the MPO/MTP end face with a suitable multi-fiber inspection scope or end-face detector.
3. Confirm that the cleaner head and guide cover match the connector interface, including male/female guide-pin configuration.
4. Remove the protective cap without touching the cleaning surface.
5. Seat the guide cover squarely on the MPO/MTP connector.
6. Apply a light, controlled push in the direction specified by the product instruction.
7. Wait for the completion click or prompt shown in the product images, then release the tool.
8. Remove the cleaner without twisting or applying side load to the ferrule.
9. Re-inspect the end face before mating. If contamination remains, use a fresh cleaning operation or the approved wet-to-dry process rather than scrubbing repeatedly.
10. Replace the protective cap and store the pen in a dry, dust-controlled location.
Compatibility and Application Map
| Application | Why the MPO/MTP Cleaner Is Useful | Pair With |
|---|---|---|
| Data center patch panels | Cleans multi-fiber ferrules before patching and MAC work | MPO/MTP inspection scope, patch panel or cassette |
| MTP/MPO trunk cabling | Helps protect multiple channels before trunk mating | MTP/MPO trunk cable, polarity label and inspection record |
| MPO/MTP cassettes | Supports repeated cleaning at high-density module interfaces | MPO/MTP cassette and adapter panel |
| 40G/100G parallel optics | Reduces contamination risk across parallel optical channels | Matching transceiver, reference cord and power test set |
| 400G/800G migration work | Supports the cleaning step on high-density multi-fiber interfaces | MPO-8, MPO-12, MPO-16 or MPO-24 system as specified |
| Production and assembly inspection | Provides a repeatable pre-test cleaning action | End-face detector, insertion-loss and return-loss test equipment |
| Field repair and maintenance | Fits a portable fiber tool kit for moves, adds and changes | Visual fault locator, optical power meter and spare caps |
| Telecom room and structured cabling | Helps technicians clean trunk and breakout interfaces before acceptance | MPO/MTP harness cable, breakout module and inspection scope |
The cleaner is intended for MPO/MTP multi-fiber interfaces. It should not be presented as a universal cleaner for LC, SC, FC, ST, MU or transceiver ports unless a separate compatible head or model is supplied.
OEM, packaging and supply options
The following options can be offered as configurable items and should be confirmed per order:
- Private-label body color, logo printing or label application.
- Individual polybag, blister, carton or tool-kit packaging.
- Connector-specific head or guide configuration for the buyer's MPO/MTP interface.
- Replacement cleaning-tape refill or replacement pen programme.
- Mixed cartons for MPO/MTP cleaners and other FOCC fiber tool kit items.
- Product label with model number, batch number and cleaning-cycle reference.
- Pre-shipment sample approval and batch photos.
- Custom documentation including operating instructions, packing list and inspection record.
FAQ
What is an MPO/MTP cleaning pen used for?
It is used to remove contamination from the multi-fiber end face of an MPO/MTP connector before mating, optical testing or acceptance inspection.
Can this cleaner be used on both MPO male and female connectors?
The supplied images state support for male and female headers. The final order should confirm whether one model covers both interfaces or whether separate guide/head configurations are supplied.
Is the cleaning process wet or dry?
The product is positioned as a dry mechanical cleaner. It is designed for routine removal of dust and surface contamination without applying liquid. Stubborn oil or film may require a connector-approved wet-to-dry process followed by re-inspection.
How many times can one pen be used?
The supplied images state more than 600 cleaning cycles. Actual service life depends on contamination level, connector condition, operator pressure and the factory's defined test method.
Does it replace an MPO/MTP inspection scope?
No. Cleaning and inspection serve different purposes. Use the pen to clean, then inspect the end face again before mating or certification.
Can I use it for LC or SC connectors?
Use a cleaner designed for the correct ferrule and interface. This product is intended for MPO/MTP multi-fiber connectors; request a separate LC, SC, FC, ST or MU model when needed.
Does it work for 400G and 800G cabling?
The tool is intended for MPO/MTP interfaces used in high-density parallel-optics systems. Compatibility still depends on the connector format, fiber count and the exact transceiver or cabling assembly.
Manufacturer and technical background
About FOCC
FOCC Fiber Co., Limited presents itself as a fiber-optic communication manufacturer and OEM/ODM supplier founded in 2014. Its public product range covers fiber-optic connectors, MTP/MPO patch cords and cable assemblies, adapters, FTTA products, fiber-tool kits and related production equipment. This MPO/MTP cleaning pen is positioned within that wider connector, cable-assembly and field-maintenance workflow rather than as an unrelated general-purpose cleaning accessory.
FOCC's public company profile describes a Shenzhen sales operation, a production base in Guangzhou, clean-workshop capacity and export experience. Buyers who need these details for supplier qualification should request the current company profile, factory address, certificate copies and product-specific quality records with the quotation. Company-level information can change, so the current documents should take precedence over a static web page.
Experience-based use cases
The pen is intended for the kinds of work in which technicians repeatedly handle multi-fiber interfaces:
● Moves, adds and changes in high-density data centers.
● Cleaning before MPO/MTP cassette or patch-panel mating.
● Trunk-cable and harness-cable installation.
● Pre-test cleaning before insertion-loss or return-loss measurement.
● Transceiver-side maintenance for parallel-optics links.
● Field repair, acceptance inspection and troubleshooting.
● Fiber-tool-kit replenishment for telecom contractors and system integrators.
