Welcome to buy the complete fiber optic installation & testing tool kit with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.
End-to-End Fiber Deployment Workflow: From Preparation to Testing & Maintenance

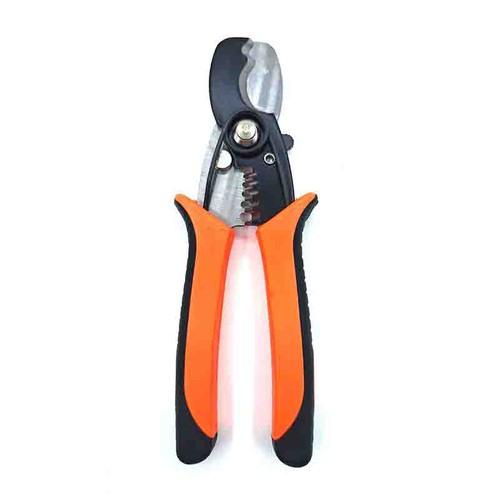

1.Fiber Prepar
In actual construction, pretreatment determines the upper limit of subsequent connection quality. This tool kit is equipped with multi-specification wire stripping tools (supporting 250μm bare fiber, 900μm tight-buffered layer, and 3.0mm sheath), enabling layer-by-layer stripping without damaging the fiber core structure. Compared to single-specification tools, this multi-level adaptation design significantly reduces the risk of fiber core scratches, ensures the integrity of the subsequent cut end face, and lays the foundation for low-loss links.

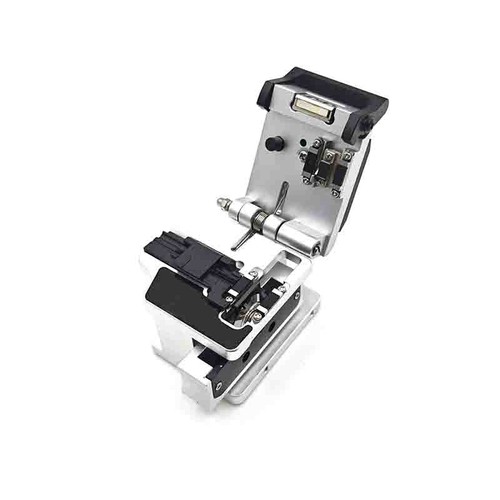

2.Precision Cleaving
The quality of fiber optic cleaving directly affects insertion loss and return loss. This kit is equipped with a high-precision fiber optic cleaver, enabling cleaving angle control of ≤0.5° to ensure a smooth, burr-free end face. A stable cross-section not only improves fusion splicing success rate but also effectively reduces signal attenuation in cold splicing applications. For network deployments requiring high reliability, this is a critical factor determining link stability.
3.Termination & Connection
During termination, the toolkit supports quick connector installation and mating with standard fiber optic patch cords. Precise cutting and standardized operation ensure a stable physical contact interface, reducing link fluctuations caused by poor contact. This module is suitable for FTTH home installations, data center cabling, and outdoor fiber optic patch cord deployments, balancing efficiency and consistency.

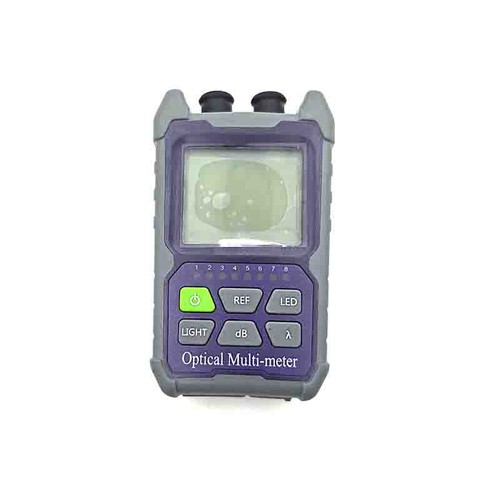

4.Fault Detection
Complete installation involves more than just connection; it also includes verification. The kit integrates a virtual light flint (VFL) and an optical power meter (OPM), enabling dual detection capabilities from physical breakpoint location to link loss testing. Installation personnel can quickly assess connection quality on-site, preventing hidden faults from reaching the delivery stage and significantly reducing rework rates.
5.Cleaning & Maintenance
End-face contamination is a common cause of high insertion loss. This tool kit comes with professional cleaning supplies (lint-free wiping paper + alcohol) for end-face treatment before and after connection. A standardized cleaning process effectively avoids the impact of dust and oil on signal transmission, extending the stable operation cycle of the link, and is especially suitable for outdoor and complex environment applications.
Competitive Comparison: Engineering-Grade Fiber Tool Kit vs Standard Kits
| Evaluation Dimension | Your Complete Tool Kit | Standard Market Tool Kits |
|---|---|---|
| Workflow Coverage | Full-cycle: Preparation → Cleaving → Connection → Testing → Maintenance | Partial: Usually stops at installation |
| Fiber Preparation Capability | Multi-layer stripping (250μm / 900μm / 3.0mm) | Limited compatibility, often single-purpose |
| Cleaving Accuracy | High precision (≤0.5° cleave angle) | Basic cleavers, inconsistent end-face quality |
| Termination Reliability | Stable connection with reduced insertion loss | Higher risk of connection instability |
| Testing Capability | Integrated OPM + VFL for real-time validation | No testing tools included |
| Fault Detection | Immediate fault localization (visual + power measurement) | Requires additional equipment purchase |
| Cleaning System | Standardized cleaning process included | Often ignored or not included |
| Tool Organization | Engineered tool case + labeling support | Basic storage only |
| Application Range | FTTH / Outdoor fiber patch cable / Network maintenance | Mainly entry-level installation |
| Rework Risk | Reduced through on-site testing | Higher due to lack of validation |
| Procurement Efficiency | One-time purchase, no secondary sourcing | Multiple purchases required |
FTTH Deployment & Outdoor Fiber Installation
Project Background
A regional ISP contractor was tasked with deploying an FTTH network across a mixed urban–suburban environment, including indoor routing, outdoor fiber patch cable connections, and last-mile user access.
Challenges included:
- Inconsistent fiber end-face quality leading to high insertion loss
- Lack of on-site testing tools, causing delayed acceptance
- Frequent rework due to undetected connection faults
- Harsh outdoor conditions affecting installation stability
In a typical FTTH and outdoor fiber deployment project, contractors often face inconsistent connection quality, hidden faults, and repeated rework due to the lack of standardized tools and on-site testing capability. By adopting a complete fiber optic installation and testing tool kit, the engineering team was able to streamline the entire workflow-from fiber preparation and precision cleaving to termination, real-time fault detection, and final cleaning. Multi-spec stripping tools ensured clean fiber exposure without damage, while high-precision cleaving (≤0.5°) delivered stable end-face geometry, directly reducing insertion loss. During installation, integrated VFL and optical power meter enabled immediate verification of link integrity, eliminating blind operations and accelerating troubleshooting. Standardized cleaning further minimized contamination-related signal degradation. As a result, the project achieved faster deployment, higher acceptance pass rates, and improved long-term network stability, demonstrating that a complete tool kit functions not just as a set of tools, but as a full-cycle fiber deployment and validation system.
FAQ – Fiber Optic Installation & Testing Tool Kit
Q1: Does this tool kit include everything required for a complete fiber installation workflow?
Yes. The kit is designed to cover the full deployment cycle, including fiber preparation, precision cleaving, termination support, on-site testing, and cleaning. It eliminates the need for secondary purchases and enables technicians to complete installation and validation in one continuous process.
Q2: Is this kit suitable for outdoor fiber optic installation?
It is engineered for both indoor and outdoor applications. The tools are selected to handle typical field conditions such as variable temperatures, dust exposure, and rugged handling, making it suitable for outdoor fiber patch cable deployment and FTTH projects.
Q3: What level of cleaving accuracy can be achieved?
The included cleaver is designed to achieve a cleaving angle of ≤0.5°, ensuring a smooth and perpendicular fiber end face. This level of precision helps reduce insertion loss and improves overall connection reliability.
Q4: Can real-time testing be performed during installation?
Yes. The integration of a Visual Fault Locator (VFL) and Optical Power Meter (OPM) allows technicians to perform immediate fault detection and link loss measurement on-site, ensuring that each connection meets performance requirements before project completion.
Q5: Do I need additional equipment for project acceptance or maintenance?
For most standard FTTH and fiber deployment scenarios, no additional equipment is required. The kit already includes essential tools for installation and validation. However, for advanced diagnostics (such as long-distance fault analysis), supplementary devices like OTDR can be added if needed.
