● Technical Information:
The single-mode and multimode MPO products are multi-fiber connectors used in high-density
backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings. MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12 or 24 fibers. MTP®/MPO multi-fiber trunk cables are usually in mini-round cables and ribbon cables, with fanout kits broken down into 2~24 fiber 0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc. Cable total length, fanout length, connector type are customized.
● Features:
► Precision Molded MT Ferrule;
► Compliance with the 40 and 100Gbps Protocols;
► 100% Factory Tested.
● The basic division of MTP® connectors:
Type and Color | Insertion | Optical | Operating |
Single-mode MTP® Elite® Connector | 0.10 dB Typical (All Fibers) 0.35 dB Maximum (Single Fiber)1 | > 60 dB (8°Angle Polished)2 | -40℃ to 75℃ |
Single-mode MTP® Standard Connector | 0.25 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)1 | > 60 dB (8°Angle Polished)2 | -40℃ to 75℃ |
Multimode MTP® Standard Connector | 0.25 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)1,3 | > 20 dB (0°Flat Polished)2,3 | -40℃ to 75℃ |
1 IL test according to IEC 61300-3-4; | |||
● Recommended buffer fiber and color-coded connectors:
Cable Type | Single-mode MTP® Elite® | Single-mode MTP® Standard | Multimode MTP® Elite® | Multimode MTP® Standard |
Bare Ribbon |
Mustard Color |
Green Color |
Aqua Color |
Beige Color |
Flat ribbon Cordage | ||||
Cable Ø 2.0mm | ||||
Cable Ø 3.0mm | ||||
Cable Ø 3.6mm | ||||
Cable Ø 4.5mm | ||||
Cable Ø 5.0mm | ||||
Cable Ø 5.5mm |

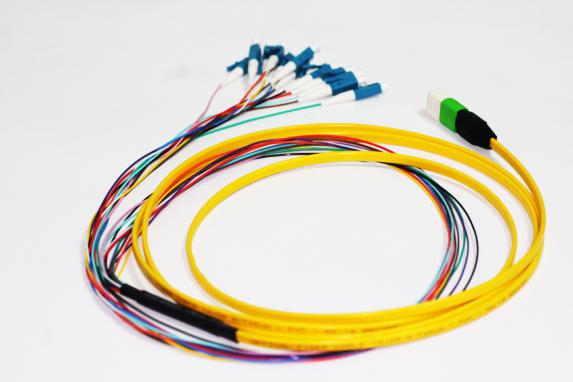

● More MTP® / MPO Fanout Family:

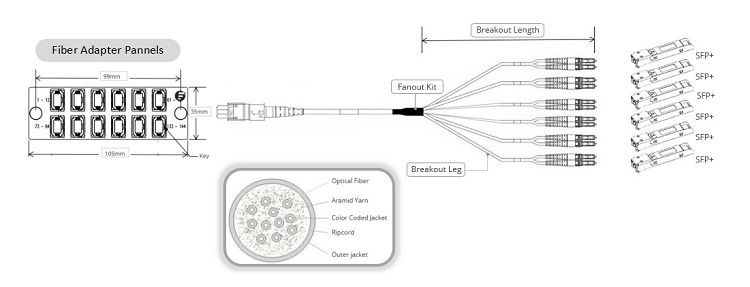

● Typical applications and wire map:
● Our Standard Plant:

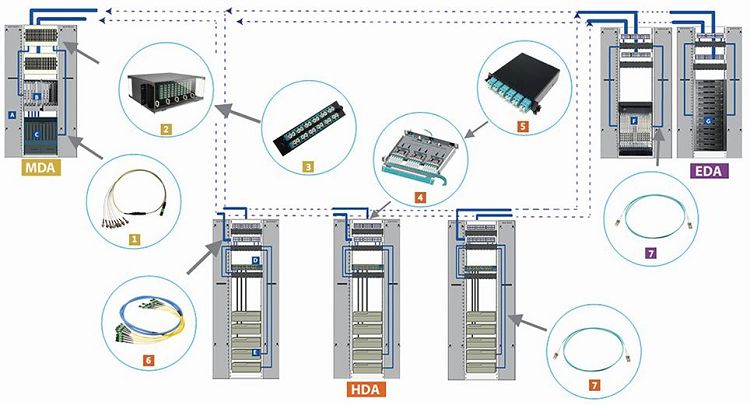

● High Density MTP® / MPO Cabling System In Dada Center:
