Product Overview
This ODVA waterproof connector is designed to protect fiber optic connections in harsh or outdoor environments. The connector body uses a round threaded mounting structure that can be installed on an enclosure, equipment panel, junction box, terminal box, or outdoor fiber distribution device.
The front side provides an ODVA waterproof interface with a screw-on protective cap. The rear side contains an SC optical adapter interface, allowing standard SC patch cords or internal fiber jumpers to connect inside the equipment. The external cap and sealing design help protect the optical port when the connector is not in use.
This product is commonly used in FTTA, outdoor fiber access, wireless base station equipment, industrial Ethernet, optical monitoring systems, and outdoor communication cabinets.
Key Features
- ODVA-style waterproof circular connector structure

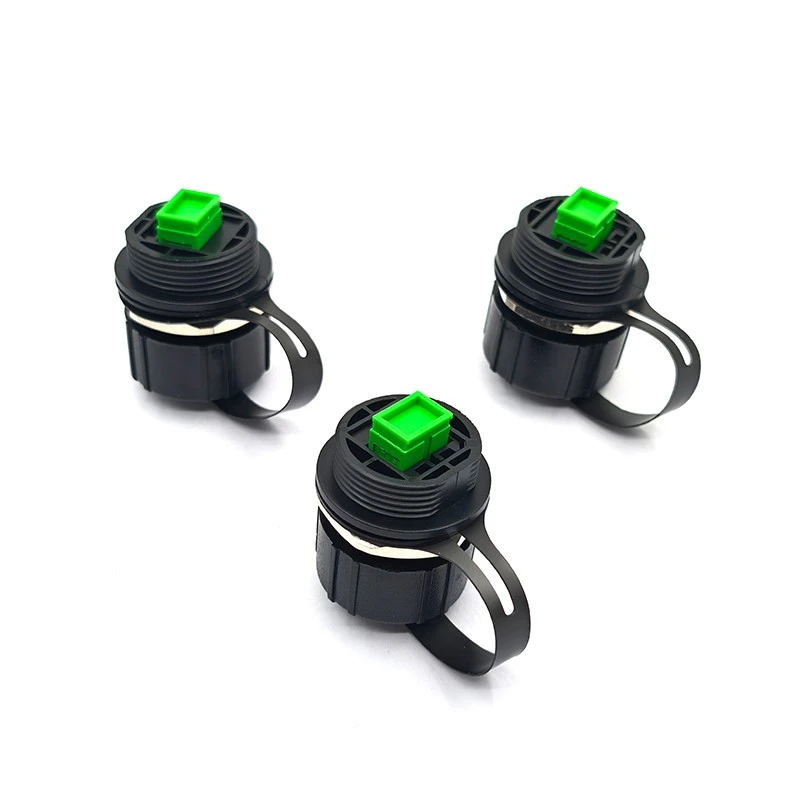

- Built-in SC fiber optic adapter interface
- SC/APC green adapter shown in supplied product photos
- Panel-mount design with external thread and locking nut
- Tethered protective dust cap helps prevent cap loss during installation
- Sealing ring supports waterproof and dustproof installation
- Compact rugged housing suitable for outdoor cabinets and terminal boxes
- Easy connection and disconnection for field deployment
- Suitable for pre-terminated fiber cable assemblies and equipment ports
- Available for OEM/ODM customization according to project requirements
Structure Description
| Part | Description |
|---|---|
| Waterproof outer housing | Rugged ODVA-style circular shell for outdoor protection |
| SC adapter | Internal SC optical adapter, green SC/APC version shown in photos |
| Threaded mounting body | Allows panel-mounted installation on equipment or enclosure walls |
| Locking nut | Metal hex nut secures the connector to the mounting panel |
| Sealing ring | Helps improve waterproof and dustproof performance after installation |
| Dust cap | Protects the optical interface when not connected |
| Tether strap | Connects dust cap to the body to prevent loss |
| Front coupling structure | Supports secure mating with compatible waterproof connector assemblies |
Main Selling Points
Rugged Outdoor Protection
The connector is built with a waterproof housing and protective cap, making it suitable for outdoor fiber access points and exposed equipment interfaces. The sealed structure helps protect the optical connection from dust, rain, and environmental contamination.
SC Interface Compatibility
The supplied photos show a green SC adapter interface, suitable for SC/APC fiber connections. SC/UPC, simplex, duplex, or other adapter configurations may be available according to project requirements.

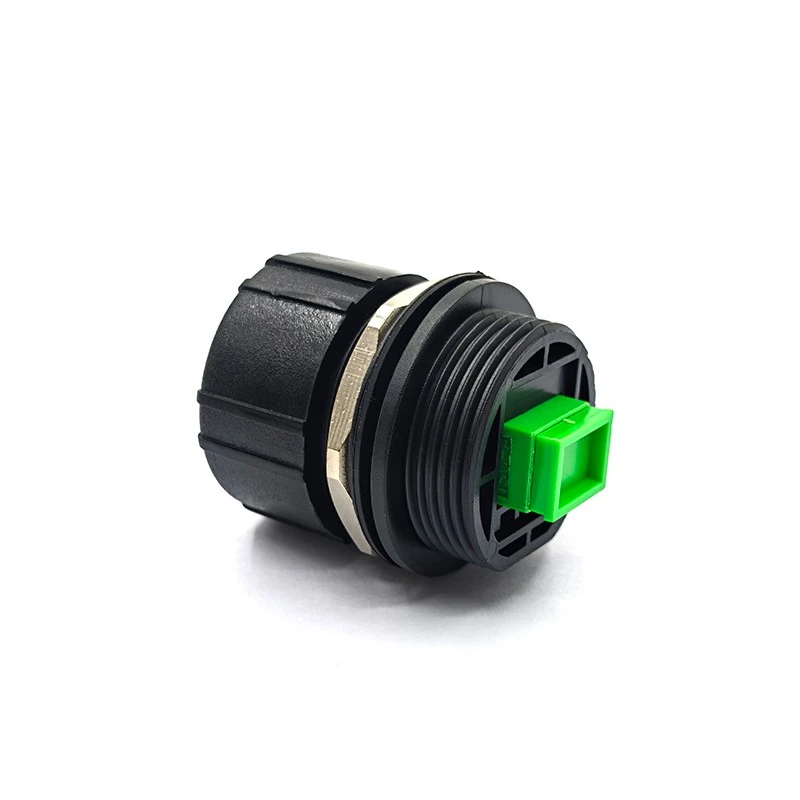

Panel-Mount Installation
The threaded body and locking nut allow the connector to be mounted directly onto equipment panels, outdoor boxes, communication cabinets, or fiber distribution terminals. This provides a clean and reliable external optical access port.

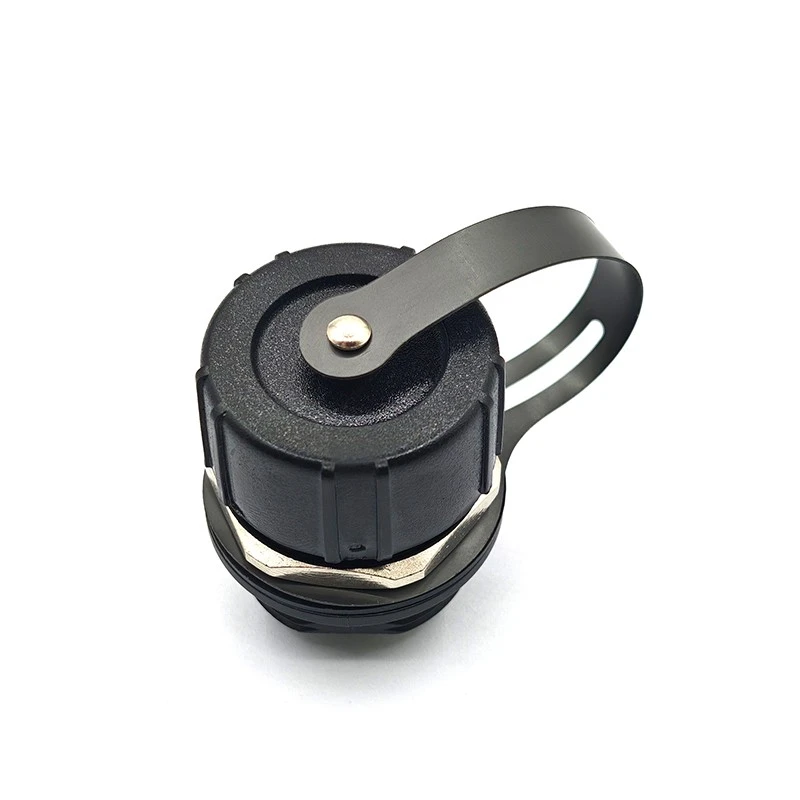

Protective Dust Cap with Tether
The integrated dust cap helps protect the connector interface during transport, storage, and field operation. The cap is connected to the housing with a flexible strap, reducing the risk of losing the cap during installation or maintenance.
Suitable for OEM Projects
The connector can be supplied as a standalone adapter socket or integrated into customized waterproof fiber cable assemblies, patch cords, terminal boxes, or outdoor equipment solutions.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | ODVA waterproof fiber optic connector / adapter socket |
| Fiber Interface | SC adapter |
| Connector Polish | SC/APC shown in photos; SC/UPC optional |
| Adapter Color | Green for SC/APC, blue for SC/UPC optional |
| Installation Type | Panel mount |
| Mounting Method | Threaded body with locking nut |
| Protection Design | Waterproof housing with dust cap and sealing ring |
| Cap Type | Screw-on protective cap with tether |
| Housing Color | Black |
| Application Environment | Outdoor / indoor harsh environment |
| Fiber Mode | Single mode or multimode available according to adapter type |
| Port Type | Simplex SC shown; other configurations subject to confirmation |
| Waterproof Grade | Project specification to be confirmed, commonly supplied for outdoor waterproof applications |
| Material | Engineering plastic housing with metal locking nut, exact material can be confirmed by requirement |
| Customization | Connector type, adapter type, cable assembly, length, label, packaging |
Optical Performance
The final optical parameters depend on the internal SC adapter and matched fiber connector assembly. Typical values can be supplied according to project requirements.
| Parameter | Typical Option |
|---|---|
| Insertion Loss | Low-loss SC adapter/connector assembly available |
| Return Loss | APC or UPC version available |
| Fiber Type | G652D, G657A1, G657A2, OM3, OM4 optional |
| Connector Type | SC/APC, SC/UPC optional |
| Durability | Suitable for repeated field connection when properly used |
| Testing | Insertion loss and return loss testing available before shipment |
Product Advantages
- Outdoor-ready design: The waterproof housing, sealing ring, and protective cap make the connector suitable for exposed or semi-exposed fiber installation environments.
- Reliable panel fixing: The threaded body and metal locking nut provide stable installation on equipment panels or enclosure walls.
- Convenient maintenance:The SC interface allows standard patch cord connection inside the enclosure, making replacement and field maintenance easier.
- Clean optical protection:The cap protects the optical interface from dust and contamination when the port is unused.
- Project flexibility:The connector can be matched with SC/APC or SC/UPC interfaces and supplied as part of customized fiber cable assemblies.
FAQ
What type of fiber connector is used inside this ODVA waterproof connector?
The supplied photos show an SC adapter interface. The green color indicates SC/APC configuration. SC/UPC can also be supplied if required.
Is this connector suitable for outdoor use?
Yes. The product is designed with a waterproof-style ODVA housing, sealing ring, threaded panel mount, and protective dust cap, making it suitable for outdoor communication equipment and harsh-environment fiber applications.
Can it be mounted on a fiber distribution box or outdoor cabinet?
Yes. The threaded body and locking nut are designed for panel-mounted installation on boxes, cabinets, equipment panels, and terminal enclosures.
Can the connector be supplied with cable?
Yes. It can be supplied as a connector/adaptor socket only, or integrated into a customized waterproof fiber optic cable assembly.
What is the difference between SC/APC and SC/UPC?
SC/APC usually uses a green connector and angled polish, commonly used where higher return loss performance is required. SC/UPC usually uses a blue connector and is widely used in general optical network connections.
Can the waterproof grade be customized or confirmed before order?
Yes. The exact waterproof grade and test requirements should be confirmed according to the customer's application, installation method, and matched connector assembly.
