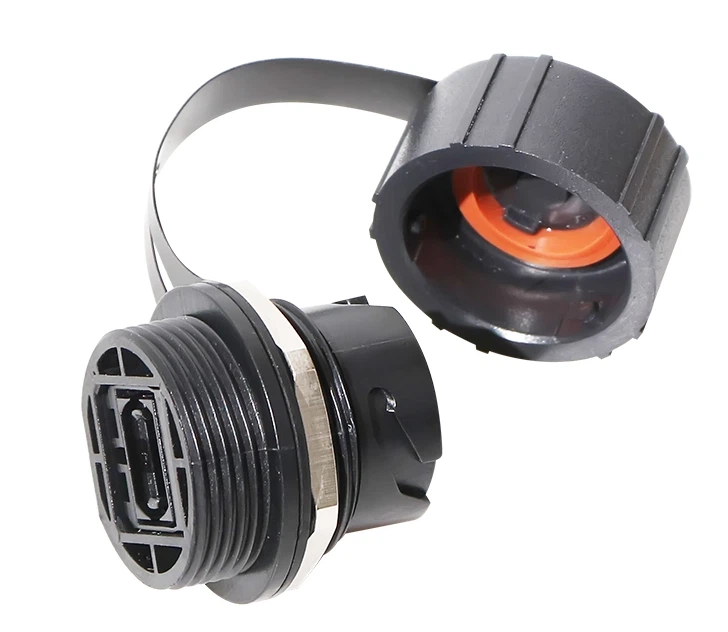

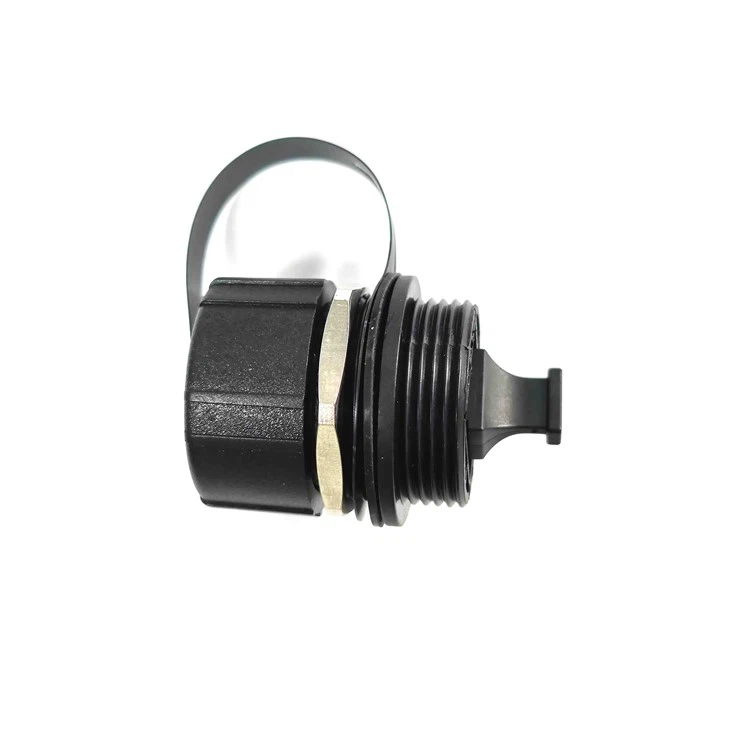

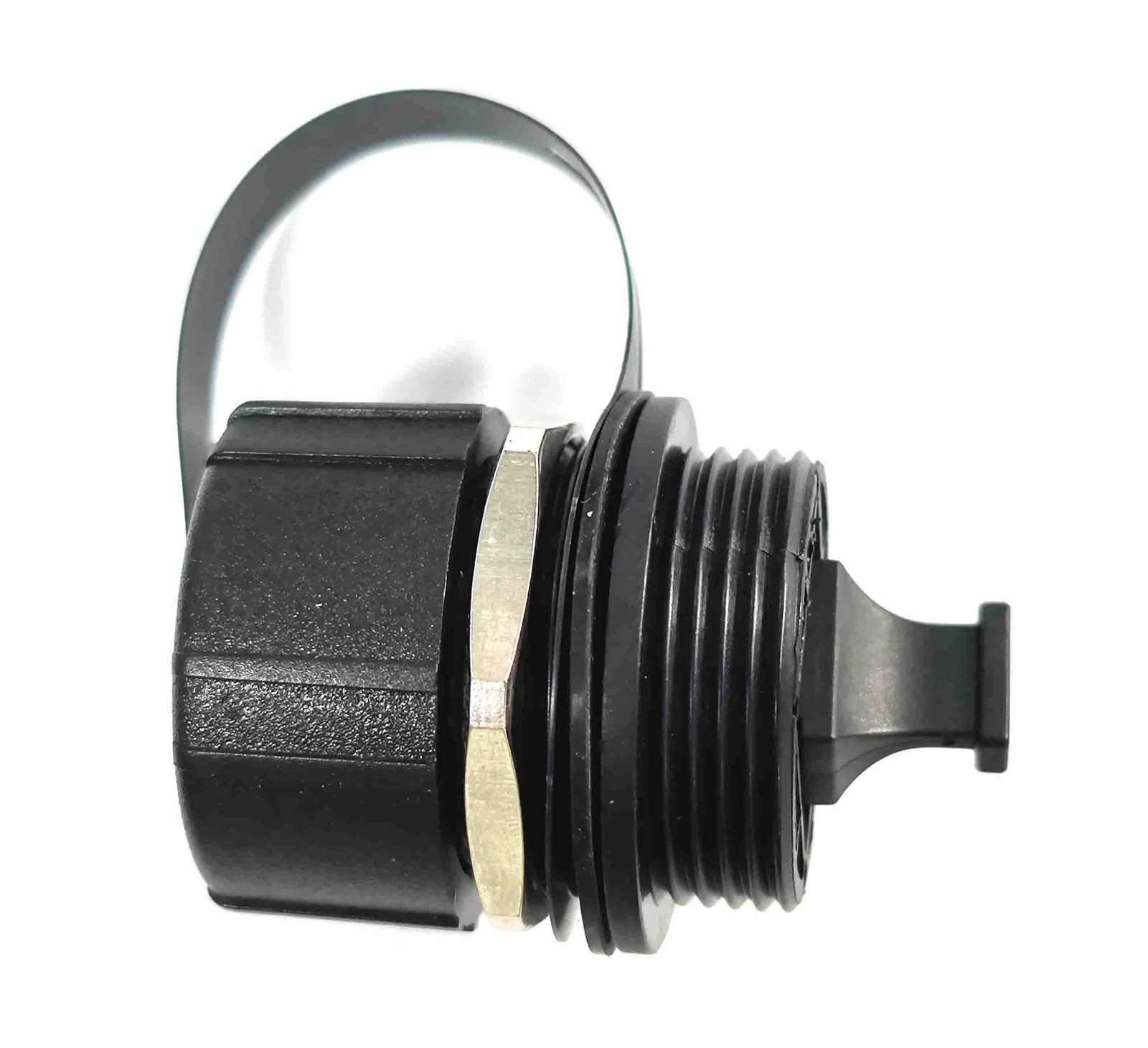

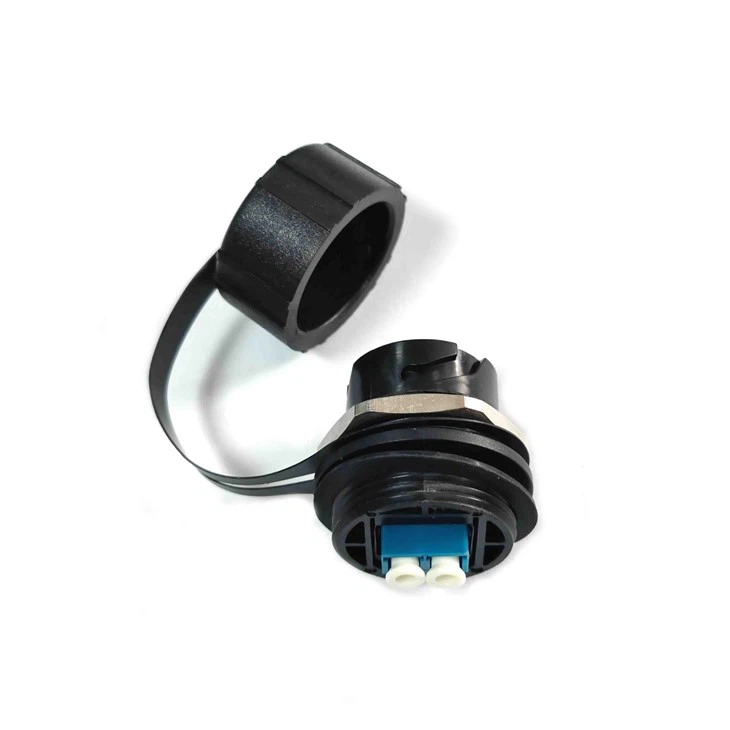

The IP67 MPO ODVA waterproof adapter is used for harsh industrial or outdoor environments, mounts case side to panel or enclosure, female simplex singlemode MPO pass-thru receptacle to female duplex MPO connectors, quick-release quarter-turn bayonet locking to cable shield, gasket seals provide IP67 rated water tight and dust free protection.
Applications
● CATV networks
● LAN
● Fiber optic transmission system
● Testing/Measurement Instruments
● Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
Operating Performance |
Outdoor MPO ODVA Waterproof Adapter | |
| PC | APC | |
| Insertion Loss (dB) | < 0.3 | < 0.3 |
| Durability (500 Mating) (dB) | < 0.1 | < 0.1 |
| Operation Temperature (°C) | -40 to 80 | -40 to 80 |
| Retention Force (N) | 200-600 | 200-600 |
| Tensile Strength (kgf) | 10 | 10 |
| Housing Material | PC | PC |
| Mounting Style | Screw/Clip | Screw/Clip |
| Sleeve Alignment Material | Ceramic (Grade A) | Ceramic (Grade A) |
| Housing Color | Black | Black |

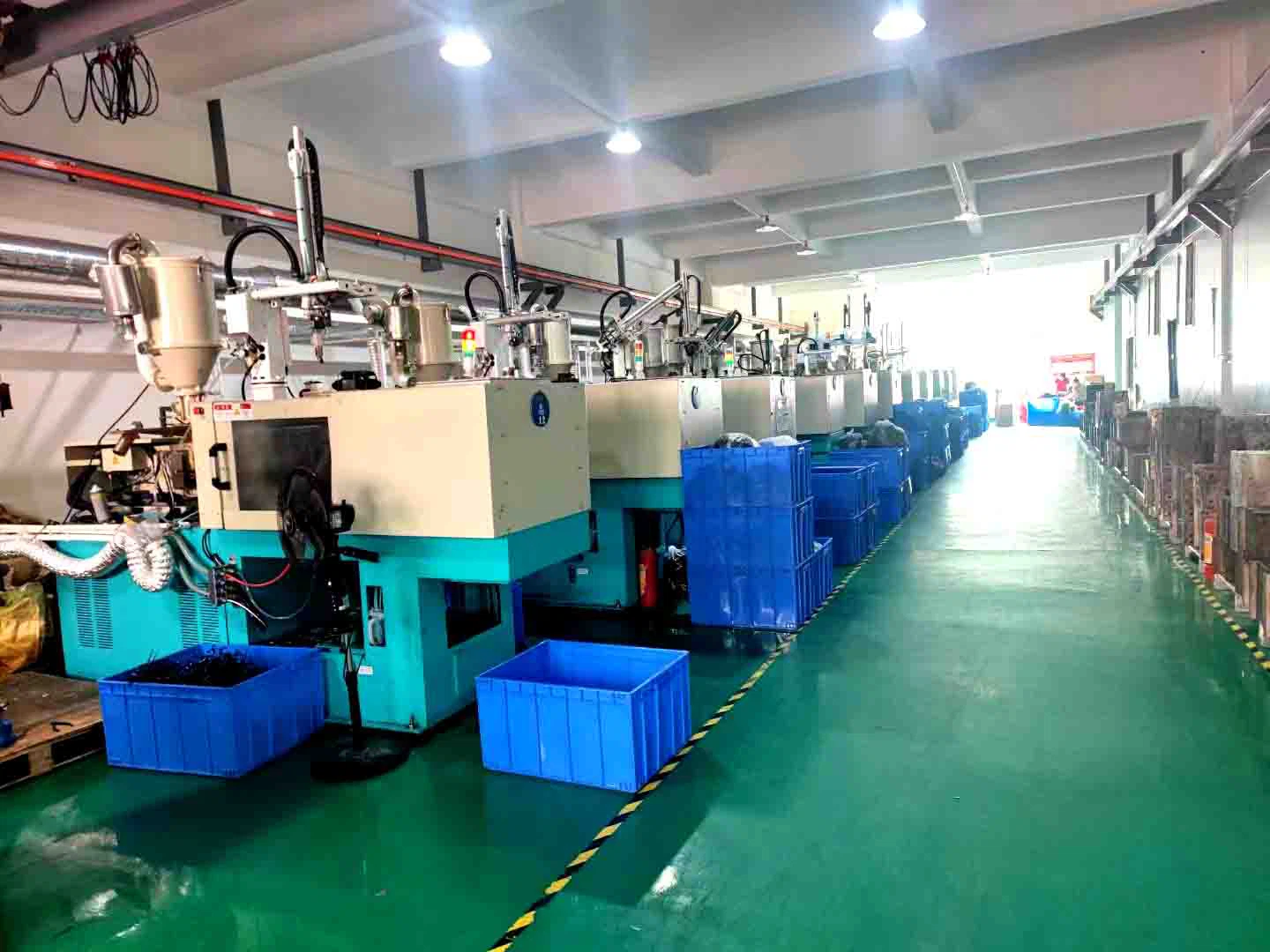

Production site
Hot Tags: odva mpo/mtp waterproof fiber optic adapter, China, factory, suppliers, manufacturers, quotation, customized, price, buy
