They serve as interfaces to enhance outdoor connectivity by enabling seamless communication between different devices and networks. Whether connecting cables in telecommunications infrastructure or surveillance systems, these adapters play a vital role in maintaining optimal data transmission. Waterproof fiber optic adapters revolutionize outdoor connectivity by delivering enhanced durability and reliability to industries that rely heavily on continuous and robust connections.
Next we will introduce the classification of optical fiber waterproof connectors.
1.OptiTap-SC (quick connection type)
feature
● Quick deployment, plug and play
● Lower insertion loss SC technology
● Flat cable bracket overhead self-supporting and ground trough applications
●Quick lock connector design
2.FULL AXS
feature
•IP65 and IP67 (IEC 60529)
•Operating temperature range: -40oC to 85oC
•Salt spray (EIA 364-26B Condition A)
•UL F1 rating (ISO 4892-3)
•Flame retardant grade UL94-V0
•RoHS/reach product compliance
3.ODVA
ODVA-LC (waterproof grade: IP68)
ODVA-SC (waterproof grade: IP68)
ODVA-MPO (waterproof grade: IP68)
Features
● 3 series optional: LC duplex,SC simplex,and MPO.
● IP68 Waterproof
● Low insertion and high return loss.
● 5.0mm, 7.0mm cable optional.
● Wide range of operational temperature from -40 to+85°C.
● 100% optically tested to ensure quality performance assemblies.
4.PDLC
PDLC connectors and required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as long-range wireless, fiber-to-antenna, etc. This product is not only suitable for these fields, but also for industry, aerospace, national defense and other fields. PDLC assembled cables have been salt spray tested. The waterproof rating reaches IP67. Easy to install and can reliably transmit data over long distances in harsh environments.
PDLC (waterproof grade: IP67); suitable for 3.0MM-7.0MM outer diameter optical cable
Features
● Standard duplex LC connector, low IL, high RL.
● IP67 protection level, anti-salt spray, moisture-proof, and dust-proof.
● Simple operation, reliable installation and cost-effective.
● 100% optical testing to ensure component quality performance.

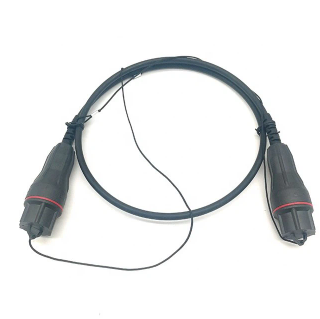

5.Three-in-one pre-connected fiber optic waterproof connector
(compatible with Furukawa, Corning, Huawei)
FOCC has developed its own waterproof/ruggedized connector and adapter kit for pre-connected (plug and play) FTTH deployments. It is used in distribution boxes (adapters) and pre-controlled incoming cables. Compatible with SC-APC polished type. We have developed accessories (also called "converters" in the Brazilian market) that "convert" SLIM connectors to Corning Optitap compatible connectors, allowing the SLIM connectors to be used with Corning Optitap adapters. We have also developed the same type of accessories ("converters") that "convert" SLIM connectors to Huawei Fast Connect compatible connectors, allowing the SLIM connectors to also be used with Huawei Fast Connect adapters.
Features
● Flexibility and easy scalability without losing quality
● Ensure high performance and reliability of management
● Speed and ease of installation and reconfiguration
● Easy to operate, no special tools required
● Designed to withstand axial pull forces up to 45kg
● Designed for external connections to access network Pods
