FC Bare Fiber Optic Adapter
PRODUCT DESCRIPTION
FEATURES
Bare fiber adapter is a very efficient media to connect bare fiber to fiber optic device, it usually used in installation to test links. One side of the bare fiber adapter is the bare fiber, the other side is the fiber optic connector to plug into equipment.

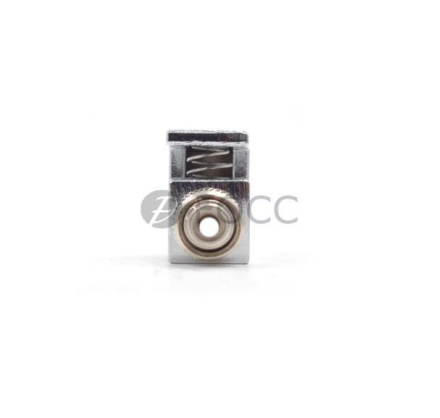

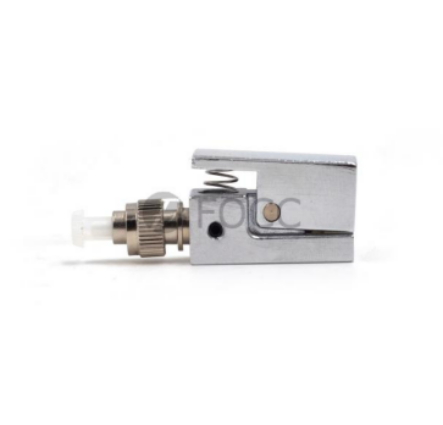

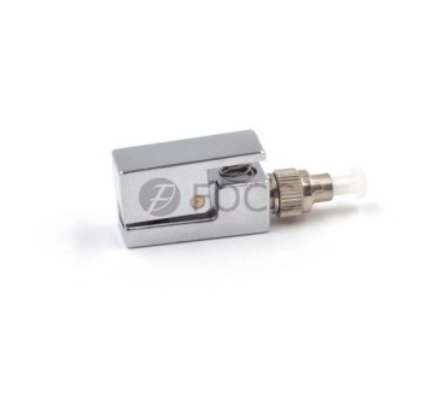

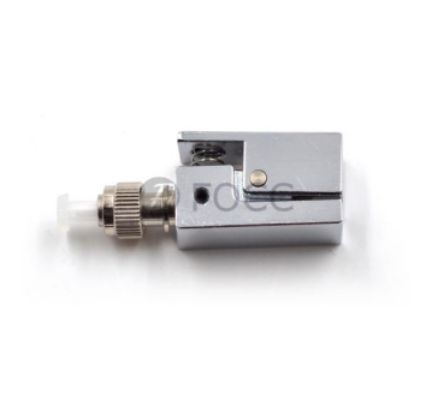

FC Bare Fiber Optic Adapter
Bare fiber adapters provide a simple and effective way to use unterminated fibers with commerical receptacles.Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily removed with piano wire, allowing hundreds of insertions. They are recommended for power meter hook-ups, temporary system repairs or wherever a quick fiber connections is required.
Features:
v Simple to use
v Suitable for fibers with coating diameters of 250um & 900um.
v Optical fiber with hole dia. between 123-127um can be used.
v Multimode or Singlemode connectors.
Applications:
v Temporarily connactorizes bare fiber
v Testing bare fiber, fiber on the reel, fiber before and after installation
v Production line of fiber optic devices
v For fast and temporary fiber optic connections in communication system
v Temporary connections to OTDRs, Power Meters, Talk sets, Demo Equipment and Dark Fiber
Technical specification
Type | Multi-mode | Single mode | |
Light Characteristic | Operating Wavelength | 850nm & 1300nm | 1310&1550nm |
Typical Insertion Loss | 0.2 dB | 0.2dB | |
Mechanical Testing | Repeatability | ≤0.2dB | |
Exchange | ≤0.2dB | ||
Durabilty | >1000 (times) | ||
Temperature | Storage Temperture | 25~+85℃ | |
Opearting Temperature | 25~+85℃ | ||
Length , Color, Ferrule ID, Fiber count | According to the customers' requirement | ||

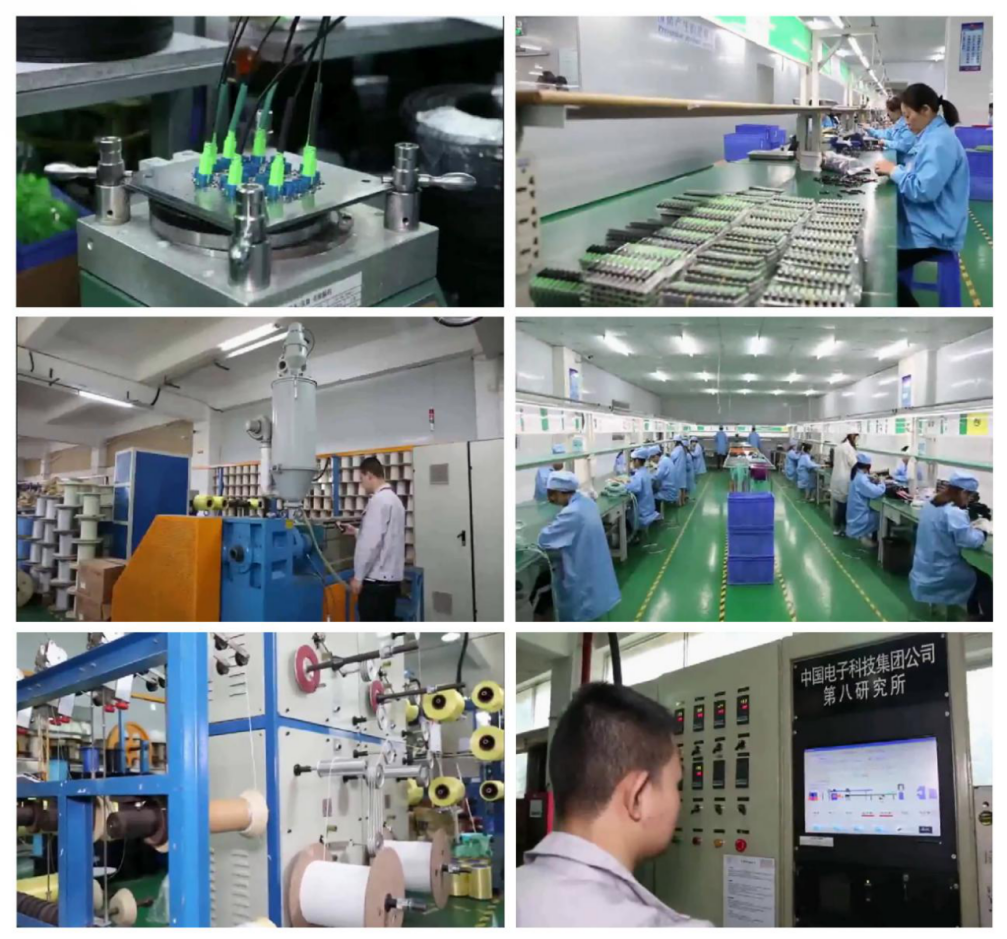

Factory introduction
FOCC is a company specializing in the production and sale of fiber optic and fiber optic cable related products. The main products include fiber jumpers, outdoor optical cables, indoor optical cables, pigtails, PLC splitters, adapters, FBT couplers, attenuators, connectors, media converters, patch panels and connector packages. Suitable for fiber optic communications, local area networks, FTTH, CATV, high speed transmission systems.
