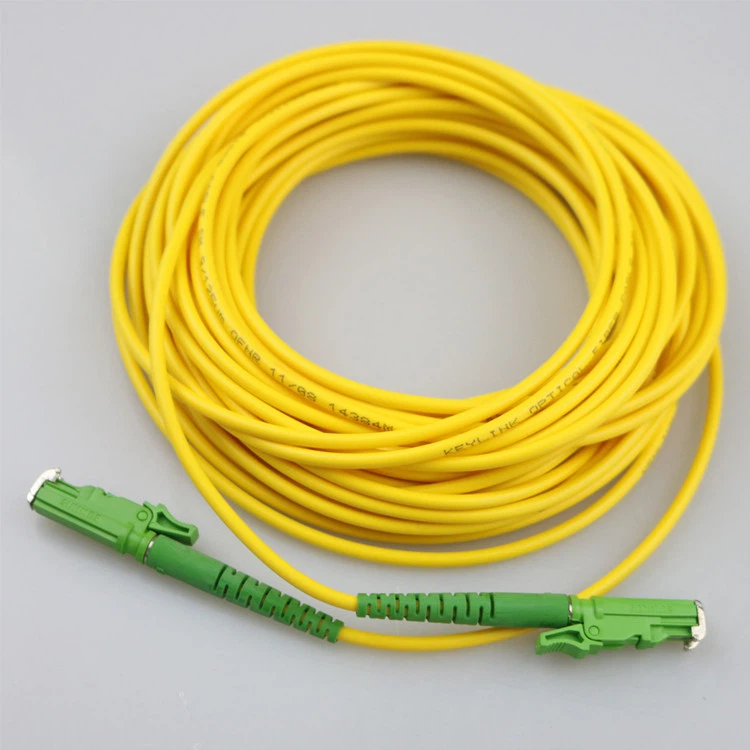

E2000/APC/UPC Single Mode Simplex Jumper Fiber Optic Patch Cord

  Type E2000/APC-LC/UPC Singlemode SX Fiber Patch Cord Connector. SC FC LC ST optical fiber connector  is the two end precision optical fiber optic jumper, dock up according to the transmission medium can be divided into common silicon-based optical single-mode, multi-mode jumpers, and other such as plastic for transmission medium of fiber optic jumper cables, By connecting head structure forms can be divided into: FC , SC,ST , LC , MTRJ , MPO, MU, SMA , FDDI , E2000 , DIN4 , D4 etc various forms.

Features:

● OEM order available

● High temperature stability

● Excellent mechanical endurance

● Excellent polished and 100% tested

● Low insertion loss and high return loss

Applications:

● CATV

● LAN & WAN

● Telecommunication networks

● FTTX, FTTH (Fiber to the Home)

Tech Specification

Singlemode simplex fiber optic cables are designed and constructed to transmit information one way — from one sender to one receiver device. Light propagates in a single direction down a simplex cable, making it impossible for data to be sent back. Duplex solutions, meanwhile, use two cables, one for each data direction.

Singlemode cables contain a single, 9-micron strand of glass as opposed to multimode cables, which use larger (50 or 62.5-micron) strands. This incredibly thin fiber allows singlemode simplex patch cords to transmit information accurately over extremely long distances. Because data is sent directly down the center of the cable over a single light frequency, the risk of signal degradation is extremely low. This makes singlemode cables the ideal choice for applications where both distance and accuracy are essential.

Fiber Optic E2000 patch cord:

Each OM1 LC-E2000 BlueOptics Patch Cord that we sell is guaranteed factory new and is produced with high-quality glass fiber cores of known glass manufacturers sch as Corning, Fujikura or YOFC. All connector plugs are equipped with a highly reliable zirconia ceramic ferrule from manufacturers such as Amphenol, Diamond, Nissin Kasei or Reichle & De-Massari. Because of that and a high precision manufacturing process, all Patch Cords offered by gbic-shop.de achieve a low input loss and a high return loss. In addition, further optimization of the return loss by adjusting the Polish (UPC or 8° APC) are possible. Please contact us in case of a demand of such optimized Patch Cords.

For a low smoke emission in case of fire, all BlueOptics Patch Crds  are equip ped with a flame-resitant, halogen-free LSZH sheathing.BlueOptics OM1 LC-E2000 fiber optic Patch Cords are suitable for the connection of patch panel ports with each other or the associated connection of optical transceivers, designed for up to 1500 mating  cycles and the transmission of optical signals.

Fiber Optic Multimode E2000 patch cord:

We supply E2000 duplex multimode fiber optic cables, these cables are UPC or PC polish optional, with various kinds of fiber optic cable including Rizer rated, Plenum rated and RoHS compliant. These multimode duplex E2000 fiber optic cables are custom length and cable colors. The cables can be with 50/125 or 62.5/125 multimode optical fiber. OM3 multimode duplex fiber cables are also available on request.

E2000 connector is one of the few fiber optic connectors featuring a spring-loadedshutter which fully protects the ferrule from dust and  scratches. E2000 is compliant with EN 186270 and IEC 61754-15 standards. E2000 cables are duplex types, with 50/125 multimode or 62.5/125 multimode fibers. E2000 cables are PC and UPC types.

Common Applications for Simplex Singlemode Fiber

Singlemode simplex fiber optic cables send information over long distances with minimal signal loss. This makes them a solid choice for projects that require continuous information transmission over large workspaces or to ensure the reliable operation of fiber optic switches and servers at scale.

The small size and single-strand nature of these fiber optic cables also makes them incredibly resistant to environmental changes such as temperature, pressure or moisture. And because the carry only a single wavelength of light — in contrast to copper wire connections, which carry an electric charge — they’re unaffected by electromagnetic interference.

Where Singlemode Simplex Fiber Optic Cables Excel

If you need speedy, short-distance, back-and-forth data transfer, singlemode simplex patch cords are not your best solution.

However, singlemode simplex cables are ideal for applications that require long-distance data transmission from point A to point B with the assurance of signal integrity. Practical examples include remote offices and large post-secondary campuses. In these cases, effective technology deployments often depend on reliable data reception at scale and speed. Information may travel miles from data centers to end-user devices, and any signal degradation could render the entire transmission useless.

In the case of a remote office workstation, singlemode simplex jumpers may be used to send continuous sensor data, which is then interpreted and analyzed in centralized data warehouses. Potential degradation makes multimode cables a risky choice, while the extra costs associated with duplex cabling aren’t necessary if remote workstations are only transmitting information. Simplex singlemode fiber is cost-effective, consistent and always delivers clean data.
