Description
Technical Parameters

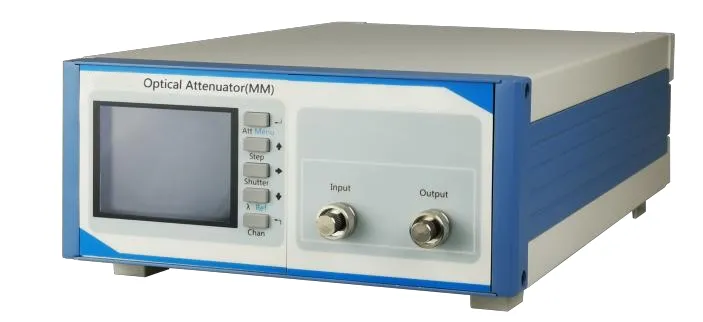

Through high-density design, the FOC9311 programmable desk attenuator has greatly saved the floor space of the device. The programmable Optical attenuator provides higher test data throughput and test rate. The device also provides rich communication interfaces, which can be integrated with multiple products of FOCC. It is an ideal solution for optical sensitivity, bit error rate and attenuation testing in the field of 40G/100G optical module, optical network and optical transmission.
Product Advantage
● Higher testing efficiency and data throughput
● Supports optical output power locking
● Readable output optical power value
● Supports+27dBm input optical power
● Support RS232 and software control, secondarydevelopment, and system integration
● Support user self calibration
● Supports open loop control and closed-loop controlmodes
Application
● Manufacturer of optical devices
● Production Test of Active Optical Device optical module Coupling
● BOB device testing
● Laboratory, university, research unit
Technical parameter
|
Applicable fiber type
|
Multi-mode fiber 50/125 or 62.5/125
|
|
Maximum attenuation
|
50dB
|
|
Insertion loss
|
<2dB
|
|
Resolution
|
0.01dB
|
|
Calibration wavelength
|
850
|
|
Attenuation linear (closed loop)
|
±0.1dB (0-25dB)
|
|
Attenuation linear (open loop)
|
±0.2dB (25-45dB)
|
|
±0.3dB (0-45dB)
|
|
|
Optical interface
|
FC/UPC
|
|
Maximum allowable input power
|
+27dBm
|
|
Internal optical power meter
|
support
|
|
OPM dynamic range
|
+27~-55dBm
|
|
Communication interface
|
RS232/ RJ45
|
|
Weight
|
<5 kg
|
|
Storage temperature
|
-25 ~ +70 ℃
|
|
Power supply
|
AC90 ~ 260 (50Hz)
|
|
Dimensions
|
235*380*100(mm)
|
Selection and configuration instructions
MU9311 Single channel multi mode optical attenuator
MU9311D Dual channel multi mode optical attenuator
MU9312 Four-channel multi-mode optical attenuator
Welcome to buy the multimode optical attenuation tester with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.
