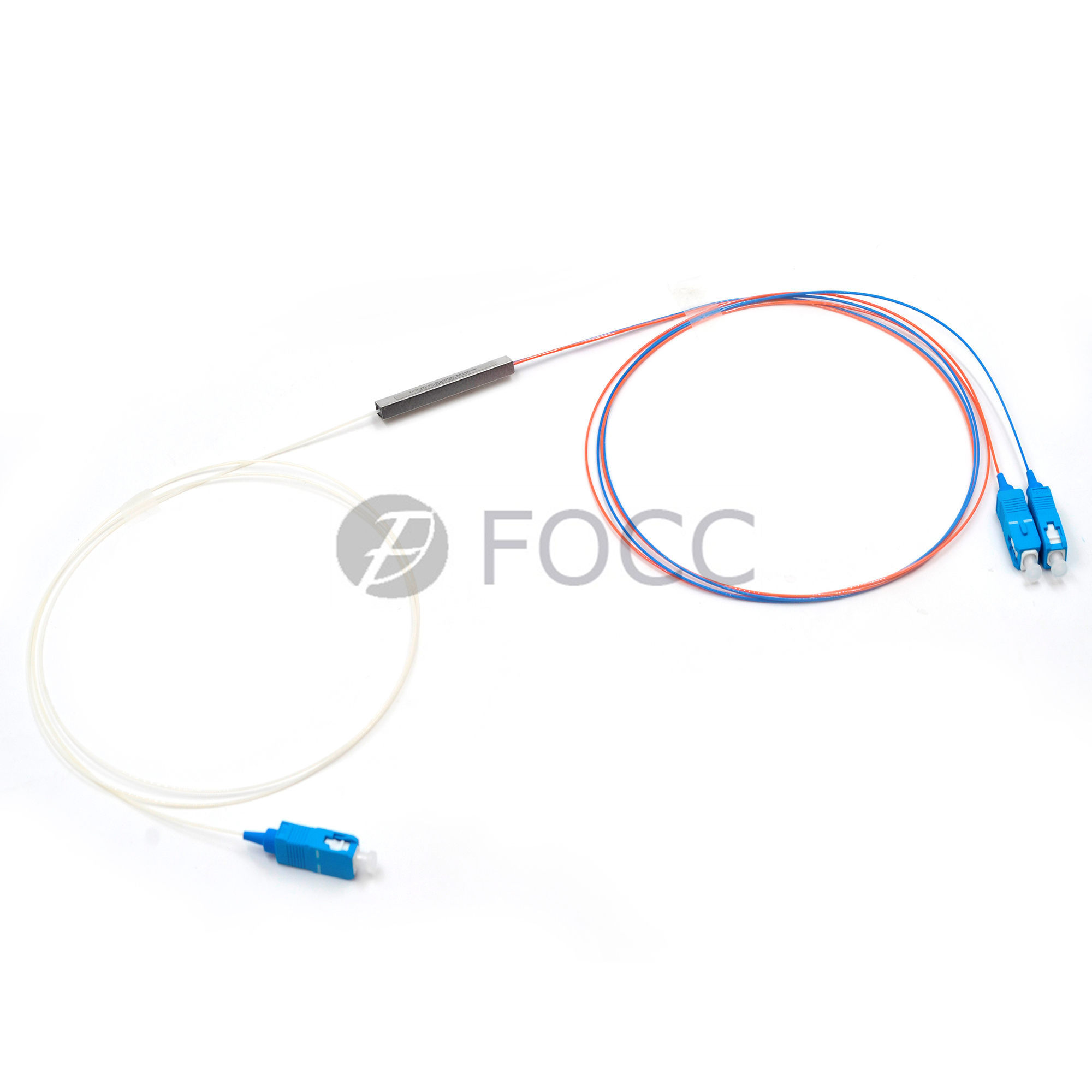

1x2 PLC Fiber Splitter, Mini Module,SC/UPC/APC

1x2 PLC Fiber Splitter, Mini Module, 900μm, SC/UPC

Brief overview

1×2 Planar Lightwave Circuit (PLC) Mini Module Splitter with SC/APC termination.  Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.

Constructed with the highest quality Corning® Clearcurve Bend Insensitive Fiber (BIF) glass for the greatest installation speed and efficiency with high transmission rates and virtually no distortion.

 PRODUCT DESCRIPTION

Perfect Details of 1X2 Blockless PLC Splitter

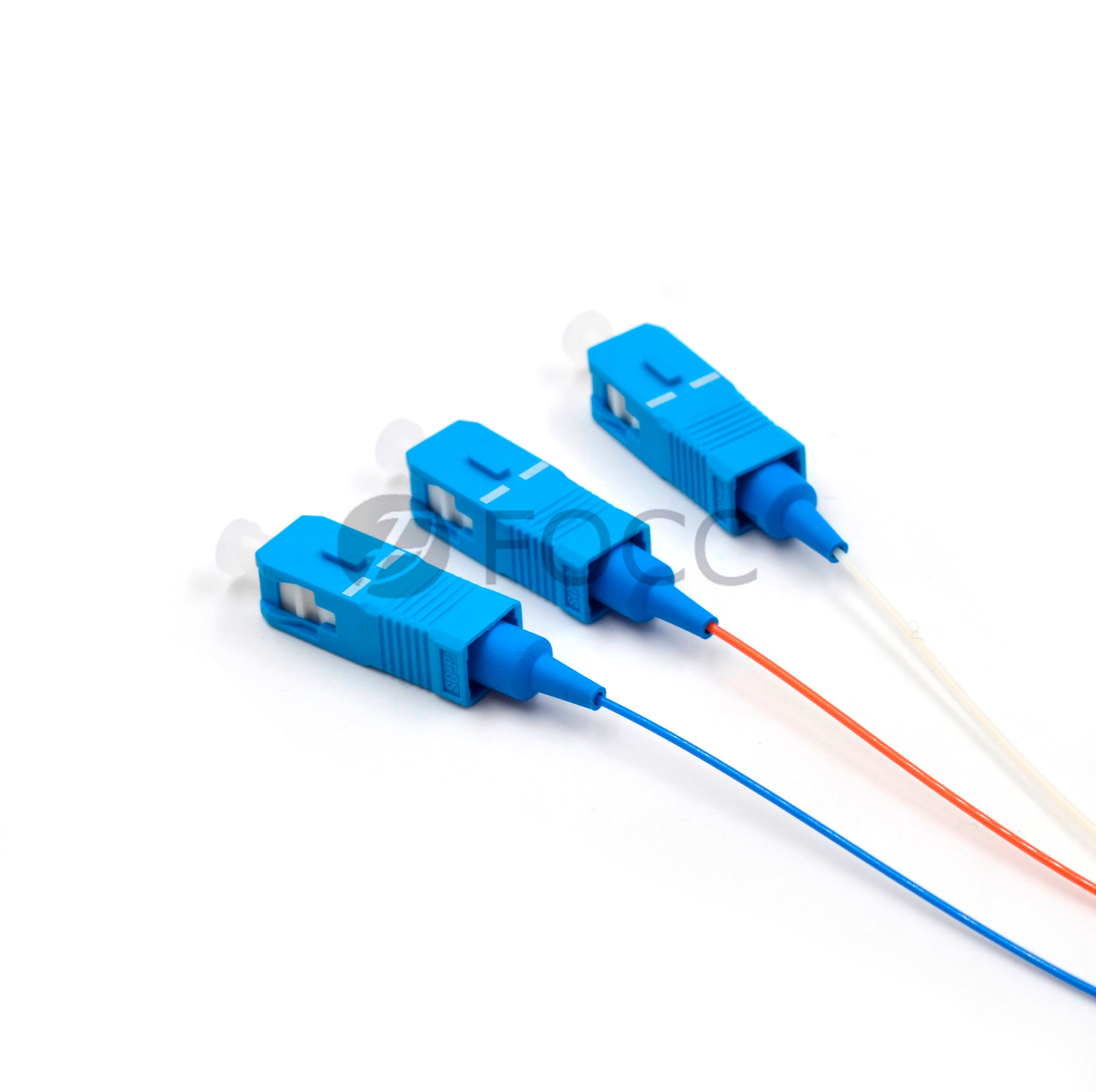

	1x2 Splitting, SC/APC Connector Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity.
Excellent Quality Chips Loss of light is not sensitive for wavelength, and it can meet the transmission needs of different wavelengths.

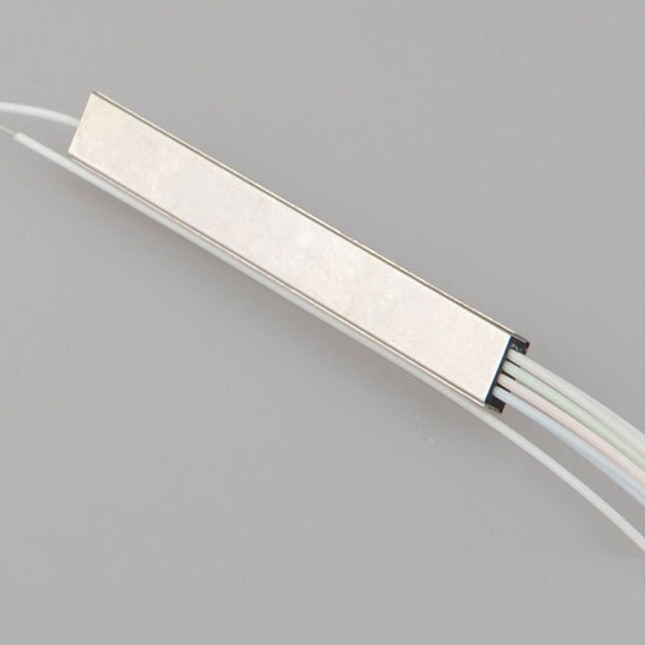

	Compact Structure Small size, it can be directly installed in a variety of transfer box and just take up little space.

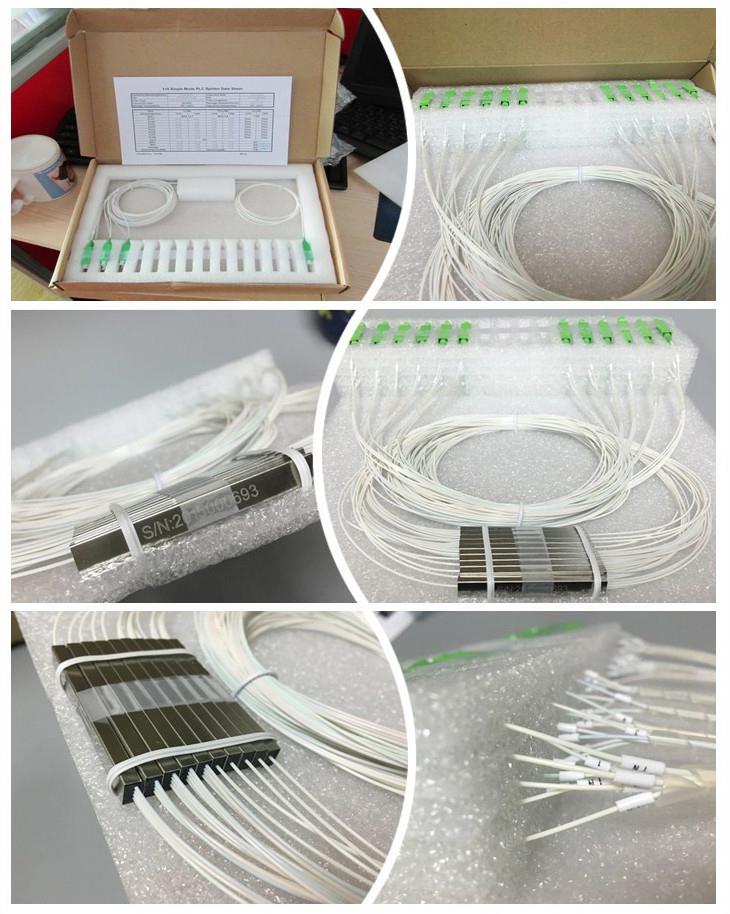

Exquisite Packaging The design and packaging is exquisite to ensure the product in good condition.

 .

Construction
Configuration Type: 1×2
Fiber Type: G.657A1
Glass: Corning® Clearcurve XB Bend Insensitive Fiber (BIF)
Fiber Diameter: 900 μm
Fiber Length: 1 m input/1 m output
Connector Type: SC/APC

Performance
Operating Wavelength: 1260-1650 nm
Insertion Loss: ≤16.9 dB
Polarization Dependent Loss (PDL): ≤0.3 dB
Return Loss: ≥55 dB
Uniformity: ≤1.5 dB
Directivity: ≥55 dB
Operating Temperature Range: -20 to 70°C (-4 to 158°F)
Storage Temperature Range: -20 to 70°C (-4 to 158°F)

Approvals
Telcordia GR-1221 and GR-1209
Manufacturing Facility: ISO-9001 and TUV Certified

 Specification

Bend Insensitive Fiber-----------------------Reduces risk of breakage during installation

Multiple Packages Avaliable-----------------------Avaliable in pencil, plastic and metal variations

In-Stock Inventory-----------------------TCS stocks most variations of PLC splitters, cutting down

                                                                lead time and keeping you up and running

 Avaliable Unterminated-----------------------No connectors, making it perfect for splice enclosures

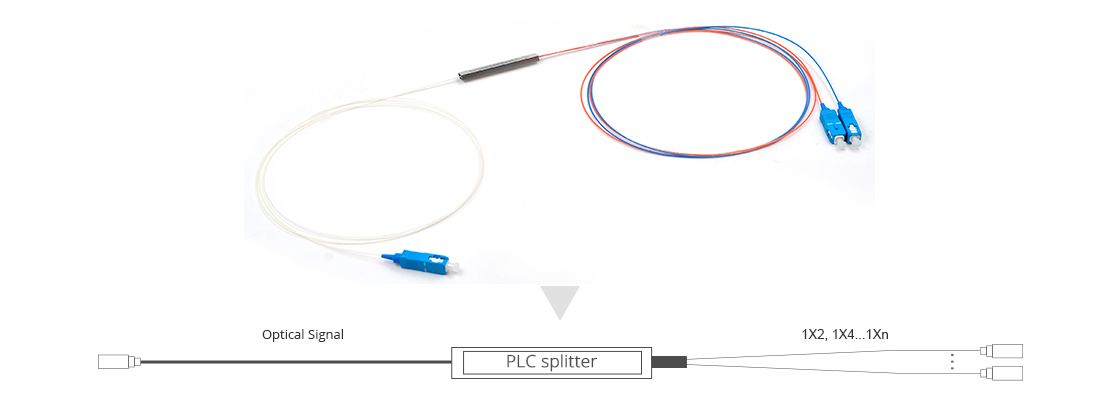

Simple and Easy Connection

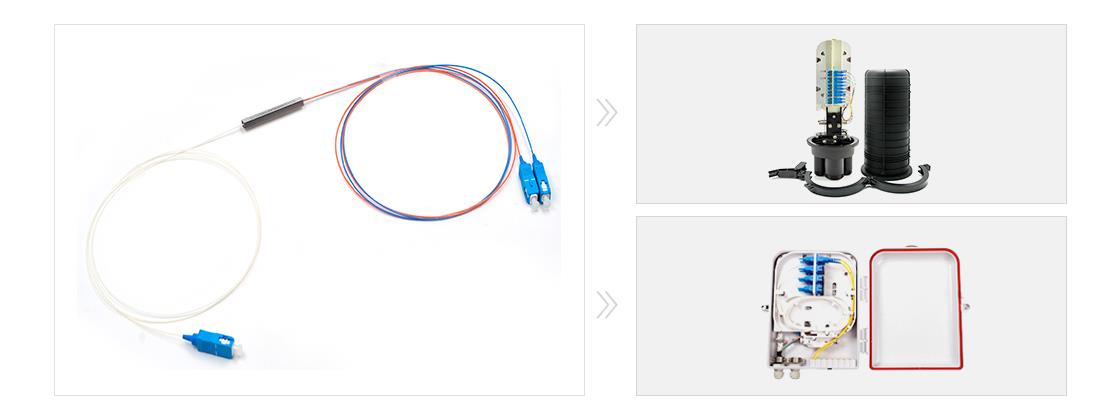

Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management. The following figure shows 1X2 blockless PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

Comparison between PLC Splitter and FBT Splitter

parameters	PLC  splitter	FBT coupler splutter
operating wavelength	1260-1650nm	850nm,1310nm,1490nm,1550nm
splitter ratios	equal splitter ratios for all branches	splitter ratios can be customuzed
performance	good for all splits,high level of reliability and stability	up to 1:8(can be larger with higher failure rate)
input/output	1or2 input with an output maximunof 64 fibers	1or2 input with an output maximunof 32 fibers
housing	bare,blockless,ABS module,LGX box,Mini Plug-in type,1U rack mount	bare,blockless,ABS module
