1x32 Fiber Splitter

1x32 PLC Fiber Splitter, Splice/Pigtailed ABS Module,

2.0mm, SC/APC

Overview

PLC (Planar Lightwave Circuit) Splitters are Single-mode splitters with an even split ratio from one input fiber to multiple output fibers. This PLC Splitter is a 1x32, with 1 input and 32 output fibers with an even split ratio across all fibers regardless of input wavelength. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization.

Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

PRODUCT DESCRIPTION

FEATURES

1x32 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

The ABS box type PLC optical splitter uses a plastic ABS box to protect the optical waveguide chip and the optical fiber array board, and has a high level of protection performance, and is suitable for direct application under the construction conditions. Users can customize the ABS box type PLC optical splitters with different split ratios, different cable lengths, and different connector types according to requirements.

Technical specification:

Packaging Detail:

Features:

• 1x32 ABS PLC Splitter Box
• Fiber Mode: Single Mode Corning SMF-28e
• 1 x Input Fibers
• 32 x Output Fibers
• Unconnectorized
• Fiber jacketing ruggedized 2mm jacket
• Length: 1.5 meter legs
• ABS box type module
• Plug and Play Ready

• Optional: Custom connector configurations and combinations (CALL)




Applications:

• Fiber to The Point (FTTX)
• Fiber to The Home (FTTH)
• Passive Optical Networks (PON)
• Gigabit Passive Optical Networks (GPON)
• Local Area Networks (LAN)
• Cable Television (CATV)

• Test Equipment




characteristic

• Low insertion loss
• Low Polarization Dependent Loss
• Excellent Environmental Stability
• Excellent Mechanical Stability
• Telcordia GR-1221 and GR-1209

Structure and Dimension

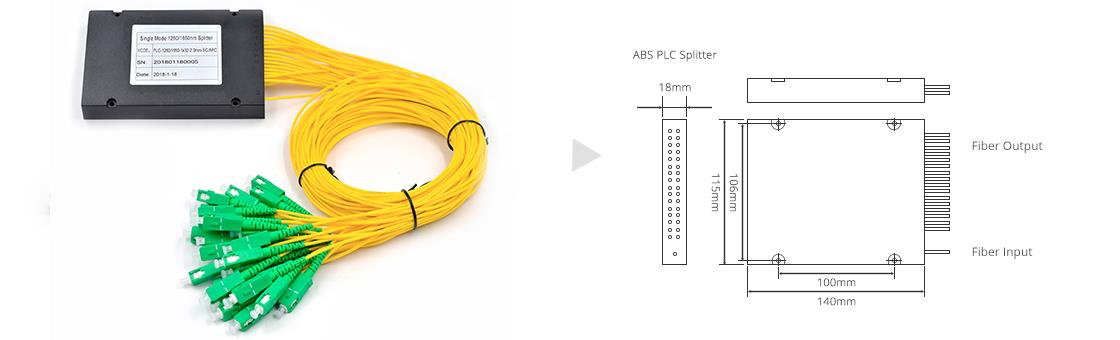

With standalone structure, clearly fiber input and fiber out entrance, ABS PLC splitter can be used dircectly for splitting using.

v The loss is insensitive to the wavelength of the transmitted light and can meet the transmission needs of different wavelengths.

v Uniform light distribution allows even distribution of signals to users.

v Compact structure, small size, can be directly installed in the existing transfer box, without special design to leave a lot of space for installation.

v A single device has many shunt channels and can reach more than 32 channels.

v Multi-way costs are low, and the more branches, the more obvious the cost advantage.

Product

Splitters with connectors

1.    Attach the connectoirzed end into the adapters one at a time. Match the adapter with the appropriate cable number. Clean SP-APC con- nectors individually as installing into adapters.

2.    Mount the splitter metallic housing in the splice tray above the splice holding slots using a cable tie.

3.    Route fiber in fiber storage spool areas and back toward splice storage.

4.    Document and label fiber routing.

Splitters without connectors

1.    Mount the splitter metallic housing in the splice tray above the splice holding slots.

2.    Route cable to input fiber to fiber storage spool area.

3.    Following fusion splice instructions for fusion splice equipment and using splice covers, splice the input side of the splitter.

4.    Repeat for the output side fibers.

5.    When each splice is completed cover it with the splice cover. Mount the splices in storage trays.

6.    Document and label fiber routing.

Frequently asked questions

Q:Is this splitter rugidized? Can it be placed in an outdoor PON cabinet and tolerate temperatures below -20 degrees Fahrenheit and up to 100 degrees Fahrenheit?

A:Hi, for the splitter you mentioned, its operating temperature is -40~85°C, which can meet your requirement -- temperatures below -20 degrees Fahrenheit and up to 100 degrees Fahrenheit (about -30℃ ~ 38℃). But this splitter#11620 is designed for indoor application, I don't advise you to use it outdoor. You can kindly contact your sales specialist directly to know more about the outdoor applied Splitter, she will give you more professional recommendation and quotation.
