Product Overview

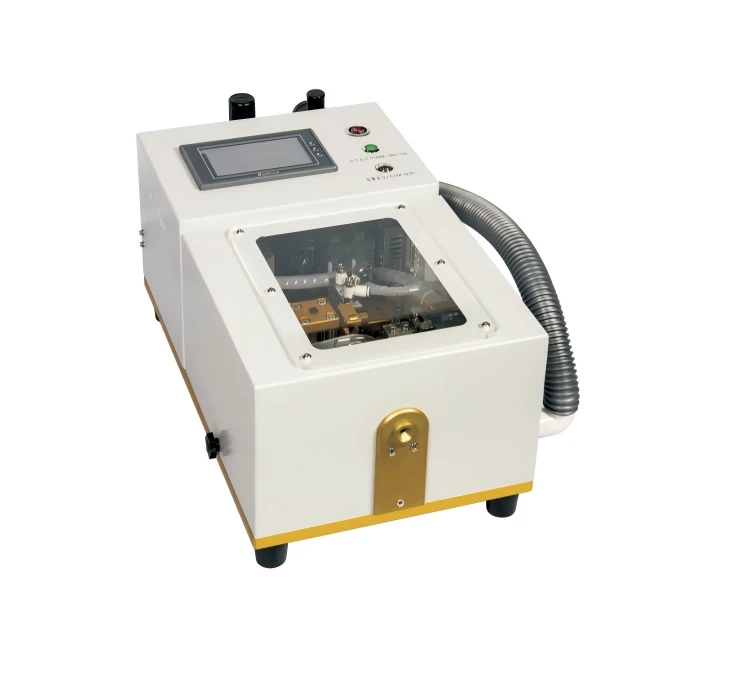

This fully‑automatic fiber optic stripping & aramid cutting machine is specially developed for processing single‑core soft optical cables. It completes outer jacket stripping, longitudinal cutting and aramid fiber trimming automatically. Equipped with touch‑screen operation, high working efficiency, stable performance, ideal for FTTH patch cord production factories.
Technical Specifications
| Item | Parameter |
|---|---|
| Overall Dimension | 520×340×220 mm |
| Operation Interface | Touch Screen |
| Stripping Length | 15‑40 mm |
| Reserved Aramid Fiber Length | 4‑10 mm |
| Longitudinal Cutting Length | 8 mm |
| Applicable Optical Cable | Ø1.6 mm, Ø2.0 mm, Ø3.0 mm single‑core soft optical cable(Other sizes support custom‑made) |
| Production Efficiency | 1600 pcs/hour |
| Power Supply | Single‑phase 220V, 50/60Hz |
| Air Source Pressure | 0.5‑0.8 MPa |
| Power Consumption | 20W |
| Net Weight | 15 KG |
Key Features
Touch‑screen human‑machine interface: Simple parameter setting, easy operation for new operators.
High‑speed mass production: Up to 1600 pieces per hour, greatly improve patch‑cord manufacturing throughput.
Precise processing: Accurate control of stripping length, aramid reserved length, consistent finished product quality.
Pneumatic driving: Stable cutting & stripping performance, low power consumption (only 20W).
Wide compatibility: Standard for 1.6/2.0/3.0mm single‑core soft fiber cables; custom service for special cable sizes.
Compact table‑top design: Small footprint 520×340×220mm, easy to place on production workbench.
Application Scenarios
FTTH fiber patch cord mass production
Single‑core soft optical cable pre‑processing
Optical component assembly workshop
Fiber optic cable manufacturing factory
Notes
Requires stable compressed air supply within 0.5‑0.8MPa.
Only for single‑core soft optical cable; non‑standard cable specifications need to confirm customization before ordering.
Regularly clean cutting blades and stripping fixture to keep processing accuracy.
