User pain points
In outdoor network cabling, campus interconnection, fiber-to-the-building (FTTB/FTTX) or data center backend extensions, common problems with ordinary fiber optic patch cords include end-face damage, excessive bending, aging, or tooth wear, leading to network instability or frequent maintenance. The Outdoor Duplex Fiber Patch Cord LC/UPC, TPU Jacket 3.0mm is designed to address these pain points, providing a wear-resistant, waterproof, UV-resistant, and mechanically enhanced solution, allowing users to confidently deploy the "last 10 meters" of critical links.
Specifications
| Category | Specification |
|---|---|

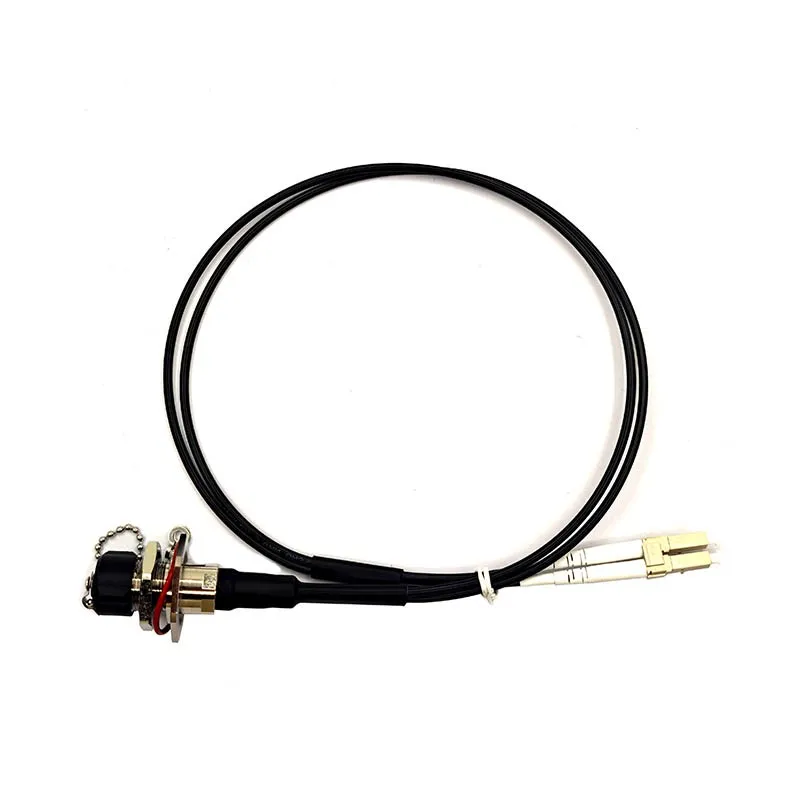

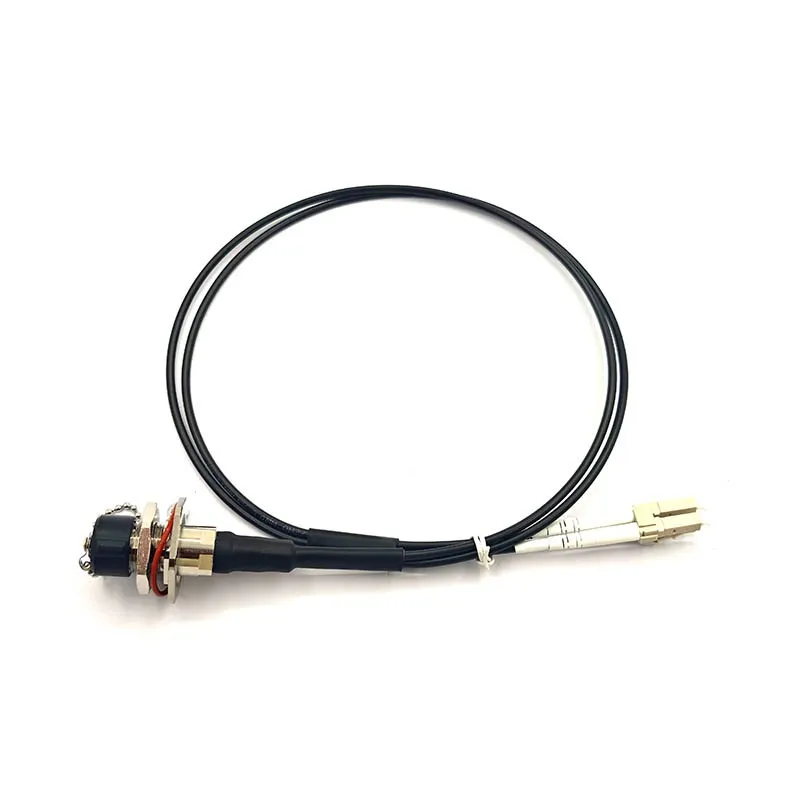

| Product Name | Outdoor Duplex Fiber Patch Cord LC/UPC, TPU Jacket 3.0mm, 0.6m, OM3 MM DX |
| Product Type | Outdoor Duplex Fiber Optic Patch Cable / Fiber Jumper |
| Cable Type | Male-to-Male Pre-terminated OM3 Multimode Fiber Optic Jumper |
| Termination | LC Duplex to LC Duplex |
| Connector 1 | LC Duplex, 1.25mm form factor, ceramic ferrule, UPC polish |
| Connector 2 | LC Duplex, 1.25mm form factor, ceramic ferrule, UPC polish |
| Maximum Connector Loss | 0.50 dB |
| Typical Connector Loss | 0.30 dB |
| Typical Return Loss | ≥25 dB |
| Strand Count | 2 Fibers |
| Core/Cladding | 50/125 µm |
| Optical Mode | OM3 Multimode, Laser Optimized (LOMMF) |
| Bandwidth | 2000 MHz·km @ 850 nm, optimized for VCSELs |
| Network Speeds Supported | 1G, 10G, 40G, 100G Ethernet |
| Distance Performance (OM3) | 1GbE: 550m @ 850 nm 10GbE: 300m @ 850 nm 40GbE: 100m SR4 100GbE: 100m SR10 |
| Jacket Material | TPU (Thermoplastic Polyurethane), Outdoor Rated |
| Jacket Color | Black |
| Jacket OD | 3.0 mm |
| Fire Rating | OFNR (Riser Rated, Nonconductive) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Quality Control | Fully inspected and tested according to ANSI/TIA/EIA standards |
| Warranty | Lifetime warranty – defective products replaced free |
| Additional Features | Abrasion-resistant TPU jacket, UV and moisture resistant, ideal for short-distance outdoor connections, high-density rack interconnects, FTTx, enterprise networks, and datacenter backbones |
Standard Indoor Patch Cable VS ODC(F)-LC/UPC 3.0mm TPU Outdoor Duplex
| Feature | Standard Indoor Patch Cable | ODC(F)-LC/UPC 3.0mm TPU Outdoor Duplex |
|---|---|---|
| Jacket Material | PVC / LSZH | TPU, high abrasion resistance, UV-resistant, outdoor rated |
| Outer Diameter | 2.0mm | 3.0mm, enhanced mechanical strength |
| Minimum Bend Radius | 20–30mm | ≥50mm, reduces micro-bend losses |
| Network Stability | Sensitive to environmental factors | Stable in indoor/outdoor environments, crush- and rodent-resistant |
| Transmission Speed | 1G–10G | 1G–100G Ethernet, OM3/OM4 options |
| Warranty | Standard | Lifetime warranty with free replacement |
Frequently Asked Questions (FAQ)
Q1: Can this patch cord be used directly in outdoor conduits?
A1: Yes, the TPU jacket is UV-resistant, moisture-proof, and flexible for outdoor conduit or aerial installation.
Q2: What are the insertion and return loss values?
A2: Typical insertion loss is 0.30 dB, max 0.50 dB; return loss ≥25 dB ensures stable high-speed transmission.
Q3: Which network speeds are supported?
A3: Supports 1G, 10G, 40G, and 100G Ethernet, optimized for OM3 multimode networks.
Q4: Will the 3.0mm jacket reduce cable density in racks?
A4: Slightly thicker than standard indoor cables, but provides mechanical protection while remaining compatible with most ODFs and racks.
Q5: What lengths are available?
A5: Standard lengths from 0.5m to 10m; custom lengths available upon request up to 30m.
