Fiber Optic Distribution Frame

The Fiber Optic Distribution Hub FDH48A is a high-density fiber optic distribution hub that can accommodate up to 48 fiber optic cables. It is a compact and rugged enclosure that is designed for indoor use. The FDH48A features a lockable door, impact-resistant construction, and weatherproof design.

Fiber Optic Distribution Hub FDH48A are designed to provide a high density wall-mountable solution for next generation fiber net- works, it is used as terminal equipment of fiber optical cable for fiber patching, Splicing, Fiber splitting and management. A fiber distribution hub (FDH) is an enclosure that houses and protects fiber optic cables and connectors. It is used to connect and manage fiber optic cables in telecommunications, data centers, and other networks.

● Product Name : Fiber Distribution Hub – FDH48A

● Size(WxHxD) : 450mm x 180mm x 150mm

● Weight : 3.2kg

● Protection Grade : IP30

● Maximum Capacity : 48 Splices+48 SC APC Adapters

● Working Temperature : -25℃~55℃(5 to 95% Relative Humidity)

Features:

● Wall-mountable installation design

● Integrated with splice cassette and cable management elements

● Manages large quantities of fiber with high density design

● Easy to maintain and extend fibers in the future

● Fiber bend radius control more than 40mm

● Maximum capacity up to 32 ports

● Efficient space for cable management and storage

● Dust and splash-proof level reaches IP30

● ABS cassette type PLC Splitter can be placed for distribution

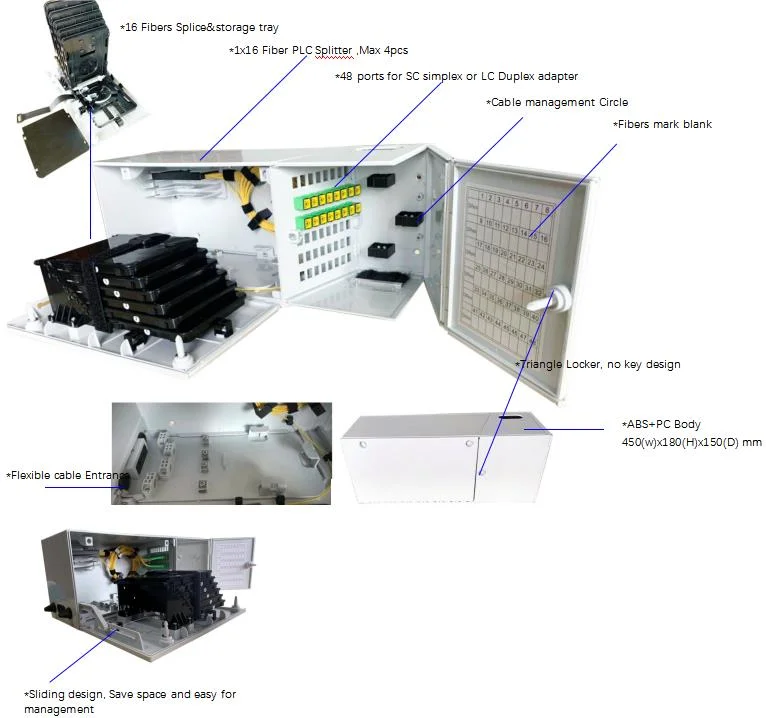

Fiber Distribution Hub Specification:

Advantage:

● Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system Possible scalability depending on the number of operators addressing the building

● Optical cable access left with lashing system

● Standardized dimensions, according to TELEFONICA recommendations

Application: FTTX Project, ODN system, Data center, PON system
