Adapters are installed in optical patch panel, wall or rack type, and optical sockets.
Adapters are pass-through sockets and are used for precise centering of connector tips, and for fixing connectors pressed against each other.
The adapter body does not have side flanges with screw holes. The flangeless adapter is fixed in the patch panel's socket using spring-loaded brackets located on the sides of the body. The front part of the body is wider, which provides a tight fixation of the adapter in the patch panel's sockets.

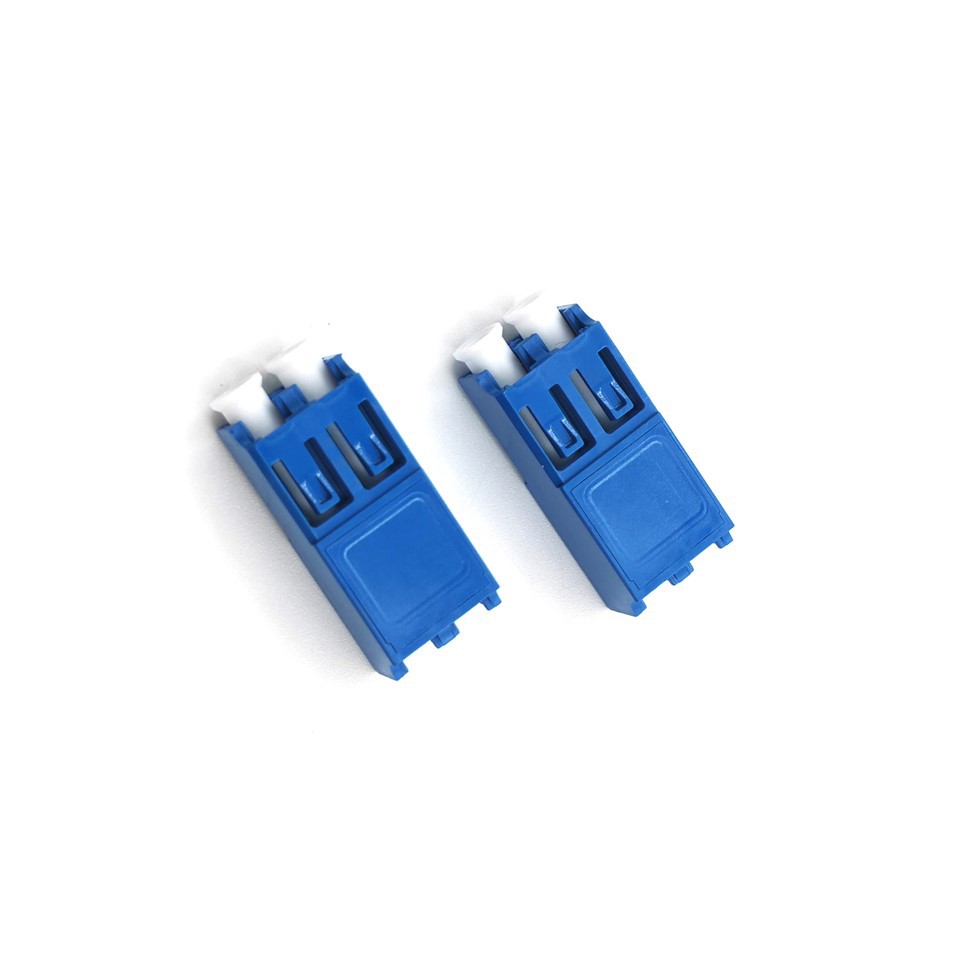

Adapters are available for multi-mode OM3 (aqua body) and single-mode (blue body) connectors. Duplex LC adapter connects four fibers terminated with LC connectors.
A distinctive feature of these adapters is the presence of a built-in dust shutter in the body on the front side.
The shutter automatically retracts when the patch cord is connected. Protects the interior from dust and dirt when closed.
Technical Requirements
1. The adapter complies with IEC 61754-20 and TIA-604-10 standards.
2. The adapter complies with IEC 61753-1 Category C.
3. The adapter complies with RoHS 2.0 and REACH requirements.
Technical Specifications
| Technical Specifications | |
| Insertion Loss (dB) | ≤0.2 |
| Mechanical Durability | After 500 insertion and removal cycles, insertion loss change is less than 0.2 dB |
| Sleeve Extraction Force | 1-2.5N |
| Sleeve Material | Ceramic |
| Operating Wavelength | 1310nm, 1550nm |
| Operating Temperature (°C) | -40°C to +85°C |
| Storage Temperature (°C) |
-40°C to +85°C |
Product Dimensions
