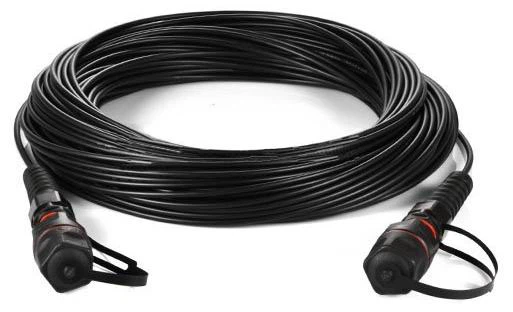

Customized IP67 Single Mode Waterproof Fiber Optic Patch Cable

Customized IP67 Single Mode Waterproof

Fiber Optic Patch Cable

Compliant with IEC standard for outdoor waterpoof condition, harsh environment, FTTH, and FTTA applications.

Waterproof Fiber Optic Patch Cable

IP67 LC to IP67 LC(Duplex), IP67 SC to IP67 SC(Simplex) Singlemode Waterproof fiber optic patch cables are designed to fit for outdoor applications. The strong PU jacket and armored structure can resist high temperature and suit to use in harsh environment. FOCC provides wide degree flexibility on waterproof fiber optical cables and various kinds of connect interfaces optional such as LC/SC/FC/ST/MPO connectors and so on.

IP67 LC to IP67 LC(Duplex), IP67 SC to IP67 SC(Simplex) singlmode waterproof fiber patch cable has the IP-LC and IP-SC connectors which are designed to exceed the requiremnets of ODVA, the connector meet IP66/67 environmental sealing ratings and are the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The IP-LC and IP-SC connectors are designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67 LC to IP67 LC(Duplex), IP67 SC to IP67 SC(Simplex) singlmode waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.


Technical Information

International Protection (IP) Rating

Features

●  High temperature stability, low insertion loss

●  Bump resistance - 4000 bumps @ 40g acceleration

●  Water proof, dust proof and corrosion resistant

●  Easy operation, reliable and cost-effective installation

●  Free fall resistance - 500 falls onto concrete from 1.2M height

The Application of Waterproof Fiber Optic Patch Cable

IP67 LC/SC Connectors : socket & plug

There are two types of IP67LC/SC waterproof connector: IP67LC plug (with standard duplex LC connectors) and IP67LC Socket (with duplex LC slot), the plug of one cable and the socket of the other cable can be connected to extend the cable length.

IP67 LC Component Details

In FOCC , IP67LC cable connector is the LC connector whose optical channels are based on the convention with duplex, singlemode APC. The aluminum frame has a spring-loaded push-pull locking mechanism and possesses the excellent cable retention because of an aramid yarn within the cable. When there is no connection by the automatically operated sealing-cover, both chassis and connector can protect against dirt and dust. In addition to the automatic sealing shutters, rubber outer sheath and steel, the automatic protective cap is fitted for using when unconnected. When connected or capped, the sealing connection environment amounts to IP67.
