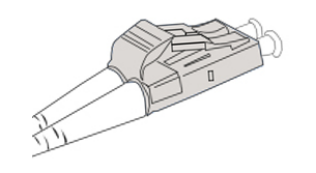

LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) OM4
Multimode Bend Insensitive Fiber Patch Cable
PRODUCT DESCRIPTION
v Bend insensitive cables enable tight bend radii and routing to minimize signal loss due to high traffic and/or densely packed patch panel routing installations.
LC UPC to LC UPC 50/125 OM4 Multimode Bend Insensitive Fiber Optic Cable
Bend Insensitive Fiber Optic Cable is less attenuation when bend or twisted compared with traditional fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It also can save more space for your high density cabling in data centers and other enterprise networks.
Features
1.Low Insertion Loss
2.High Return Loss
3.Good Repeatability
4.Good Exchangeability
5.High Temperature Stability
Applications
1.Optic-fiber Communication Systems
2.Optic-fiber Data Communications
3.Optic-fiber Access Networks
4.Optic-fiber CATV
5.LAN,Cabling system,ODF
6.Test Equipment
7.Optic-fiber Sensors
8.FTTX applications
Technical Information
Fiber Connector | LC UPC to LC UPC | Fiber Mode | MMF 50/125μm |
Fiber Type | Duplex | Fiber Jacket | 2.0mm, PVC |
Insertion Loss | ≤ 0.3dB | Wavelength | 850/1300nm |
Cladding Diameter | 125 ± 1 µm | Jacket Color | Aqua |
Minimum Bend Radius | 7.5mm | Compliants | RoSH, ISO9001 |
Operating temperature | -40 ~ 75°C | Storage temperature | -45~85°C |
Quality Certification
Quality and standards are the foundation of FOCC. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
FOCC has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Product Highlights
Smart & Reliable - Bendable Optical Fiber
Product Highlights
Bend Insensitive Fiber
v BIF Cable can be stapled and bent around corners without sacrificing performance.
7.5mm Minimum Bend Diameter
v The bend performance improves duct utilization, enabling smaller enclosures.
Zirconia Ceramic Ferrule
v Optimum IL and RL ensure stable signal transmission, protecting your network safety.
Bend Insensitive Fiber Optic Cable Structure
An unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.
Innovative Design for Smaller Denser Cabling
Standard fiber cable can be damaged when cabling in tight spaces and sharp corners. But BIF solves the problem and protects your cable's installation and running.
Packing & Labeling
Eco-Friendly Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labeled and marked by FOCC as default. Customized label or package solution are available on request.
