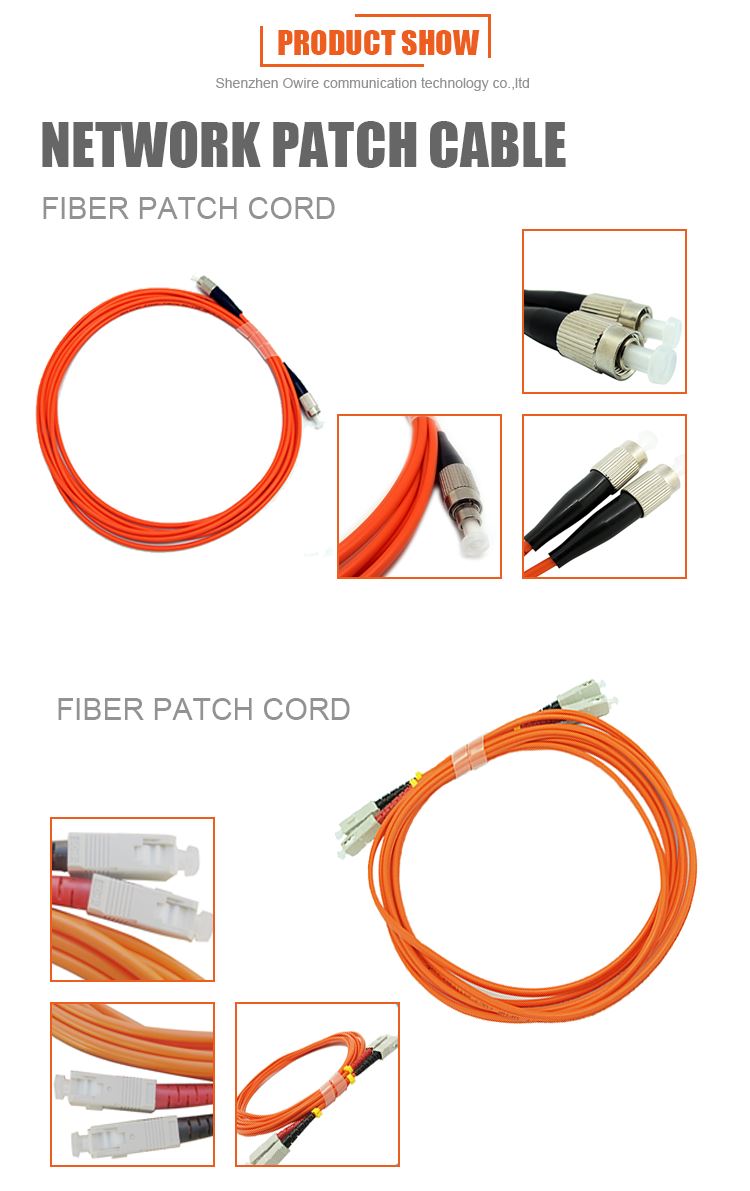

SC/LC Multi Mode50/125 Duplex 2.0mm 3.0mm Fiber Optic Jumper

high quality fc lc optical patch cord fc sc lc st sm mm dx fiber optical patch cord

SC/LC Multi Mode50/125 Duplex 2.0mm 3.0mm Fiber Optic Jumper

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
Single or multi mode is available
4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Available in 62.5/125 (OM1), 50/125 (OM2) and Laser Enhanced 50/125 (OM3) and 50/125 (OM4)
Each cable is individually tested, bagged and Labelled and supplied with a test report.
LC Fibre Optic Patch Lead Connector

Features :

• Low insertion loss, high return loss

• Small, light, high dense connection

• Standard exact plastic material

• High credibility and stability

• Good in repeatability and exchangeability

Applications :

• Local Area Network

• Wide Area Network

• CATV,LAN,MAN WAN Network

• FTTX System

• Test Instruments

Product Classification

General Specifications

Dimensions

Cable Assembly Length Range (m)	1 – 61
Cable Assembly Length Range (ft)	2 – 200
Diameter Over Jacket	1.6 mm | 0.063 in

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value

LC-LC multi-mode dual core fiber jumper (also known as optical fiber connector) refers to that both ends of the optical cable are installed with connector plug, and LC-LC multi-mode dual core optical fiber jumper is used to realize the active connection of optical path. Optical fiber patch cord / cable is similar to coaxial cable, while LC-LC multi-mode dual core fiber patch cord has no mesh shield. At the center is the glass core of light transmission. In multimode fiber, the diameter of the core is 50 μ m ~ 65 μ m, which is roughly the same as the thickness of human hair. The diameter of single-mode fiber core is 8 μ m ~ 10 μ M. The core is surrounded by a glass envelope with a lower refractive index than the core to keep the fiber in the core. On the outside is a thin plastic jacket to protect the envelope.

Frequently asked questions

Q1:How can I get your catalogue and price list?

A1:Please let us know your email or contact us from website directly for our catalogue and price list.

Q2:Can I negotiate the prices?

A2:Yes, we may consider discounts for multiple container load of mixed goods .

Q3:How much will the shipping cost be?

A3:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q4:Can you supply OEM products under our brand?

A4:Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

Q5: What if there is quality problem when we get the goods?

A5: If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
