High-Performance E2000/UPC OM4 Simplex LSZH Fiber Optic Pigtail

Welcome to buy the high-performance e2000/upc om4 simplex lszh fiber optic pigtail with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.

Manufacturer's Commitment：FOCC has over 10 years of precision manufacturing experience, operating three production bases and supported by more than 100 professional R&D and process engineers. With a monthly production capacity exceeding 1.5 million connectors, advanced automated manufacturing lines, and a full lifecycle quality control system, FOCC achieves a 98.5% first-pass yield rate and conducts more than 8 million end-face inspections annually.

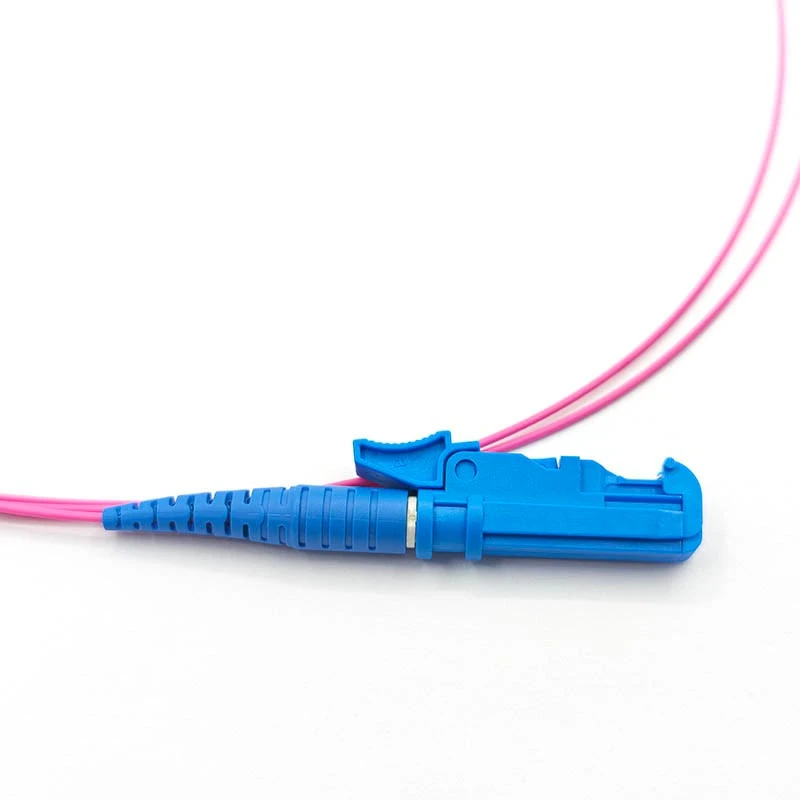

This E2000 UPC OM4 simplex LSZH violet 0.9 mm fiber optic pigtail (1 meter) is manufactured under strict factory-controlled processes and precision end-face polishing standards. It is specifically designed to meet the ultra-low insertion loss requirements of high-speed multimode networks, including 10GbE, 40GbE, 100GbE, and 400GbE applications.

To provide enterprise customers with maximum confidence and long-term operational reliability, FOCC offers up to a 15-year official quality warranty and 4-hour rapid technical response support for this product series.

E2000 UPC Connector Mechanical and Optical Design Architecture

The E2000 connector (also referred to as the LSH connector in certain international specifications) is designed and manufactured in full compliance with IEC 61754-15 and TIA-604-16 international standards.Its mechanical locking mechanism utilizes a push-pull bayonet-style design, enabling smooth insertion and removal while effectively preventing accidental disconnection caused by lateral pulling forces or vibration in high-density cabling environments.

The core optical component of the E2000 connector is a high-precision 1.25 mm zirconia ceramic ferrule. FOCC employs advanced Active Core Alignment (ACA) technology, using titanium inserts to precisely align the fiber core with the mechanical axis of the ferrule. This process minimizes eccentricity-induced insertion loss and ensures highly consistent optical performance.

The multimode polishing process utilizes Ultra Physical Contact (UPC) polishing technology. By tightly controlling ferrule end-face geometry, including radius of curvature, apex offset, and fiber protrusion/recession, the connector achieves a typical insertion loss of ≤0.15 dB and a return loss of ≥35 dB.

One of the most distinctive features of the E2000 connector is its integrated automatic spring-loaded metal shutter system. When the connector is disconnected, the shutter automatically closes and provides dual protection:

• Laser Safety Protection:During active network operation, the shutter completely blocks potentially hazardous invisible laser emissions from the ferrule end face, helping protect installation and maintenance personnel from accidental retinal exposure.
• Dust and Contamination Protection:The closed metal shutter isolates the ferrule end face from airborne dust particles, moisture, and oil contaminants. This significantly reduces the risk of end-face contamination and high-power optical burning, improving long-term network reliability and connector lifespan.

Performance Characteristics of OM4 Multimode Fiber and 0.9 mm Semi-Tight Buffer

This product utilizes laser-optimized OM4 graded-index multimode fiber with a standard 50/125 μm core/cladding diameter, fully compliant with ITU-T G.651 and ISO/IEC 11801 standards.

OM4 fiber is specifically optimized for 850 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) applications. At 850 nm, it provides an Effective Modal Bandwidth (EMB) of ≥4700 MHz·km, enabling transmission distances of up to:

• 550 meters at 10 Gb/s Ethernet
• 150 meters at 40 Gb/s and 100 Gb/s Ethernet backbone links

The fiber is protected by a 0.9 mm (900 μm) semi-tight buffer layer. For fusion-splicing pigtail applications, this semi-tight buffer construction offers several significant mechanical and installation advantages.

Micro-Bending Stress Isolation

The semi-tight buffer maintains a microscopic clearance between the buffer layer and the fiber coating. This design prevents external tensile, torsional, or thermal expansion stresses from being directly transferred to the optical fiber, reducing the risk of micro-bending loss.

As a result, the fiber maintains exceptionally low attenuation even when routed through tightly packed splice trays, distribution boxes, or termination enclosures.

Simplified Fiber Preparation

The semi-tight buffer material allows technicians to strip up to 100 mm of buffer coating smoothly using standard three-hole fiber stripping tools without damaging the primary coating layer.

This significantly improves splicing efficiency, reduces installation time, and minimizes the risk of fiber breakage during field termination.

Heather Violet (Magenta) Jacket Identification

According to the TIA-598-D fiber optic color-coding standard, Magenta (Heather Violet) is the designated identification color for OM4 multimode fiber systems.

This color coding enables network operators and technicians to quickly distinguish OM4 high-bandwidth infrastructure from OM3 aqua cabling and legacy OM1/OM2 orange systems, reducing the risk of incorrect patching and network performance degradation.

LSZH Jacket Material Science and Fire Safety Performance

In enclosed, high-density environments such as data centers, telecommunications rooms, and enterprise network facilities, cable fire performance is a critical safety consideration.

Traditional Polyvinyl Chloride (PVC) jackets release dense black smoke and toxic halogen-containing gases when exposed to fire or thermal decomposition. When these gases interact with moisture in the air, they form highly corrosive acids such as hydrochloric acid (HCl), which can severely damage electronic equipment, metallic connectors, and network infrastructure, resulting in secondary equipment failures and extended service interruptions.

This product utilizes a Low Smoke Zero Halogen (LSZH) thermoplastic flame-retardant jacket material throughout its construction.

Its fire-resistant and low-toxicity characteristics are achieved through the incorporation of approximately 50% inorganic metal hydroxide flame-retardant fillers, typically aluminum hydroxide (Al(OH)₃) or magnesium hydroxide (Mg(OH)₂).

During fire exposure, these compounds undergo an endothermic dehydration reaction:

2Al(OH)3→Al2O3+3H2O↑2Al(OH)_3 \rightarrow Al_2O_3 + 3H_2O \uparrow2Al(OH)3​→Al2​O3​+3H2​O↑

This reaction provides multiple fire-protection mechanisms:

• Absorbs substantial thermal energy from the combustion process.
• Lowers the local cable surface temperature.
• Releases water vapor that dilutes surrounding oxygen concentration.
• Forms a protective ceramic-like barrier layer on the cable surface.

Together, these mechanisms significantly slow flame propagation and help prevent fire spread along cable pathways, improving personnel safety, protecting critical infrastructure, and supporting compliance with modern data center fire-safety requirements.

Why Choose Our E2000 OM4 Fiber Optic Pigtail?

Telecom-Grade Low Insertion Loss

Designed for high-performance optical networks, this pigtail delivers a standard insertion loss of ≤0.20 dB, outperforming the industry average of 0.30 dB. Lower insertion loss helps maximize link power budgets and ensures stable, high-bandwidth signal transmission across critical network distances.

High-Security E2000 Connector Design

The E2000 connector features an integrated spring-loaded metal shutter that automatically closes when disconnected, eliminating the need for a separate dust cap. This advanced safety mechanism protects both personnel and optical interfaces, making it a preferred choice for mission-critical server rooms, medical equipment, defense networks, and other environments requiring stringent safety standards.

Laser-Optimized OM4 Multimode Fiber

Equipped with premium OM4 multimode fiber, this pigtail fully supports network transmission speeds up to 100 Gb/s. With an Effective Modal Bandwidth (EMB) of 4700 MHz·km at 850 nm, it provides excellent performance for high-speed data center, enterprise, and storage area network (SAN) applications.

LSZH Flame-Retardant Jacket

The Low Smoke Zero Halogen (LSZH) outer jacket enhances safety in enclosed environments. In the event of fire or excessive heat exposure, the cable emits minimal smoke and releases no toxic halogen gases. It complies with IEC 60332-1 flame-retardant requirements and RoHS environmental standards, helping protect both personnel and sensitive electronic equipment.

Easy-to-Splice 0.9 mm Tight-Buffered Construction

The 0.9 mm tight-buffered fiber design offers excellent stripping and handling characteristics, allowing technicians to perform fast, reliable fusion splicing with minimal risk of fiber damage. This makes it an ideal solution for installations inside fiber termination boxes, patch panels, optical distribution frames (ODFs), and telecommunications cabinets.

Detailed Technical Specifications

Optical Performance Parameters

Physical, Mechanical and Material Specifications

Environmental Reliability Specifications

Compliance Standards

This E2000 UPC OM4 LSZH Fiber Optic Pigtail is designed and manufactured in accordance with the following international standards:

• IEC 61754-15 (E2000 Connector Interface Standard)
• TIA-604-16 (FOCIS-16)
• IEC 61300 Series (Fiber Optic Interconnecting Devices Test Procedures)
• IEC 60793 (Optical Fiber Specifications)
• ISO/IEC 11801 (Generic Cabling for Customer Premises)
• TIA-598-D (Fiber Optic Cable Color Coding)
• IEC 60754-1 / IEC 60754-2 (Halogen-Free Requirements)
• IEC 61034-1 / IEC 61034-2 (Low Smoke Performance)
• UL94 V-0 (Flammability Classification)
• GR-326-CORE (Telcordia Reliability Requirements)
• RoHS Environmental Compliance

Frequently Asked Questions

1. What makes the E2000 connector safer than LC or SC connectors?

The E2000 connector features an integrated spring-loaded metal shutter that automatically closes when the connector is unplugged. This design helps prevent accidental exposure to invisible laser light while also protecting the ferrule end face from dust, moisture, and contamination. As a result, the connector delivers higher reliability and lower maintenance requirements in critical network environments.

2. Why choose an E2000 connector for high-performance optical networks?

E2000 connectors provide excellent optical stability, low insertion loss, and superior return loss performance. Their automatic protective shutter helps maintain clean end faces over time, making them ideal for telecom networks, data centers, railway communications, military systems, and other mission-critical applications.

3. What are the advantages of OM4 multimode fiber?

OM4 laser-optimized multimode fiber supports transmission speeds up to 100G Ethernet and provides an effective modal bandwidth (EMB) of 4700 MHz·km at 850 nm. It enables transmission distances of up to 550 m for 10G Ethernet and 150 m for 40G/100G Ethernet applications.

4. Why does FOCC use a 0.9 mm semi-tight buffered structure?

The semi-tight buffer design creates a small clearance between the fiber coating and the buffer layer, helping isolate external mechanical stress from the fiber core. This reduces micro-bending loss, improves long-term optical stability, and makes the pigtail easier to strip and prepare for fusion splicing.
