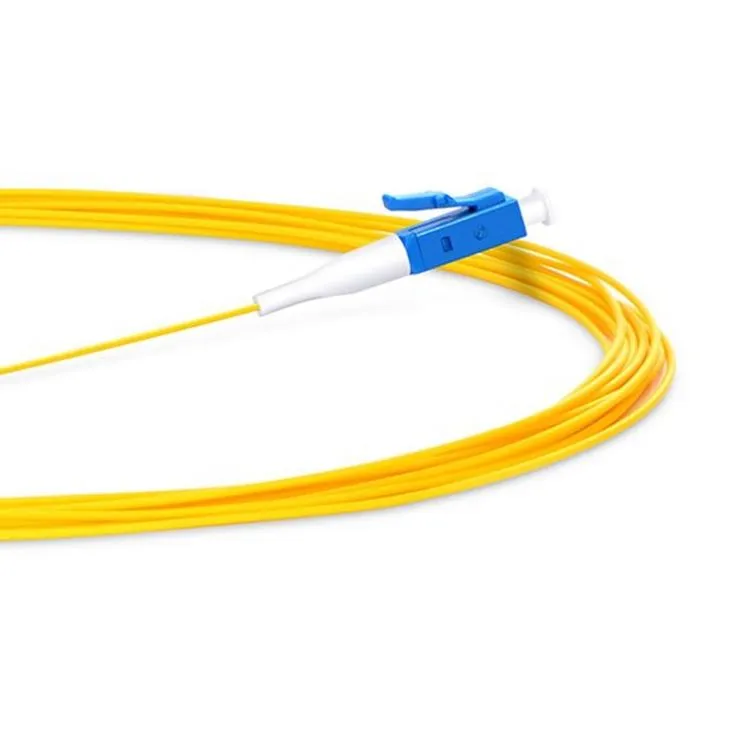

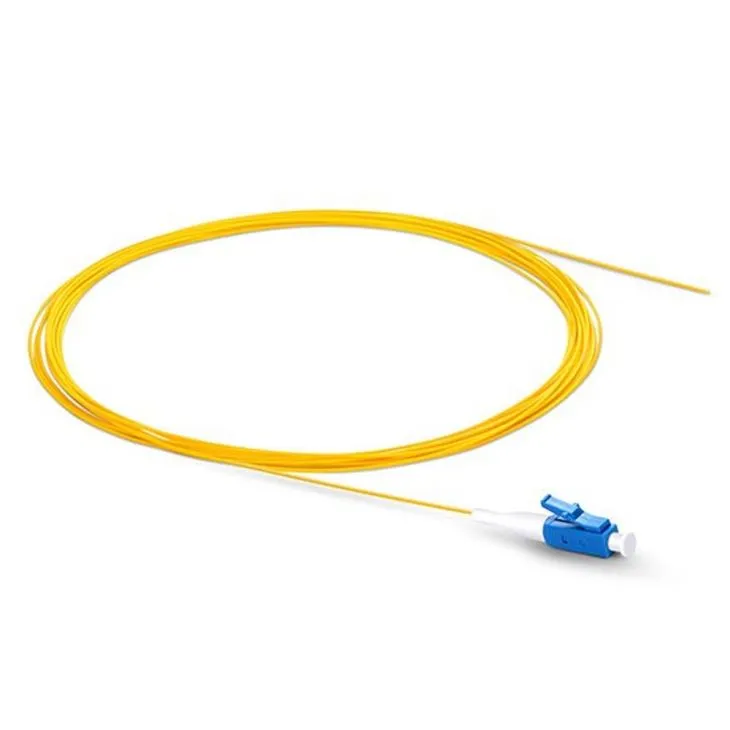

Simplex LC/UPC 9/125 Single Mode Fiber Optic Pigtail, 0.9 mm PVC Outer Jacket
A fiber pigtail is really a single, short, usually unbuffered, optical fiber which has an optical connector pre-installed on one end along with a period of exposed fiber in the other end. The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk. Splicing of pigtails to each fiber within the trunk “breaks out” the multi-fiber cable into its component fibers for connection to the end equipment
Product Specifications
| Connector A | LC | Connector B | Unterminated |
| Fiber Mode | OS2 9/125μm | Fiber Count | Simplex |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 30mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm | Durability | >1000 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
| Operating Temperature | —40～75℃ | Storage Temperature | —45～85℃ |
Quality and standards are the foundation of FOCC. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
FOCC has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
FOCC truly understands the value of performance to each fiber patch cables in whole line. Every cable FOCC provides must run through programming and an extensive series of platform diagnostic tests to prove its performance. In our test center, we care of every detail from staff to facilities—professionally trained staff and advanced test facilities, to ensure our customers to receive the cables with superior quality.
Professional Test Equipment-Our test program including: end-face inspection,3D interferometer test, single mode IL and RL testing, multimode IL and RL testing |  |
 |
Rigorous Test Process-Every cable will be cleaned to maintain end face free from contamination, avoiding affecting products' performance |
Product Highlights
Zirconia Ceramic Ferrule Optimum IL and RL. |  |
 | 0.9mm cable available for high density splicing applications. |
Tight buffer pigtail for ease of splicing. |  |
How to Strip Fiber Optic Pigtail with Tri-Hole Fiber Stripper
Tips:
• It is recommended to heat the pigtail appropriately before you strip the 0.9mm buffer.
• Only a short length (1-2cm) of the pigtail is suggested to be stripped in one action.
Two Important Methods for Fiber Optic Pigtail Splicing
Fiber optic pigtail assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing.
