Mpo Mtp Connector 24 Channel Return Loss Testing Machine Multi-mode

Mpo Mtp Connector 24 Channel Return Loss Testing Machine Multi-mode

It support 12 channel 24 channel multi-Mode MPO MTP patch cable insertion loss and return loss testing. support database data storage,and data report printing.

InquiryChat Now

  • Product Details

mpo mtp connector 24 channel Return loss Testing machine Multi-mode


-Built-in 1310/1550 two range wavelength

- Support multicore fiber testing 12 channel and 24 channel

- Record testing data with the computer and can be print

- Avoid winding cable during insertion loss return loss test


Inside light source1310/1550 nmstability of light source0.01 dB
channel number12/24 ChannelTesting linearity0.03dB
Insertion loss measurement range +5~-75 dBmTest the uncertainty0.03dB(+3~-65dBm)/0.3(-65~-75dBm)
Return loss test>70dBuncertainty of Return loss test0.5dB(0~-60dB)/1.0(-60-~-70dB)
The USB port4 USB Portcommunication portRS232/GPIB
working power supply110VAC/220VAC 50HZWorking temperature-10°~+40°
storage temperature-25°~+70°size300*340*160 mm

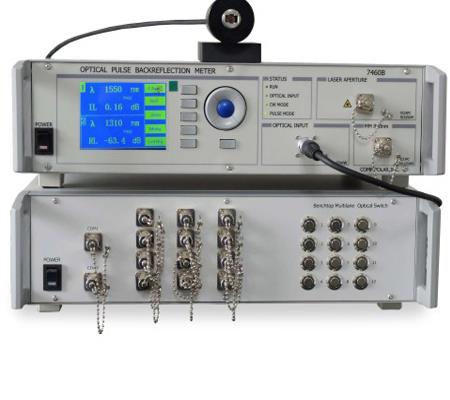

mpo mtp return loss tester.jpg

Welcome to buy the mpo mtp connector 24 channel return loss testing machine multi-mode with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.
