MTP Female To Female 12 Fibers OM3 50/125 Multimode Trunk Cable, Type B, Elite, Plenum (OFNP), Aqua

MTP Female To Female 12 Fibers OM3 50/125 Multimode Trunk Cable, Type B, Elite, Plenum (OFNP), Aqua

MTP Female to Female 12 Fibers OM3 50/125 Multimode Trunk Cable, Type B, Elite, Plenum (OFNP), Aqua PRODUCT DESCRIPTION FEATURES v The MTP Trunk Cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connection and high-density data center applications; The US...

InquiryChat Now

  • Product Details

MTP Female to Female 12 Fibers OM3 50/125

 Multimode Trunk Cable, Type B, Elite, Plenum (OFNP), Aqua



PRODUCT DESCRIPTION


FEATURES

The MTP Trunk Cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connection and high-density data center applications; The US Conec MTP connectors are fully compliant with the MPO standards.

MTP Plenum Trunk Cables OM3 50125235.pngMTP Plenum Trunk Cables OM3 50125236.pngMTP Plenum Trunk Cables OM3 50125237.png

MTP Female to MTP Female OM3 Multimode Trunk Cable

MTP Plenum Trunk Cables OM3 50125292.png

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
0.35dB IL, MTP Female to MTP Female connector and 3.0mm Plenum (OFNP) bunch cable is designed for 40G/100G direct connection and high-density data center applications.

Technical Information

Connector A

MTP Female (pinless)

Connector B

MTP Female (pinless)

Fiber Mode

OM3 50/125μm

Wavelength

850/1300nm

Polish Type

UPC to UPC

Minimum Bend Radius

7.5mm

Insertion Loss

0.35dB Max (0.15dB Typ.)

Return Loss

20dB

Attenuation at 850nm

2.3dB/km

Attenuation at 1300nm

0.6dB/km

Jacket OD

3.0mm

Cable Jacket

Plenum (OFNP)

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Storage Temperature

-40°C to +85°C

Operating Temperature

-10°C to +70°C





Quality Certification

Quality and standards are the foundation of FOCC. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

FOCC has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

MTP Plenum Trunk Cables OM3 501251613.png



Range of application

Direct Connection for 40-Gbps Connectivity with MTP Trunk Cable

How to connect two switches with 40G SR4 transceivers directly? A type B female MTP to female MTP is required. Figure 1 shows two switches connected by a MTP female cable.


Item No.

Description

1

Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Transceiver

2

1m (3ft) MTP Female to Female 12 Fibers OM3 Trunk Cable, Type B

3

Generic Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO Transceiver for MMF

4

S5850-48S6Q (48*10GE+6*40GE) High Performance Data Center Switch



Interconnect for 10GBASE-SR SFP+ Optics with MTP Cable

Want to achieve high performance fiber networkings with 10G SFP+ Optics? Figure 2 shows the interconnect of 10GBASE-SR SFP+ Optics transceivers connected by MTP cabling.


Item No.

Description

1

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver

2

1m (3ft) MTP Male to 6 LC UPC Duplex 12 Fibers OM3 Harness Cable

3

CLE-BOX Fiber Optic Cassette Cleaner for LC/SC/FC/ST/MU/D4/DIN Connector

4

Fiber Adapter Panel with 12 MTP(12/24F) Key-up/Key-down Adapters, Horizontal

5

1U Detachable Horizontal Cable Management Panel with D-ring & Lacing Bar

6

1m (3ft) MTP Female to Female 12 Fibers OM3 Trunk Cable, Type B

7

Generic Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver

8

S5850-48S6Q (48*10GE+6*40GE) High Performance Data Center Switch



Make MTP Trunk Cable Your Choice for High Density Fiber Networks

8 Fibers used for 40G QSFP+ SR4 direct connect applications

Streamline network cabling in high-density data centers

Allow for increased capacity and ease of cable management

MTP Plenum Trunk Cables OM3 501254485.png



Detail Highlights



0.35dB Ultra Low IL+ US Conec Connector

US Conec MTP connector features the industry’s highest-precision thermoplastic ferrule, designed to 0.35dB Max. IL.

MTP Plenum Trunk Cables OM3 501254663.png

.

Corning ClearCurve OM3 Fiber

Corning ClearCurve multimode fiber is designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber.

MTP Plenum Trunk Cables OM3 501254870.png

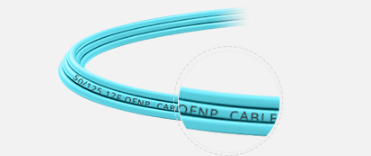

Plenum Rated Outer Jacket

Plenum cables are purposefully built with jacket materials that give off low amounts of smoke and retard flames spread, making sure the cables are safe and heat-resistant.

MTP Plenum Trunk Cables OM3 501255070.png

7.5mm Minimum Bend Radius

With BIF, our cable is designed for improved bend performance in reduced-radius applications such as residential or office environments which have less bend sensitivity.

MTP Plenum Trunk Cables OM3 501255268.png



Test Assured Program

3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.

MTP Plenum Trunk Cables OM3 501255565.png

Packing & Labeling

Eco-Friendly Packaging & Labeling



This easy to take and well-protected fiber optical cable package has been labeled and marked by FOCC as default. Customized label or package solution are available on request.

MTP Plenum Trunk Cables OM3 501255797.png


Questions & Answers



Q:I wonder what's the difference between OFNP and LSZH cable jacket?

A:OFNP (plenum) have the highest rated fire retardant where it emits little smoke during combustion, LSZH(Low Smoke Zero Halogen) cable jacket is composed of thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat, eg. flame.



Q:Do you offer MTP fiber optic cable with BIF?

AYes. We offer MTP fiber optic cable made with Corning ClearCurve bend insensitive fiber. For multimode, its minimum bend radius is 7.5mm; for singlemode, it's 10mm.



Q:Is this APC or UPC? I know the green usually implies angle polished, but I have a few other cables that look the same as this picture with just a 90 degree flat polish.

A:For singlemode fiber it has APC polish with a 8 degree angle, multimode fiber is UPC polish with just a 90 degree flat.




Welcome to buy the mtp female to female 12 fibers om3 50/125 multimode trunk cable, type b, elite, plenum (ofnp), aqua with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.
