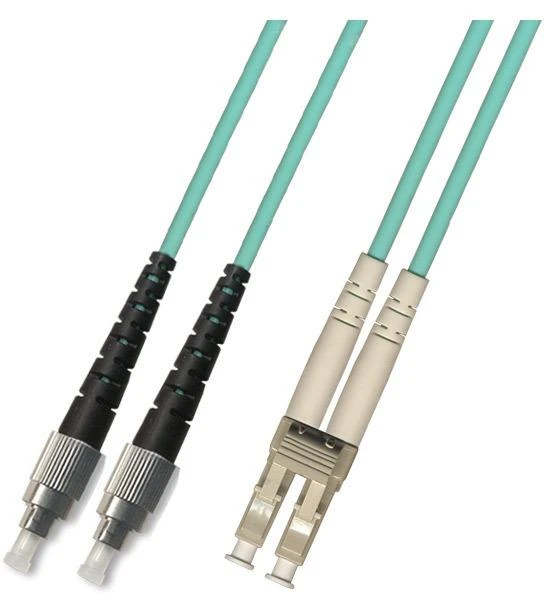

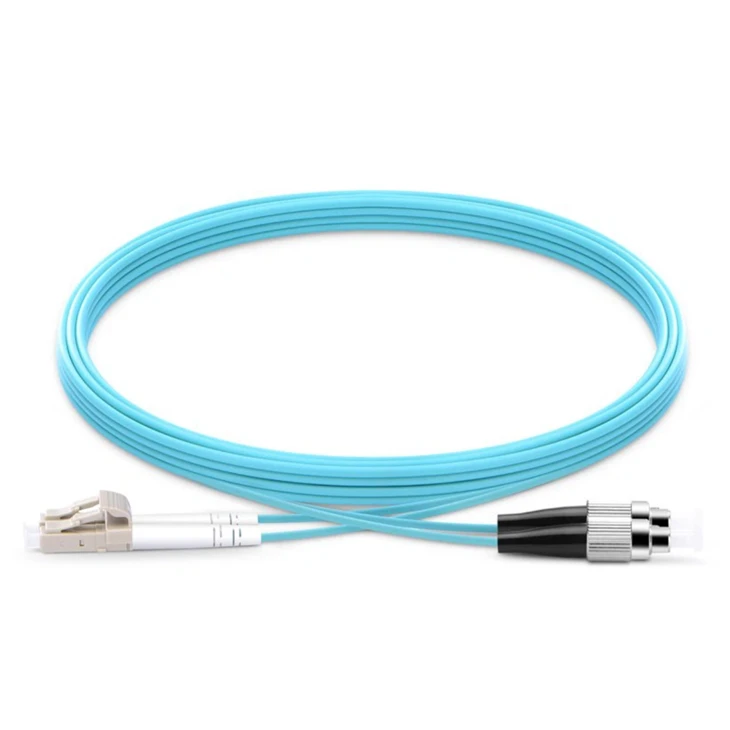

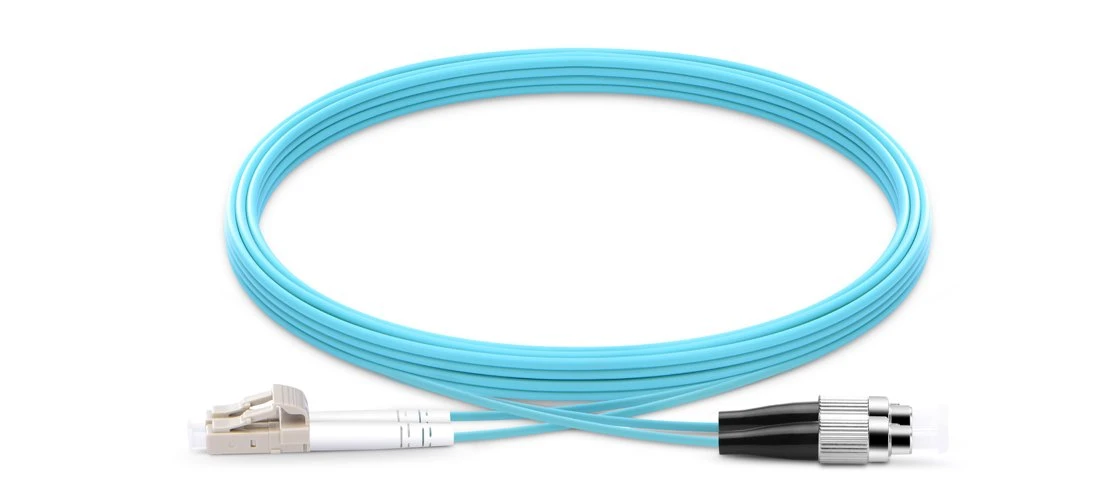

LC UPC to FC UPC Simplex or Duplex 2.0mm PVC or LSZH 10G OM3 Multimode Fiber Optic Patchcord

● Technical Description: Fiber optic cables are used in applications where distanceand speed are at a premium. Compared to coaxial and twisted pair cables...

InquiryChat Now

  • Product Details

● Technical Description:
Fiber optic cables are used in applications where distanceand speed are at a premium. Compared to coaxial and twisted pair cables, fiberoptic cables have the capability to transmit and receive data at vastly greaterdistances and speeds. FOCC's 10Gb aqua fiber optic cables deliver blazing fastspeeds that are optimized for 10 gigabit Ethernet applications. Our 10Gb aquafiber cables are backwards compatible with existing network equipment and arefully tested for performance and reliability. The fiber optic patch cords aremainly used on patch panel or for the connection between outlets and terminalequipment. The quality of connectors and fibers are mainly determined by theinsertion loss and return loss. The LC to LC multimode fiber optic cable is oneof the most popular connections used in fiber optic cable connections due toits high bandwidth, distance, andimage001(001).jpg cost-efficiency. FOCC's 10Gb aqua (OM3) fiberoptic cable uses laser optimized 50/125um multimode fiber for 10Gb Ethernetapplications as defined by the ISO 11801 standard. Copper is becoming obsoleteas Fiber Optics are taking over. Each fiber optic patch cable is fully testedwith the test results labeled on each individual cable. This strict qualitycheck gives you a 100% worry-free experience when patching up networks.


● Features:
► Strong, flexible and easy to install;
► Ideal for indoor applications, thanksto the LSZH sheath;
► Great mechanic resistance;
► Totally dielectric;
► Different cores are optional.


● More Jumper We Can Provide:




● Application:
► Telecommunication networks;
► Data processing networks;
► Metro applications;
► Military, medical and industrial.


●Construction:

Fiber count

Simplex (1-fiber) tight buffered
Duplex (2-fiber) jacketed zipcord

Cable jacket ratings

Riser (OFNR)
Low Smoke Zero Halogen (LSZH) per: IEC
60332-1-2, IEC 60332-3-24, IEC 60754-1,
IEC 60754-2, IEC 61034-2

Fiber types

Single-mode: OS2 (G.652.D) 9/125
LWP Bend-Insensitive (G.657.A2/B2)

Connector types end ‘A’

Simplex or Duplex LC/APC, SC/APC

Connector type end ‘B’

Simplex or Duplex LC/APC, SC/APC

Jacket color

OS2 (G.652.D): Yellow
OS2 (G.657.A2/B2): Yellow

Cable outside diameter (OD)

1.6mm duplex and simplex
3mm duplex and simplex
900 micron tight buffered

Connector cable retention

50N @ 0℃
19.4N @ 90℃

Connector durability

500 cycles

Bend radius, minimum

1.6mm: 16mm
3mm: 29mm
900 micron: 9mm


● Fiber Parameter:

Items

Unit

Specification

Cladding Non-Circularity

%

≤2.0

Coating Diameter

μm

245±10

Cladding-Coating Concentricity Error

μm

≤1.0

Core Diameter

μm

62.5±2.5

Cladding Diameter

μm

125±1.0


Cable Material

Outer sheath

LSZH (Aqua RAL 6027)

Outer sheath of single fiber

LSZH (Aqua RAL 6027)

Secondary sheath of single fiber

Nylon TIGHT

Strength member

Aramid yarns

Fiber Type

MM‐50/125

Connector Type

LC-LC


● Certification and Compliance:

RoHS

Directive on Restriction of Hazardous Substances

GR-326-CORE

Generic Requirements for Single-mode Optical Connectors and Jumper Assemblies. Optical Fiber Cabling

TIA/EIA-568-C.3

Components Standards

EIA/TIA-604

Fiber Optic Connector Intermateability Standard

UL 94

Our Third Party Tests for Flammability of Plastic Materials for Parts in Devices and appliances


● FOCCOptical Cable Workshop:



● We doalso have those products for assembly bellow:
We as quality professional manufacturer leading of Fiber Optic ProductslikeFiber Optic Cable,FiberOptic Patch Cords,Fiber Optic Connector,FiberOptic Attenuators,Fiber Optic PLC Splitters,FiberOptic Termination Boxesand so on, more details pleasegive us a contact freely and we try our best to supporting. Thank you!


Welcome to buy the lc upc to fc upc simplex or duplex 2.0mm pvc or lszh 10g om3 multimode fiber optic patchcord with our factory. As one of the leading manufacturers and suppliers in China, we also welcome the customized orders. Consult the price and the quotation with us now.
